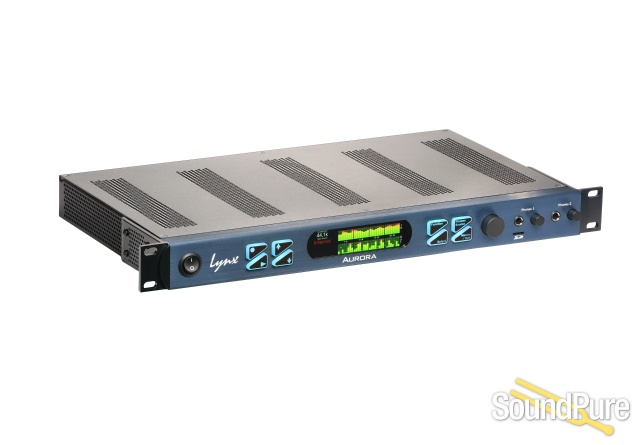

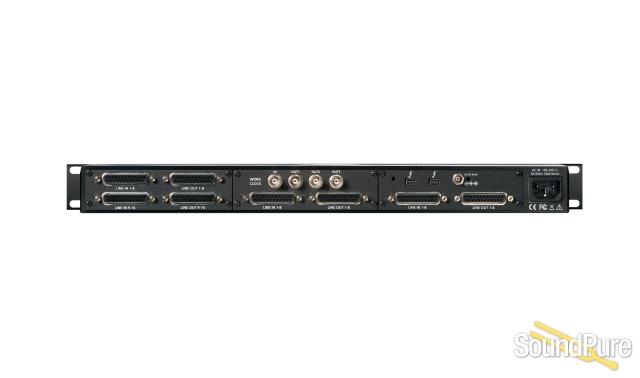

Lynx has impressively packed 32 channels of their new mastering-grade A/D and D/A converter quality into a single 19" Dante interface for both Mac and PC systems with the Aurora(n) 32 Dante!
$6,539.00
Retail: $6,849.00
The Lynx Aurora(n) is a profound reimagining of their original Aurora converters, which have been one of THE most trusted converters in professional studios for the past decade. The new units feature upgraded A/D and D/A converters utilizing the same technology that led the Hilo to the front of the pack. With modular connectivity via Lynx's existing (and expanding) selection of L-Slot cards you don't have to worry about these units becoming obsolete like that old firewire interface you used 5 years ago. Aurora(n)'s come in 8, 16, 24 and 32 channel varieties and are upgradable to add mic preamps, analog summing and additional digital I/O.
In this video, Sound Pure Pro Audio specialists Marc Kuzio and Chuck Giardino introduce the Lynx Aurora(n) Series of converters. This new generation of Aurora converters has blown us away with its level of detail, functionality, and ease of installation. It can also be used seamlessly with the previous generation of Lynx Auroras.
For the first time Lynx introduces a 24 and a 32 channel model along with all new 8 and 16 channel models. Aurora(n) significantly improves upon the spectacular performance and specifications the world has come to expect from the well-regarded Lynx Aurora line – each in a single rack-space. Providing an even greater level of wide-open, uncompressed and unequalized audio for studios, mastering facilities, remote recording, broadcast, live performance and production installations, these Aurora(n) converters set a new standard in analog to digital and digital to analog conversion. Leveraging technology that was previously reserved for the Lynx Hilo combined with the latest FPGA processors, the Aurora(n) achieves the pinnacle of transparency and low distortion and noise.
The Aurora’s future-proof design is expanded in the Aurora(n). New enhancements and capabilities will be made available through firmware upgrades. LSlot expansion slots allow for a wide array of current connectivity options to include Thunderbolt, Dante, ProTools|HD, USB and future formats. Expandable audio I/O modules are being developed to include pre amp, analog summing, digital I/O (AES3 + ADAT) which will be available in 2017. This makes for an Aurora(n) that will perform exceptionally for you now and remain innovative well into the future.
Also added to the line are two audiophile-grade headphone outs with independent volume control. A 480 X 128 TFT LCD display provides immediate access to all levels and functions – also configurable for future functionality.
Lynx Studio Technology, Inc. is a debt-free, privately held corporation that designs and manufactures professional, computer related audio products. The company was formed by a team of engineers previously associated with industry-leading digital audio companies with the goal of utilizing cutting-edge technology to create the highest quality products at a good value to the customer. The Lynx team is focused on "linking" the professional audio world with computers by utilizing their many years of experience in both hardware design and device driver coding. This complementary expertise is borne out in reliable products that not only have great specifications, but are also shipped with extremely stable and well-tested drivers. Support for Windows 95/98/ME/NT/2000/XP and Macintosh platforms are standard for most products. With the ability to support multiple platforms, buses, and operating systems Lynx plans to supply products to a variety of audio markets and applications such as audio production, delivery, and testing for recording studios, project studios, post production studios, home studios, and live concert settings. Lynx supports the retail market with a standard product line through its dealers and distributors. Lynx also supports OEM?s for larger quantities and custom designs. For information regarding retail and OEM sales please contact us at:
Line In (includes A/D Conversion)
THD+N: ‐113dB @1kHz, ‐1dBFS, 20kHz filter, +20dBu trim
Dynamic range: 119dB, A‐weighted, ‐60dBFS signal method
Frequency response: ±0.010dB, 20–20kHz
Crosstalk: ‐130dB maximum @ 1kHz, ‐1dBFS signal
Common mode rejection: greater than 80dB
Full‐scale trim settings: +6dBV, 20dBu
Line Out (includes D/A Conversion)
THD+N: ‐108dB @1kHz, ‐1dBFS, 20kHz filter, +20 dBu trim
Dynamic range: 120dB, A‐weighted, ‐60dBFS signal method
Frequency response: ±0.025dB, 20–20kHz
Crosstalk: ‐130dB maximum @ 1kHz, ‐1dBFS signal
Full‐scale trim settings: +6dBV, 20dBu
Headphone Out (includes D/A Conversion)
THD+N: ‐107dB @1kHz, ‐1dBFS, 20kHz filter, volume at max
Dynamic range: 120dB, A‐weighted, ‐60dBFS signal method
Frequency response: ±0.025dB, 20–20kHz
Crosstalk: ‐120dB maximum @ 1kHz, ‐1dBFS signal
Output level: 18.4dBu maximum
