- Front Panel
-
Decay, Pre-Delay, Mix, Tone, Param 1 (Assignable), Param 2 (Assignable), Mod
- Additional Parameters
-
Low End, Mid, Size
Hand crafted, studio-class reverb algorithms deliver lush, gorgeous, and musically inspiring reverb experiences
- Twelve reverb machines to choose from
-
Room, Hall, Plate, Spring, Swell, Bloom, Cloud, Chorale, Shimmer, Magneto, Nonlinear, Reflections
- Seven front-panel tone shaping knobs
-
Decay, Pre-Delay, Mix, Tone, Mod, Param 1, Param 2 (Param knobs assignable per preset)
Additional menu parameters allow for easy customization of reverb sounds
300 easily accessible and namable presets
Press-and-hold Infinite Sustain and Freeze functions, saveable per preset
Spillover and Reverb Persist modes, saveable per preset
Selectable Speaker Cabinet emulation for direct-to-PA gigs or recording applications
Presets, Expression Pedal Control, Cab Filter, Assignable Knobs, and more.
Three rugged metal footswitchesfor preset selection and effect bypass
LED display for preset info, reverb decay time, and extended parameter control
Multi-color preset LEDs (green for active preset, amber for edited preset)
Full MIDI implementationallows extended control for those with more complex rigs
Sturdy and lightweight light blue anodized aluminum chassis, with laser-etched artwork
Durable black anodized aluminum knobs

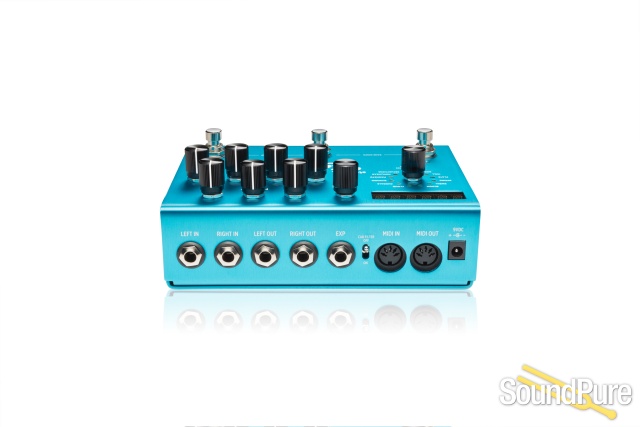

Studio-grade audio input and output jacks
Stereo input and output
Expression pedal input with selectable control over any knob or combination of knobs, saveable per preset (also configurable as external tap input)
MIDI input and output
Included 9V center-negative power supply (300mA minimum required)
Analog dry pathfor a zero latency dry signal that is never converted to digital
Premium analog front end and output section
Ultra low noise, high performance24-bit 96kHz A/D and D/A converters
115dBtypical signal to noise at 50% wet mix (120dbat 100% dry mix,109dBat 100% wet mix)
20Hz to 20kHz frequency response
+8dBu maximum input level easily handles instrument and line signals
Super high performance DSP in a compact form factor
32-bitfloating point processing
333MHz SIMD SHARC processor core, capable of 2.4 Gigaflops peak performance
True Bypass (electromechanical relay switching)
High quality, tranparent Analog Buffered Bypass mode
+/- 3dB Boost/Cut, saveable per preset
Optional Kill Dry mode mutes dry signal, for use in parallel effects loops
- Dimensions
-
6.75" (171mm) wide, 5.1" (130mm) deep
Designed and Built in the USA
