- Type
-
Dynamic

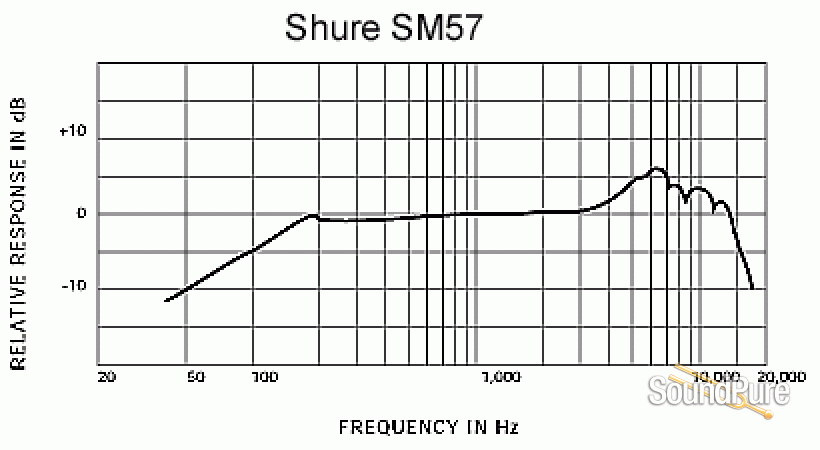

- Frequency Response
-
40 to 15,000 Hz
- Polar Pattern
-
Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency.
- Sensitivity (at 1,000 Hz)
-
Open Circuit Voltage: -56.0 dBV/Pa* (1.6 mV)
- Sensitivity (at 1,000 Hz)
-
*(1 Pa = 94 dB SPL)
- Impedance
-
Rated impedance is 150 ohms (310 ohms actual) for connection to microphone inputs rated low impedance
- Polarity
-
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
- Connector
-
Three-pin professional audio connector (male XLR type)
- Case
-
Dark gray, enamel-painted, die-cast steel with a polycarbonate grille and a stainless steel screen
- Dimensions
-
See User Guide
- Net Weight (without cable)
-
284 grams (10 oz)
