Sound Pure's Take
From Lynx Studio Technology

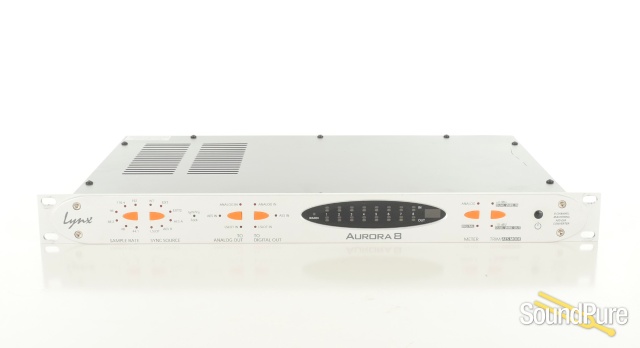

The Aurora™ line of digital audio converters from Lynx Studio Technology offers unprecedented audio quality and control in single-rack space eight and sixteen channel models. The Aurora 8™ and Aurora 16™ feature 192 kHz analog to digital and digital to analog conversion with front panel control of all routing and sample rate options. Extended functions in Aurora are accessible via computer with the Lynx AES16 or by infrared using compatible laptops and handheld Pocket PCs. The rear panel has Clock and MIDI In and Out connectors and an LSlot bay, for the optional use of other audio interfaces.
Several interfaces allow Aurora to be used in a number of different configurations. LT-HD allows Aurora to be recognized by and controlled from a ProTools|HD® system. FireWire access is easy using the LT-FW. 16 channels of ADAT Lightpipe I/O is made available with the LT-ADAT. LT-MADI allows up to four Aurora converters to send and receive up to 64 MADI channels. The LT-USB is a USB 2.0 device for up to 16 I/O channels. And Lynx AES16 and AES16e allow interface with a wide range of Windows and Macintosh computers.
Aurora converters are preconfigured for three voltages. Aurora 115 volt models are available in the US, Canada, Mexico and Brazil. The 100 volt models are available in Japan only. 230 volt units are available throughout the rest of the world through authorized distributors and retailers.
- Simultaneous 8 Channel Analog I/O and 8 Channel AES/EBU I/O
- 24 Bit / 192 kHz Mastering Quality A/D and D/A Conversion
- 192 kHz AES/EBU I/O Supporting Single and Dual Wire Modes
- Single Rack Space Configuration
- Extensive Remote Control Capability via Lynx AES16, IrDA and MIDI
- On-board 16 Channel Digital Mixer Provides Flexible I/O Routing
- Word clock I/O with Lynx SynchroLock™ Sample Clock Technology
- Digital I/O DB-25 connectors follow Yamaha pinout protocol
- Analog I/O DB-25 connectors follow Tascam pinout protocol
- RoHS compliant
- Available in 100V, 115V and 230V models
LYNX AURORA 16 AND AURORA 8 SPECIFICATIONS
ANALOG I/O
Aurora 8 Eight inputs and eight outputs
Aurora 16 Sixteen inputs and sixteen outputs
Type Electronically balanced or unbalanced
Level +4 dBu nominal/ +20 dBu max, or -10 dBv nominal / +6 dBv max
- Input Impedance Balanced mode
- 24k Ω
- Unbalanced mode
- 12k Ω
- Output Impedance Balanced mode
- 100 Ω
- Unbalanced mode
- 50 Ω
Output Drive 600 Ω impedance, 0.2 µF capacitance
A/D and D/A Type 24-bit multi-level, delta sigma
ANALOG IN PERFORMANCE
Frequency Response 20Hz - 20kHz, +0/-0.1 dB
Dynamic Range 117 dB, A-weighted
Channel Crosstalk -120 dB maximum, 1 kHz signal, -1 dBFS
THD + N -108 dB (0.0004%)@-1DBFS
104 db (0.0006%)@-6DBFS
1 kHz signal, 22Hz-22kHz BW
ANALOG OUT PERFORMANCE
Frequency Response 20Hz - 20kHz, +0/-0.1 dB
Dynamic range 117 dB, A-weighted
Channel crosstalk -120 dB maximum, 1 kHz signal, -1 dBFS
THD + N -107 dB (0.00045%)@-1DBFS
106 dB (0.00050%)@-6DBFS
1 kHz signal, 22 Hz-22kHz BW
DIGITAL I/O
- Number/Type Aurora 8
- 8 inputs and 8 outputs
- Aurora 16
- 16 inputs and 16 outputs
24 bit AES/EBU format, transformer coupled
- Channels Aurora 8
- * in/out in single wire mode
4 in/out in dual wire mode
- Aurora 16
- 16 in/out in single wire mode
8 in/out in dual wire mode
Sample Rates All standard rates and variable rates up to
192 kHZ in both single-wire and dual-wire modes
ON-BOARD DIGITAL MIXER (VIA AES16/AES16e)
Type Hardware based, low latency
Routing Ability to route any input to any or multiple outputs
Mixing Up to four input or playback signals mixed to any
output, 40-bit precision
Status Peak levels to -114dB on all inputs and outputs
CONNECTIONS
Digital I/O Ports 25-pin female D-sub connectors
- Port A
- channels 1-8 I/O
- PortB
- channels 9-16 I/O (aurora 16 only)
Yamaha pinout standard
Analog I/O Ports 25-pin female D-sub connectors
Analog in 1-8
Analog in 9-16 (Aurora 16 only)
Analog out 1-8
Analog out 9-16 (Aurora 16 only)
Tascam Pinout standard
External Clock 75-ohm BNC word clock input and output
MIDI One input and one output, standard opto-isolated
5-pin female DIN connecters
REMOTE CONTROL OPTIONS
Function Controls all I/O, levels, monitoring, routing and setting recall
- Method AES16-AES16e
- with PC or Mac IrDA: For compatible Pocket
PCs and laptops
- MIDI
- Selected MIDI devices
GENERAL
AC Power 110/115/230 VAC, 70 watts
Size 1.75" H x 19"W x 9"D
Shipping Weight 12lbs
Certifications CE and FCC Class B EMI, CE Product Safety
LSLOT™ EXPANSION PORT
Compatibility Supports Lynx Lslot expansion cards
Channels Up to 16 input and 16 output simultaneously at up to
192 kHz sample rate
OPTIONAL INTERFACE CARDS FOR LSLOT
LT-ADAT Provides ADAT Optical I/O
LT-HD For ProTools/HD/Native
LT-FW Provides up to 16 channels via FireWire 400
LT-MADI Provides up to 64 MADI I/O channels
LT-USB Provides up to 16 I/O channels, USB 2.0
