Great River Electronics MAQ-2NV Mastering EQ  From Great River

With added improvements to the circuitry for greater dynamic range, openness, and recallability, Great River's vintage style stereo EQ just got even better! A powerhouse for near any solution, the MAQ-2NV is a favorite on mix bus where its rich tone and pristine filters help shape and transform your mixes into true, polished "songs".

Great River Electronics

$4,350.00

Retail:  $5,665.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 24 - 48 hours after order processed.
Payments as low as $98/mo.

Want a lower price?
Call or email us!
888-528-9703
sales@soundpure.com

Manufacturer's Description from Great River

The MAQ-2NV is a stereo mastering equalizer based on the much-respected EQ-2NV. This two-rack-space digitally controlled analog parametric EQ offers similar topology to vintage 1081/1083 models, but with welcome improvements. Newly designed Class-A discrete single-ended amplifiers and true inductor/capacitor (L/C) circuitry add greater clarity and dynamic range to the musicality of the vintage-era models. The MAQ-2NV also has a discrete high-current Class-A balanced output stage.

Built to satisfy personal requests from mastering engineers who have heard the EQ-2NV, it features extended high and low frequency ranges, EQ gain switches, linkable channel control, and very low frequency high pass filters. Each channel’s four EQ band gain switches range in ½ dB steps from 0 to +/-3dB, and 1dB steps from +/-3 to +/- 8dB, and each band has separate pushbutton bypass switches. There are Left and Right channel bypass switches, the channel high pass filter frequencies are 15, 20, 25, 32, 40, and 50 Hz, and the Link switch sets both channels from the left channel controls for identical EQ curves.

As in the EQ-2NV, the front panel input selector / sensitivity switch offers the option of using the signal from the MAQ-2NV's transformer-coupled line input (ranging from +8dbm to -20dbm), or the patched signal from an NV preamp or other device.

Great River Electronics

About Manufacturer

Great River Electronics Inc. designs, manufactures, and markets superior quality professional audio products that are built to perform and capture your sound with integrity, character, and accuracy. The company has an experience base in excess of twenty years in analog and digital domains of audio processing. In addition, the company also designs industrial control systems used in commercial applications. Great River Electronics Inc. is located just southeast of the capital city St. Paul, Minnesota. Dan Kennedy, co-founder of Great River Electronics Inc., began designing microphone preamplifiers to solve noise problems associated with recording orchestral music using ribbon microphones. Intelligence, perseverance, and passion yielded product designs that are supremely quiet, clearly transparent, and extremely musical across all musical genres and tracking formats. The combination of crystal clear high-end coupled with tight, solid low-end result in precise, full sounds that realize their natural sonic positions within any mix. In addition, Dan has designed an equalizer, EQ-2NV and EQ-1NV, to complement the NV Series preamplifiers or to function as a standalone equalizer. The design philosophy at Great River Electronics Inc. has always been to utilize the minimum circuitry necessary to provide maximum sonic performance. Legendary Jensen and Sowter transformers optimized for Great River Electronics Inc. are used in all microphone preamplifiers. In addition, all units are equipped with gold plated switch contacts, operate on externally switched 110 or 220 volts, and have a standard two-year warranty with registration. These preamplifiers are widely used internationally in professional recording studios, digital project studios, and road recording rigs. The units are designed as perfect front-end additions to digital audio workstations (DAWs). Two design types of preamplifiers are currently available - Original MP Series, the clean series, and the newly developed NV Series, the vintage sound series. The Original MP Series, the MP-2 and the MP-4, are two channel and four channel units that offer the most pristine, definitive sound clarity and accuracy available today. These units have optional output transformers to isolate and balance the signal. The NV Series, featuring the MP-2NV and the ME-1NV, modernize vintage sound. Both units are tunable preamplifiers that offer the same definitive sound and solid craftsmanship as all Great River Electronics preamplifiers with the ability to 'tune that sound' a la 1970's 1073's. The equalizers, EQ-2NV (two channel) and EQ-1NV (one channel), are loosely based on the topology of vintage 1081/1083 models. The newly-designed class A, discrete single-ended amplifiers in the EQ-NV Series bring greater clarity and dynamic range to the musicality and control of the 108x models. The EQ-2NV and EQ-1NV use the same internal components and have identical and stunning sonic performance capabilities. Great River Electronics Inc. understands the needs, demands, and mission of today's busy recording professionals - produce great music with great sounds and great performances accurately articulated and meticulously defined every time.

Specifications

MAQ-2NV FEATURES

  • Stereo, discrete Class-A design with LC topology

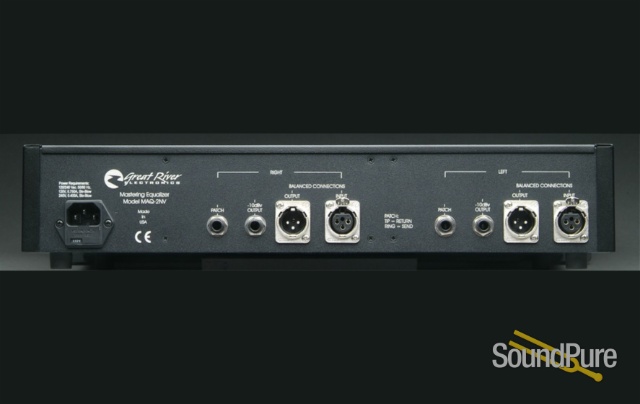

  • Multiple In/Out connections: XLR balanced line in and out; ¼" -10dbV output for 'no-latency' DAW monitoring; TRS ¼” insert patch point
  • Wide range of input sensitivity from +8dbm to -20dbm with selection between line in and insert patch point
  • 4 bands independently enabled with +/-8db boost/cut
  • Hi and low bands selectable between peaking and shelving
  • Hi-mid and low-mid bands each have 3 selectable Q positions
  • 3rd order selectable frequency high pass filter
  • Hardwire bypass of equalizer section
  • Internal low-noise shielded power supply (externally selectable for 110 / 220 volt; 50 / 60 Hz)
  • 3 year warranty with registration
  • Two rack space with internal power supply
