Mastering-grade midrange control with smooth, musical precision. Shapes presence, clarity, and punch without harshness.
$5,499.00

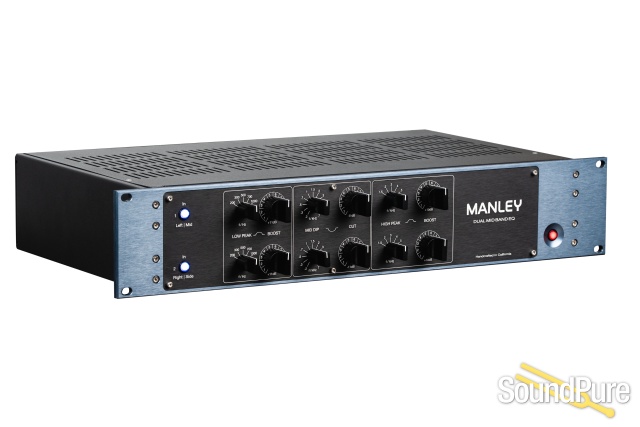

The Manley Dual Mid Band EQ provides mastering-grade midrange control with smooth, musical precision — shaping presence, clarity, and punch without harshness. A passive inductor-based EQ with high-voltage tube makeup gain and custom Manley Iron transformers, built for mix-bus work, mastering chains, and high-end tracking. Handcrafted in California.
The Manley Dual Main EQ and Dual Mid Band EQ are Manley's 2026 flagship equalizers — modernized, true-stereo evolutions of two of the most respected passive EQ designs in professional audio. Built for mix-bus work, mastering chains, and high-end tracking. Individually exceptional, together unmatched.

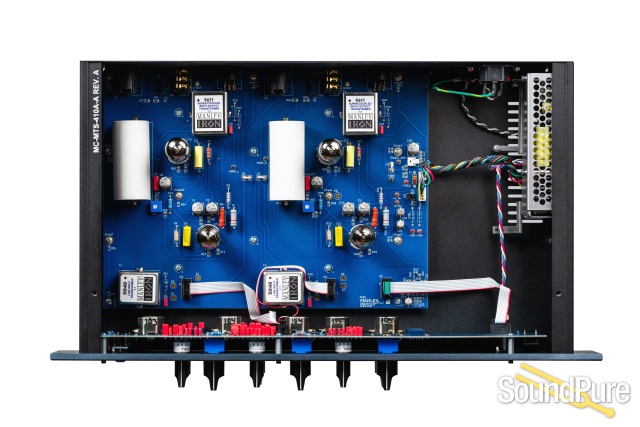

Each unit combines a passive inductor-based EQ network, high-voltage tube makeup gain, and custom in-house wound Manley Iron transformers into a dual-channel signal path designed to do more than adjust tone. The result is equalization that shapes weight, dimension, depth, and musical cohesion — not just frequency balance.
The Dual Main EQ delivers authoritative low-end weight, open and musical highs, and dimensional depth. The Dual Mid Band EQ provides mastering-grade midrange control with smooth, musical precision — shaping presence, clarity, and punch without harshness. Together they form a complete master-bus EQ system; each equally capable as a standalone processor on sources, stems, buses, and mastering chains.
Updated ergonomics, L/R and M/S labeling, and the new Manley logo. Universal switchmode power supply — compatible with all mains voltages, contributing to the unit's extended headroom and low noise floor. Handbuilt in California.
The MANLEY brand has been around since the late 1980's. Manley's first commercially available products were upper echelon high-fidelity vacuum tube amplifiers and preamplifiers constructed at the old Vacuum Tube Logic of America factory.
In this history lesson, we'd like to direct special focus on our people at Manley Labs. The people whose years of dedication, service, and expertise bring you people, our customers, these products. It's all about the people...
On January 30, 1989, a 20 year old EveAnna on sabbatical from her studies at Columbia University met the crew and was hired on to the production team. Baltazar Hernandez, already with two years experience, taught her how to solder in those first few days. It was in 1989 that the first Manley professional products were developed, starting with the original 1u Reference 60dB Microphone Preamplifier and soon followed by our Manley Enhanced Pultec and Mid Frequency Equalizers. Baltazar and EveAnna, busy building gear, were soon joined by Saulo and Ramiro. Just next door, Elias was employed by a printed circuit board maker later brought into the Manley Labs fold when in 1993, Manley Laboratories, Inc. became a separate entity apart from VTL. The new Manley Labs factory at 13880 Magnolia Ave. in beautiful and bovine Chino, California was outfitted to house the Manley HiFi and Pro Studio manufacturing as well as the Langevin production lines, our newly acquired machine shop, and printed circuit board facilities.
|
|
Dual Main EQ |
Dual Mid Band EQ |
|
Format |
Stereo / Dual Mono |
Stereo / Dual Mono |
|
Topology |
Passive EQ |
Passive EQ |
|
Tube Stage |
2× 5751, 2× 12BH7 |
2× 5751, 2× 12BH7 |
|
Frequency Response (flat within ±0.1 dB) |
20 Hz–22 kHz |
20 Hz–22 kHz |
|
Frequency Response (Total) |
10 Hz–70 kHz |
10 Hz–70 kHz |
|
THD / Noise |
<0.01% |
<0.01% |
|
Signal to Noise Ratio |
96 dB |
89 dB |
|
Max Output |
+30 dBu |
+30 dBu |
|
Dynamic Range |
122 dB |
115 dB |
|
Input Impedance |
5 kΩ |
5 kΩ |
|
Output Impedance |
150 Ω |
150 Ω |
|

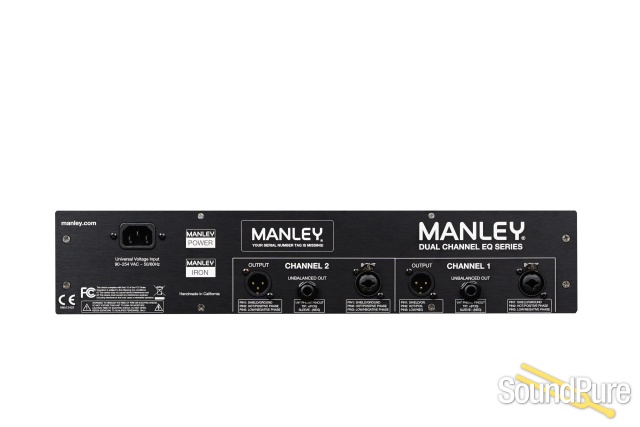

Inputs |
Balanced XLR, transformer-coupled |
Balanced XLR, transformer-coupled |
|
Outputs |
XLR balanced — transformer coupled · ¼" unbalanced — direct coupled |
XLR balanced — transformer coupled · ¼" unbalanced — direct coupled |
|
Transformers |
Manley Iron (in & out) |
Manley Iron (in & out) |
|
Bypass |
All-tube path (not hardwire bypass) |
All-tube path (not hardwire bypass) |
|
Controls |
Silent conductive plastic pots |
Conductive plastic pots |
|
Power Supply |
Universal switchmode |
Universal switchmode |
|
Rack Space |
2U |
2U |
|
Dimensions (H×W×D) |
3.5" × 19" × 7" |
3.5" × 19" × 7" |
|
Unit Weight |
11 lbs |
11 lbs |
|
Shipping Weight |
17 lbs |
17 lbs |
|
Origin |
Handcrafted in California, USA |
Handcrafted in California, USA |
