From Millennia Media

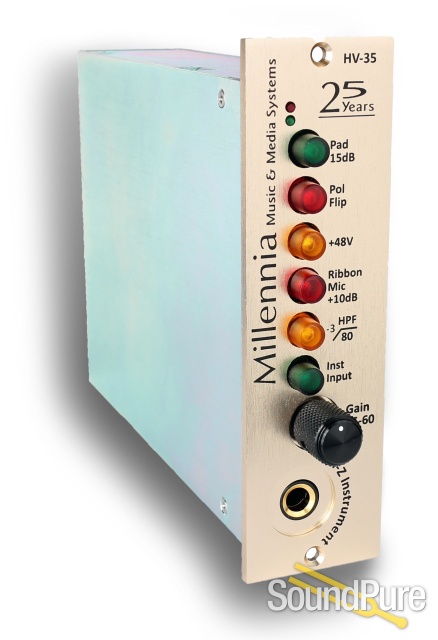

To celebrate our 25th anniversary, along with our 2019 induction into the prestigious NAMM Technology Hall of Fame, we have made a special limited edition HV-35 Anniversary micamp. Production is limited to 100 individually-numbered units.
Sporting a champagne-gold anodized finish and "25 Year" logo, each HV-35-ANIV is hand-signed by John La Grou and the Millennia team.
Features
♦ Continuously variable gain control
♦ Front panel instrument input
♦ DC coupled ribbon mic with 10dB gain boost setting
♦ 80 Hz rolloff filter
♦ 48V phantom power
♦ 15 dB Pad
♦ Polarity flip
♦ API 500 series compatible format
| Minimum Gain | 14.5 dB, 1dB with Pad |
|---|---|
| Maximum Gain (continuously variable) | 60 dB (70 dB in Ribbon Mode) |
| Frequency Response (-3 dB) | < 10 Hz to > 200 kHztypical -1.0 dB @ 10 Hztypical -1.5 dB @ 200 kHz |
| Noise (60 dB Gain, 10 Hz - 30 kHz, Inputs common) | -130 dB EIN |
| Total Harmonic Distortion + Noise (35 dB Gain, 10 Hz - 20 kHz bandwidth, +24 dBu Out) | < .003%, Typical < .001% |
| Intermodulation Distortion (50 Hz & 7 kHz) 35 dB Gain | < .0006% +12 dBu Out< .001% +20 dBu Out |
| Phase Response (35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out) | < 2 degrees deviation |
| Common Mode Rejection Ratio (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.) | > 65 dB, Typ > 85 dB |
| Slew Rate (35 dB Gain, +24 dBu Out) | > 25 Volts per microsecond |
| Maximum Input Level (20 Hz - 40 kHz) | +12dBu @ 0.02% THD+N+18dBu @ 0.02% THD+N with pad< |
| Maximum Output Level | 1 kHz @ 35dB of gain, THD+N is:< 0.001% at +26dBu output< 0.05% @ +28 dBu output. |
| Phantom Input Impedance (1 kHz) | 2,210 ohms |
| Output Impedance | 24.3 Ohms (x2) |
| Phantom Powering | provided by 500 rack |
| Dimensions/Shipping Weight | 1.5” W x 5.25” H x 6” D, 2 lbs.. |
