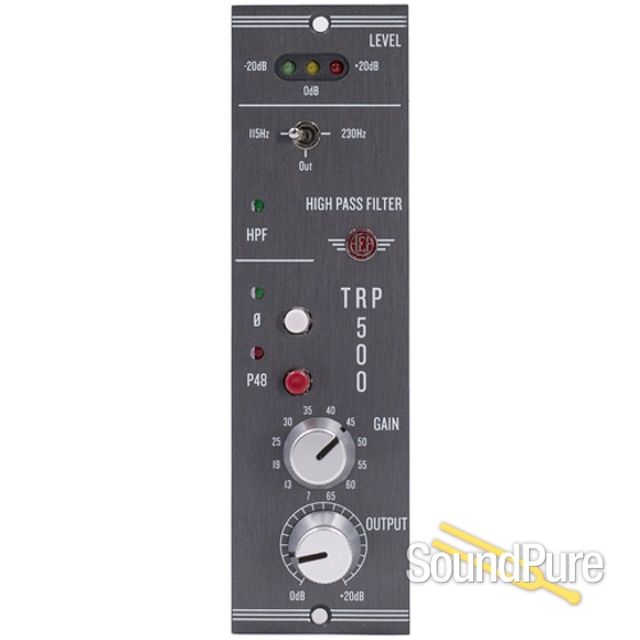

AEA TRP500 Ribbon Microphone Preamp  From AEA

The first product in our 3rd-generation of microphone preamps, the TRP500 leans on the side of neutral but is unlike other "clean" preamps because of its rich and musical tonality. Optimized for ribbon mics, the TRP500 offers up to 85dB of effortless gain for any microphone.

AEA

$599.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $52/mo.

Manufacturer's Description from AEA

TRP500 PREAMP OVERVIEW
  • Single-channel, 500 series format
  • 85dB of quiet, DC-coupled JFET gain
  • Ultra-high impedance (100,000 Ohms)
  • Switchable 115 Hz or 230 Hz high-pass filter
  • Switchable phantom power and polarity reverse

ENHANCE YOUR RIBBONS

Based on the circuit and topology of the company’s original AEA TRP preamp, the TRP500 has the low noise, musical sonics, and ultra-high gain and impedance (100,000 Ohms) that AEA is renowned for. The TRP500 excels at drawing out the warmth and lush sound of ribbon mics as well as other top-level microphones. With up to 85 dB of quiet DC-coupled gain, minimal path architecture, and a gentle 115 Hz or 230 Hz high pass filter, this preamp puts as little as possible between you and your audience.



HANDCRAFTED IN PASADENA

Like all AEA products, the TRP500 is 100 percent handcrafted in Pasadena, California from locally sourced parts. AEA is a family-owned company with a small crew of skilled technicians, many of whom are musicians themselves.



HIGH IMPEDANCE MAKES A HUGE DIFFERENCE

The ultra-high gain DC-coupled JFET circuit has two input impedances: 11,900 Ohms with phantom power “ON” and 100,000 Ohms with phantom power “OFF.” The 100,000 Ohm mode brings out the best in passive ribbons and tube mics, and also provides a unique balanced input for vintage, high-impedance dynamic mics. This versatility ensures the highest sensitivity, bandwidth, transient response, and clarity possible for a wide variety of microphones.



EXCEPTIONAL PREAMPS

Passive microphones, coupled with AEA’s range of ribbon-specific preamps, are the key choice for discerning recordists who want total control over their signal path.

AEA offers the RPQ2, RPQ500 and TRP2 microphone preamps, all of which provide unmatched clean levels of gain, and a high impedance. All AEA Ribbon Preamps all share the same topology and sound. The differences between each unit come down to extra features and form factor.

AEA

About Manufacturer

Wes Dooley's longtime passion for audio has infused his company, Audio Engineering Associates (AEA), with a well balanced blend of creativity and technical expertise for forty years. At the core of AEA is a genuine interest in the art and science of audio. From areas as diverse as forensic audio and microphone design, Wes' passion for audio has led him all over the world, from recording experiences in Europe, Africa, and New Zealand, to the courtrooms of Los Angeles as a forensic audio and video expert witness. Such experiences have led Wes to design products which help resolve problems commonly encountered by recording engineers. His portable recording tools including, multi-channel microphone arrays, MS stereo processors, stereo phase displays and very tall microphone stands, have all made on-site recording far more feasible. Despite his contributions to on-location recording, Wes is best known for his pursuit of excellence in ribbon microphone technology. After two decades of representing and servicing the BBC 4038 in the United States, he began to experiment with his own ribbon microphones. During the last decade Wes became aware of the increasing scarcity of R44's and other ribbon microphones. In 1998, responding to this need, Wes re-introduced the 44 much to the thrill of many in the recording industry. Les Paul told Wes that AEA's R44 is his favorite microphone and engineer/producers such as Bruce Swedien, Kevin Bacon, and Shawn Murphy routinely use AEA's R44. Even without such critical acclaim the numbers speak for themselves. Over half of the movies scored in Los Angeles have a 44 somewhere on the scoring stage. Building off of his successful reintroduction of the R44, in 2002 Wes designed and began producing an original ribbon mic, the AEA R84. His groundbreaking work with ribbon microphones helped him to secure the Audio Engineering Society (AES) Silver Medal Award in the fall of 2003. This award, established by the AES in 1971, in honor of audio pioneers Alexander Graham Bell, Emile Berliner, and Thomas A. Edison, is given in recognition of outstanding development or achievement in the field of audio engineering. Wes has also co-authored two AES Journal articles about stereo microphone techniques, chaired workshops on mic techniques and mixing strategies for compatible multiple releases for cinema, broadcast and home video, and has presented section meetings on stereo techniques and forensic audio. He is involved with AES standards work and currently serves on the SC-03-12 Working Group on Forensic Audio and SC-04-04 Working Group on Microphone Measurement and Characterization.

Specifications

Preamp Type: 500 Series Solid State Preamp
Number of Channels: 1
Frequency Response: 10Hz-200kHz
Phantom Power: Yes
Polarity Switch: Yes
Module Slot Size: Single
Power Usage: ±16V DC, +130mA
Height: 5.2"
Depth: 6.8"
Width: 1.5"
Weight: 10.1 lbs.
Manufacturer Part Number: TRP500
