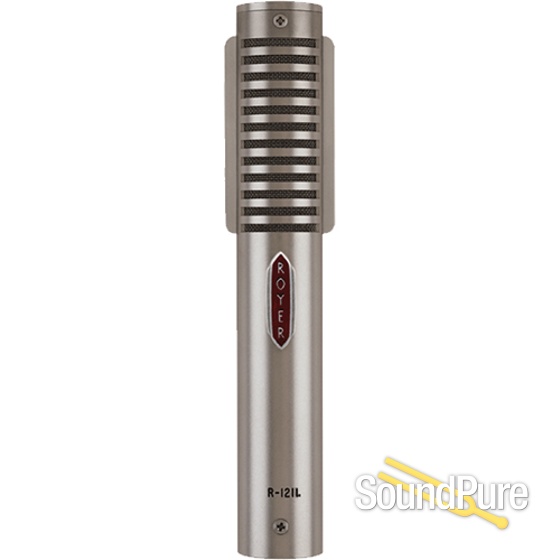

Royer Labs R-121 Live Series Ribbon Microphone  From Royer

An even more rugged version of Royer's R-121, the R-121 live is a road-ready ribbon microphone with a slightly thicker ribbon element than it's counterpart designed for studio use.

Royer Labs

$1,295.00

Retail:  $1,395.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 24 - 48 hours after order processed.
Payments as low as $29/mo.

Electric Guitar 3-Mic Comparison - Sound Pure Gear Tip

In this installment of Sound Pure Gear Tips, Pro Audio Specialist Marc Kuzio walks us through and demos the different types of mics you can use to record electric guitar.

Manufacturer's Description from Royer

 The R-121 Live is a ruggedized version of our popular R-121 ribbon microphone. The studio R-121 is tough and has been used on the road for years, but the increased durability of the R-121 Live gives FOH engineers greater confidence in the ribbon standing up to the rigors of the road.

 The R-121 Live accurately reproduces what you hear at the sound source. Most microphones add their own characteristics - they all serve a purpose and have their place on stage. But if your goal is to capture something the way it really sounds - that ripping electric guitar, that wailing trumpet, that full kit - and you've found that reproducing that sound was next to impossible, put up some Royer Live Series mics and get ready. The R-121's response is flat and well balanced, with a deep, non-boomy low end, well defined and realistic mids, and a smooth and natural sounding high end response that's never edgy or sibilant.

 When it's time to mix the band, push up the faders and you'll see why FOH engineers love their R-121's on electric guitars and brass. When the instruments sound real, fitting them into the live mix is a breeze.

 The R-121 Live's output level is comparable to a dynamic mic, and it delivers the warm, realistic tone that only a ribbon mic can. Along with its smooth, natural response, the R-121 Live virtually eliminates the shrill high-end often associated with live guitars and brass. Push up the faders and there's the instrument in all its fullness and natural glory, minus the peaky highs that FOH and Monitor engineers spend so much of their careers fighting.

 The R-121 Live is visually differentiated by its red logo. The ribbon element thickness is increased from 2.5 microns to 4-microns, giving the microphone greater durability and a slightly reduced high end response. Highs are often rolled off in live performances, but due to the R-121 Live's exceptionally smooth high frequency response, it needs far less eq'ing than is usually required with condenser and dynamic microphones.

 The R-121 Live's maximum SPL rating is 135dB at 20 Hz and it can handle that all day, every day. In practical terms, that means you can put your R-121 in front of a souped up 100-watt Marshall and open it up without microphone distortion or damage to the ribbon. We don't recommend trying this with other ribbon mics, but the R-121 Live was built to take it.

 The R-121 Live is backed with Royer's lifetime warranty to the original owner, and the first re-ribbon is free. We expect it to work as hard as you do, so we stand behind it the whole way. As with any high end microphone, proper storage during transit and careful handling during setup and breakdown is key to keeping the microphone in good working order.

 The R-121 Live's pickup pattern is figure-8, which can be used to control stage bleed with great effect. Side rejection in the null points is strong - position the mics "ears" to face the offending instrument(s) and bleed will be virtually eliminated. The top and bottom of the microphone are also null points. If monitors are in close proximity to the rear side of the microphone, a positioning adjustment can place the monitors output in the mic's null, isolating the monitor from the mic's pickup areas.

 The R-121 Live's proprietary offset ribbon transducer (Patent # 6,434,252) is the first of its kind, positioning the ribbon element closer to the front (logo) side of the microphone. This arrangement gives the ribbon more room to move within the prime magnetic field while maintaining full frequency response on high SPL applications. It's an integral piece of the magic of all Royer R-series microphones.



Features

  • High SPL Capabilities

  • No internal active electronics to overload or produce distortion up to maximum SPL rating

  • Extremely low residual noise

  • Ribbon element is not affected by heat or humidity

  • Absence of high frequency phase distortion

  • Equal sensitivity from front or back of element

  • Consistent frequency response regardless of distance



Royer Labs

About Manufacturer

After years of designing and manufacturing microphones in Los Angeles, David Royer teamed up with Rick Perrotta, former President and co-founder of the prestigious Matchless Guitar Amplifier Company, and together with studio owner Rafael Villafane and musician/marketing director John Jennings, formed Royer Labs, a California based company dedicated to the development and production of high quality ribbon microphones and transducer elements. DAVID ROYER Best known for his ribbon mics, David has designed countless other mics and outboard devices that are in use throughout numerous LA studios. When David's not designing new gear, his idea of fun is climbing desert mountains or pounding dirt roads in his new pickup. RICK PERROTTA Rick Perrotta's name may sound familiar - he and Rafael Villafane owned LA's Baby-O Recorders during the 80's, then Rick went on to co-found Matchless Guitar Amplifiers, where he was President and Production Chief of the prestigious amp line until 1995. At the helm of Royer Labs, Rick brings an extraordinary level of craftsmanship to every Royer microphone (hold one in your hand and you may never give it back!). JOHN JENNINGS John worked for years as a guitar player and singer, in the studio and on the road. He took an 8-year detour into the corporate world as VP Sales & Marketing for an LA communications firm, but came to his senses in 1996 and ditched the suit to get into pro-audio manufacturing and sales. John handles sales and marketing for Royer Labs. RAFAEL VILLAFANE Rafael Villafane co-founded Baby'O Recorders with Rick. He has produced a #1 and numerous top ten hits in the US and abroad. He drinks too much. Owns a club in Acapulco (Baby'O). If you can prove you own a Royer product, the first ten tequilas are on him---really. Drives too fast. Been doing a record for ten years he STILL can't finish. Has a six-second attention span. He torched a school with young pal Jeff "Skunk" Baxter in Mexico City when they were kids. What else? Oh yeah, he's Mexican... nobody's perfect. CHRIS PERROTTA As another co-founder of Matchless Amplifier Company, Chris was responsible for the high quality detail work that Matchless is famous for, including the light up "dashboard" and three dimensional logo. At Royer, Chris is the chief mechanical designer and another confirmed precision freak. Every Royer microphone owes its beauty and elegance to Chris wonderful interpretations of the designers art.

Specifications

  • Acoustic Operating Principle: Electrodynamic pressure gradient

  • Polar Pattern: Figure-8

  • Generating Element: 4-micron aluminum ribbon

  • Magnets: Rare Earth Neodymium

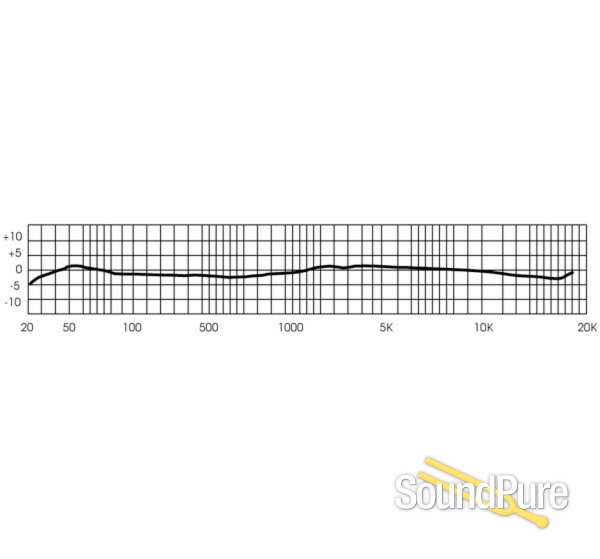

  • Frequency Response: 30 -15,000 Hz +/- 3dB

  • Sensitivity: -50 dBv Re. 1v/pa

  • Output Impedance: 300 Ohms @ 1K (nominal)

  • Rated Load Impedance: >1500 Ohms @ 300 Ohms

  • Maximum SPL: >135dB @ 20 Hz

  • Output Connector: Male XLR 3 pin (Pin 2 Hot)

  • Dimensions: 58mm L, 25mm W (6.13" L, 1" W) Weight: 244g (8.6 oz) Finish: Dull Satin Nickel/Matte Black Chrome optional



Downloads

Action

Name

Description

R-121 User Manual
