Miktek CV3 Large Diaphragm Multi-Pattern Matched Pair  From Miktek

A modern and detailed tube LDC ideal for recording single vocalists, and perfect for acoustic instruments, groups of vocals, piano, string ensembles, winds, overheads on a drum kit or as ­ambient room mics.

Miktek

$2,599.00

Retail:  $4,099.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $59/mo.

Want a lower price?
Call or email us!
888-528-9703
sales@soundpure.com

Miktek CV3 LDC Tube Mic: Building a Mix pt. 1 - Overview

The Miktek CV3 Large Diaphragm Multi-Pattern Tube Condenser Mic, has quickly become one of our favorite LDC tube microphones for just about every studio application. The CV3 boasts a detailed, larger than life, modern sound that will please artists, producers and seasoned engineers alike. In this video, SoundPure Recording Engineer, Allen Palmer, starts off our series by introducing a simple setup for recording in your home studio with only two mics. If you like what you hear, check out this gear at SoundPure.com or give us a call anytime at 919.682.5552. Thanks for watching!

Manufacturer's Description from Miktek

The Miktek CV3 is a large-diaphragm tube condenser ­microphone offering nine pick-up patterns. The CV3’s sound is truly large and produces a musical response that will please artists, producers and most seasoned engineers alike. The bottom end is big, warm and tight, with mids that are present and even, along with a high frequency response that’s sweet and airy.

The CV3 utilizes the MK9 capsule developed by Miktek.

This unique capsule features dual 1-inch diaphragms manufactured using 5-micron Mylar with a 0.4-micron layer of evaporated gold, which is precisely tensioned, mounted to carefully-tuned backplates, and set back-to-back to create the final capsule. Tight tolerances and special attention to precise machining of the backplate produce a linear off-axis response that ensures the accuracy of the microphone.

The CV3’s head amplifier employs exotic discrete components and the output stage features a custom AMI transformer, which offers a classic sound and an extended low frequency response found in the earliest versions of the most famous vintage tube microphones. Together with a hand selected subminiature pentode vacuum tube, in which the high-voltage circuit has been uniquely implemented, the CV3 challenges the performance of the best-in-class industry standards without hesitation.

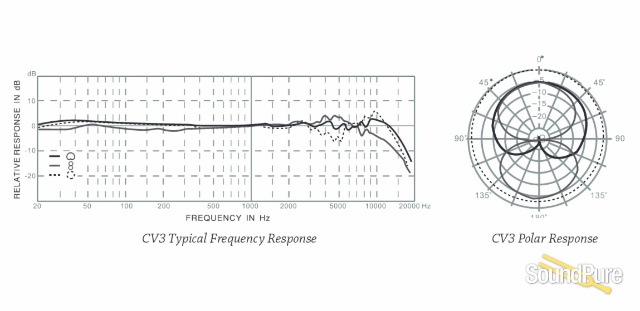

The Miktek CV3 is hand assembled, tested and packaged in Nashville, Tennessee, USA using components from the US, Europe and Asia. Each microphone includes its serialized ­frequency response graph created during final testing.

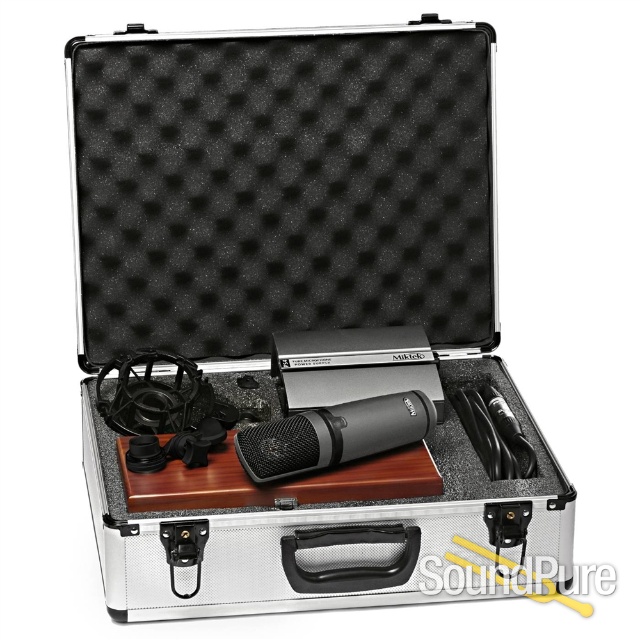

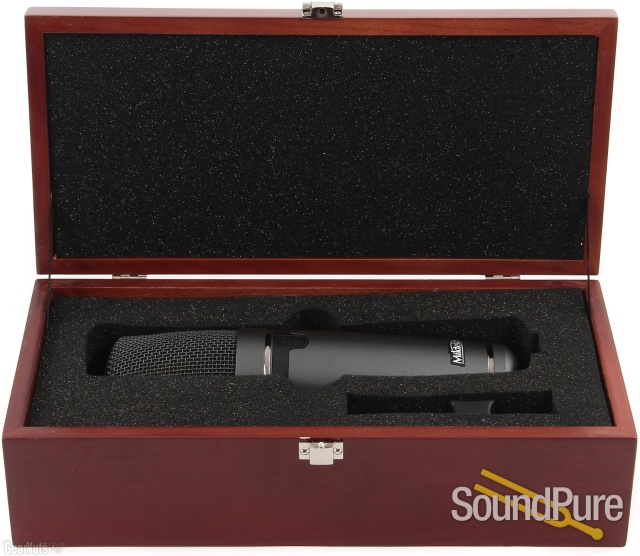

The CV3 is packaged with its swivel mount in a wooden box, which is set inside an aluminum case with the included power supply unit, 7-pin XLR cable and shock mount.



   •  Classic Large-diaphragm Tube Condenser Design
   •  MK9 Dual 1-inch Capsule with 5-micron Mylar, Evaporated Gold
      Diaphragms
   •  Nine Selectable Pick-up Patterns
   •  Custom AMI Transformer
   •  Hand Selected subminiature Pentode Vacuum Tube
   •  Individual serialized Frequency Response Graph
   •  External Power Supply and 7-pin XLR Cable
   •  Wood Presentation Case with swivel-mount, shock-mount and
      rugged aluminum Carrying Case

Miktek

About Manufacturer

Precision microphones handmade in Nashville, TN USA.

At Miktek, we're dedicated to the pursuit of superior sound captured through microphones. Inspired by the iconic mics of the past, our engineering team has developed capsules and unique circuits to capture that elusive, classic sound. Incorporating the very latest in audio technology, our microphone designs are approved by some of the world’s most acclaimed recording engineers.

Specifications

  • Type: Large Diaphragm Nine-Pattern Tube Condenser
  • Polar Patterns: Nine selectable; Omni, Cardioid, Figure-8, and a transitional pattern in between each of those
  • Frequency Response:  20-20000 Hz
  • Sensitivity: -35 dBV/Pa
  • Equivalent Noise Level: 16 dB
  • Dynamic Range: 117 dB
  • S/N Ratio: 78 dB
  • Max. SPL: 133 dB
  • Power Supply: Miktek PS4
