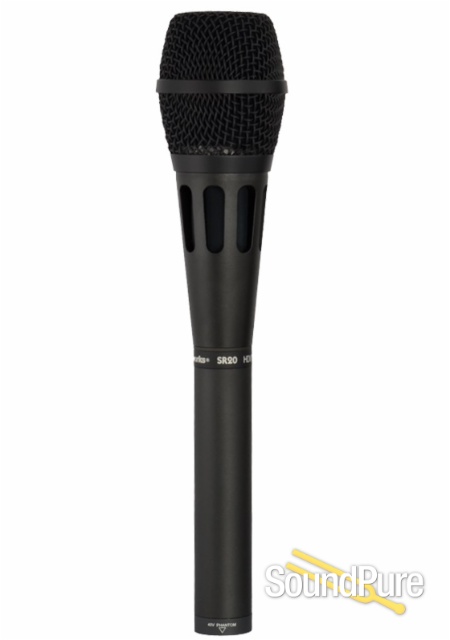

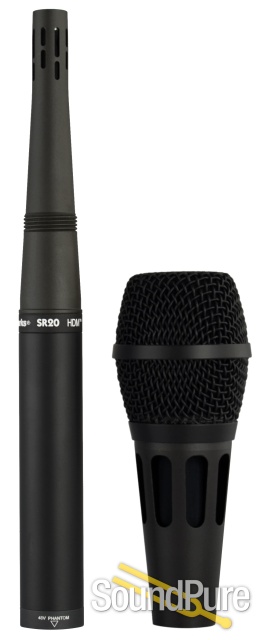

Earthworks Audio SR20 20kHz Multi-use Cardioid Condenser  From Earthworks

The SR20 is a cardioid condenser microphone with clean, natural on-axis pick up and smooth uncolored off-axis rejection, making it a superb choice for a wide range of applications, including reinforcement and recording of vocals, guitar, drums, piano, horns, strings and woodwinds. Its open, easy-to-use pickup is musician friendly.

Earthworks

Manufacturer's Description from Earthworks

  • Will accurately capture a voice with the same precision and quality up to 90 degrees off-axis, providing the same pristine sound quality at the front and side of the microphone
  • Up close the SR20 is warm, not boomy, while its unique windscreen assembly eliminates the popping of P’s
  • Patented design and uniform polar response provide more gain before feedback than other microphones

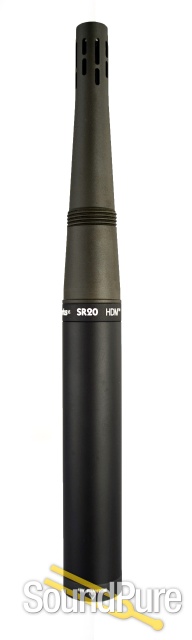

  • Unscrewing the windscreen of the SR20 allows it to become an instrument mic for piano, guitar, drums, brass, woodwinds and other instruments
  • Textbook perfect cardioid polar pattern with natural on- and off-axis performance
  • Provides excellent results for both live performance and recording applications
  • Extreme accuracy in the time domain for faithful reproduction and no smearing or distortion
  • No “smearing” of low-level signals
  • Included in the package: mic clip, case & SRW1 Screw-on windscreen
Earthworks

About Manufacturer

Earthworks was formed by David Blackmer, the inventor of dbx, to realize his vision of upgrading the entire audio chain to a new standard of sonic realism. David's goal of creating high definition tools with which to capture the sound and experience of "being there" is based upon a strong evidence that there is more to human hearing than the range of frequencies which can be heard as tones. We are convinced that audio equipment with extended frequency response and faster, cleaner time domain performance will yield more life-like results. Traditional audio methadology appears to be based on working around the limitations, imperfections, and personality quirks of the equipment, and calling the ones you like "assets". WE believe that any part of the audio chain can be improved to the point where the standard is so high that any product meeting it will be indistinguishable from any other product meeting the same standard, and that an audio system built to such standard can achieve sonic reality. This standard, for electronic equipment, is met by our Zero Distortion Technology. We support the concept of recording acoustic events accurately enough to capture the sound as it happened in the room. This approah allows you to make sonic coloration and texture choices later, when you can consider them carefully and still have recourse. Life-like accuracy is the best starting point for whatever unique coloration you may wish to add.

Specifications

Frequency Response: 50Hz – 20kHz ±2dB at 12 inches
Polar Pattern: Cardioid
Sensitivity: 20mV/Pa (-34dBV/Pa)
Power Requirements: 48V Phantom, 10mA
Max Acoustic Input: 139dB SPL
Output: XLR (pin 2+)
Output Impedance: 65Ω, balanced (50Ω ea. pin 2 & 3)
Min Output Load: 600Ω between pins 2 & 3
Noise: 16dB SPL equivalent (A weighted)
Dimensions L x D: 212mm x x 22mm (8.4 x .860 inches)
238mm x 22mm (with windscreen)
Weight: .3 lb (135g)
