From Mojave Audio

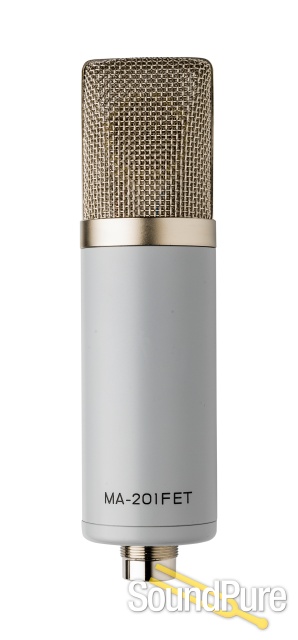

The MA-201fet is a large diaphragm, phantom-powered, solid-state condenser microphone with a fixed cardioid pattern. With its roots in a lineage of microphone designs by David Royer, the MA-201fet gives warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artifacts that are often encountered with modern condenser microphones.
Utilizing a 3-micron gold-sputtered capsule, high-quality Jensen audio transformer, military-grade FET and custom designed low-noise resistors, the MA-20fet performs at a level reminiscent of some of the best loved classic condenser microphones. Each MA-201fet microphone is carefully tested and evaluated, then packaged in its protective case with a professional grade shockmount.
Features:
- Hand-selected 3-micron 1" capsule
- Jensen audio transformer
- Military-grade FET
- Custom designed low-noise resistors
- Ultra clean signal path
Recommended applications:
- Vocals
- Voice Over and Broadcast
- High SPL sources, such as Kick Drums and Bass Guitar Amps
- Electric Guitar
- Piano
- Drum Overheads, Drum Rooms
- Acoustic Instruments
- TRANSDUCER TYPE
- Externally polarized pressure gradient capacitor
- DIAPHRAGM
- 1-inch diameter, gold sputtered
- DIAPHRAGM THINKNESS
- 3-micron

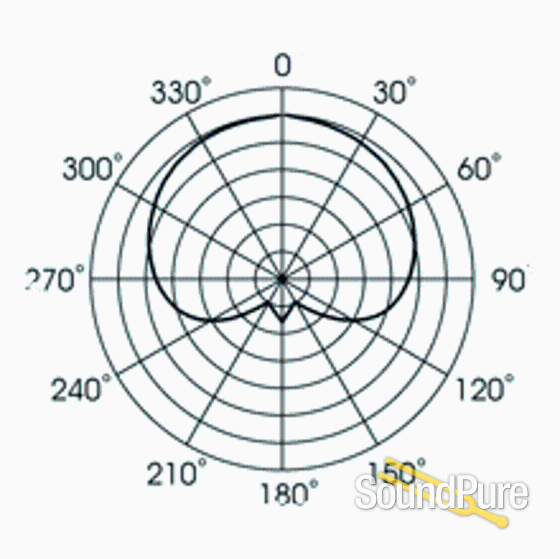

- POLAR PATTERN
- Cardioid
- FREQUENCY RESPONSE
- 20 Hz-20kHz, + 3dB
- SENSITIVITY
- -39 dB re. 1V/pa
- MAXIMUM SPL
- 125 dB
- DISTORTION
- <1% @120dB SPL, <3% @134dB SPL
- SELF NOISE
- 14dB nominal, not to exceed 16dB (A weighted)
- IMPEDANCE
- 550 ohms, transformer balanced (Jensen)
- POWERING
- 48VDC phantom power; current .68mA.
DIMENSIONS AND WEIGHT

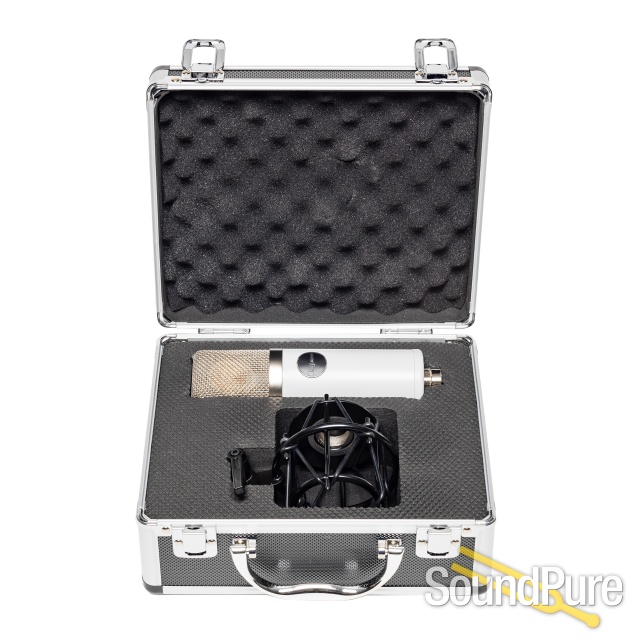

- Carrying case with microphone, shock mount
- 10" x 9" x 4.5", 4 lbs.
- Microphone
- 7 5/8" x 2", 1 lb.
