Watch & listen

Earthworks QTC40 Microphones Acoustic Guitar Video

Also in this recording Sebatron VMP 4000e 4 Channel Tube Mic Pre Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Lynx Aurora 16 I/O D/A and A/D Converter McPherson 5.0XP Port Orford Cedar/Striped Macassar Ebony #1625 MJ Franks Legacy Dreadnought Brazilian Rosewood Acoustic Guitar

The Earthworks QTC40 Omni Microphones (formerly the QTC1) record Acoustic Guitars in a state-of-the-art recording studios. The matched pair of microphones, from Earthworks QTC (quite time coherent) microphones series of... Read more

The Earthworks QTC40 Omni Microphones (formerly the QTC1) record Acoustic Guitars in a state-of-the-art recording studios. The matched pair of microphones, from Earthworks QTC (quite time coherent) microphones series of omni-directional mics produce dazzling results on acoustic guitars do to their inherent low noise, amazing accuracy and detail, and true-omni pattern. Even when placed close to the instrument in a spaced A-B omni setup, the microphones remain true, and capture all of the harmonic detail and presence. They were used with the Earthworks 1024 zero distortion mic preamp as well as the Sebatron 4000e tube mic preamp. The entire Earthworks range of microphones is available from Sound Pure, an authorized Earthworks dealer, always available to answer any of your questions, or help with your next upgrade- call us toll free at 888.528.9703.

MJ Franks Brazilian Rosewood Acoustic Guitar Video Demo

Also in this recording MJ Franks Legacy Dreadnought Brazilian Rosewood Acoustic Guitar Lynx Aurora 16 I/O D/A and A/D Converter Sebatron VMP 4000e 4 Channel Tube Mic Pre

Mike Franks does it again - amazing new MJ Franks Brazilian Rosewood Legacy Dreadnought featuring an incredible piece of the increasingly rare Brazilian Rosewood, and beautiful German Spruce Top. We can't seem to get eno... Read more

Mike Franks does it again - amazing new MJ Franks Brazilian Rosewood Legacy Dreadnought featuring an incredible piece of the increasingly rare Brazilian Rosewood, and beautiful German Spruce Top. We can't seem to get enough of these guitars here, as Mike Franks, a single-man operation, builds each of these with such extreme attention to detail, love, and care. The sound and beauty of these instruments speak for themselves, hats off to Mike for his continued world-class quality. If you'd like to discuss this incredible instrument inspired from the finest Vintage Martin Acoustic Guitars, or any custom possibilities, please do not hesitate to contact the guitar experts here at Sound Pure- we can be reached toll free 888-528-9703.

McPherson 5.0XP Guitar Demo - Cedar/Ebony #1625

Also in this recording McPherson 5.0XP Port Orford Cedar/Striped Macassar Ebony #1625 Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Lynx Aurora 16 I/O D/A and A/D Converter

This McPherson 5.0XP with Port Orford Cedar Top and Striped Macassar Ebony Backs and Sides, serial #1625 from the Sound Pure guitar boutique captured in stunning detail and clarity with Earthworks QTC40 Microphones throu... Read more

This McPherson 5.0XP with Port Orford Cedar Top and Striped Macassar Ebony Backs and Sides, serial #1625 from the Sound Pure guitar boutique captured in stunning detail and clarity with Earthworks QTC40 Microphones through a Earthworks 1024 Mic Preamp. Flatpicking monster John Garris tears through this gorgeous instrument in this great-sounding demo recording, that exhibits how beautiful this McPherson sounds and looks. This guitar is available through the Sound Pure guitar boutique, and all of the great recording gear used to make this recording is available from Sound Pure Pro Audio. Call our experts today to discuss any of the gear used in this footage, toll free at 888-528-9703.

McPherson 4.0XP Acoustic Guitar Demo - Port Orford Cedar/ Madagascar Rosewood #1637

Also in this recording McPherson 4.0XP Port Orford Cedar/Madagascar Rosewood #1637 Sebatron VMP 4000e 4 Channel Tube Mic Pre Lynx Aurora 16 I/O D/A and A/D Converter

This acoustic guitar demo of the McPherson 4.0xp with a Port Orford Cedar top and Madagascar Rosewood back and sides- it sounds a beautiful as it looks, and John Garris rips through some great licks on the instrument, wh... Read more

This acoustic guitar demo of the McPherson 4.0xp with a Port Orford Cedar top and Madagascar Rosewood back and sides- it sounds a beautiful as it looks, and John Garris rips through some great licks on the instrument, while also demo'ing it's fantastic tonal qualities, and sustain. The instrument was expertly recorded in stereo using a single pair of Earthworks QTC40 Omnidirectional microphones into a Sebatron 4000e tube mic preamp. Like the rest of the McPherson line, it features the signature offset sound hole, as well as the legendary McPherson bracing that makes these instruments so special. The Sound Pure sales team is available at all times to answer any questions you have about this McPherson, the other McPherson guitars that we have available, the rest of the collection of boutique guitars and amps, or the recording techniques that we used here at Sound Pure to achieve these results. We can be reached toll free at 888-528-9703.

Earthworks 1021 1022 1024 Mic Preamp Video Demo

Also in this recording Earthworks 1024 Quad Mic Pre with Zero Distortion Technology Earthworks SR40 mp Cardioid Microphone (Pair) Earthworks QTC40 mp Time Coherent Omnidirectional Microphone (Pair) Earthworks PM40 Piano Microphone System Peluso P-67 Switchable Pattern Tube Microphone Telefunken Elektroakustik AR-51 Microphone Evans RE200 Guitar Amplifier Combo

The Earthworks 1021, 1022, and 1024 Zero Distortion Preamps are completely free of noise and distortion, and are really a lot like "wire and gain." Such transparency, accuracy and detail in a mic preamp are extremely... Read more

The Earthworks 1021, 1022, and 1024 Zero Distortion Preamps are completely free of noise and distortion, and are really a lot like "wire and gain." Such transparency, accuracy and detail in a mic preamp are extremely useful when the sound of the instrument coupled with an amazing microphone should not be compromised. The Earthworks preamp will not add its own coloration and artifacts like just about every other preamp on the market. It is designed to delver the sound coming out of the microphone exactly that way, as if there is no preamp in the signal path whatsoever. In this video we demonstrate this performance through a variety of microphones and sources including recording acoustic guitar, piano, jazz archtop guitar, and electric guitars. Give us a call to discuss this amazing distortion-free preamp, toll free 888.528.9703.

Sebatron Tube Mic Pre Demo - Acoustic Guitar

Also in this recording Lynx Aurora 16 I/O D/A and A/D Converter Sebatron VMP 4000e 4 Channel Tube Mic Pre Earthworks SR40 mp Cardioid Microphone (Pair) Mojave Audio MA-201 FET LDC Microphone Earthworks QTC40 mp Time Coherent Omnidirectional Microphone (Pair) Mojave Audio MA-101 FET SDC Microphone

The Sebatron VMP-series Tube microphone preamps are used to track acoustic guitars in a recording studio with a variety of microphones including Earthworks, Mojave, and Telefunken Microphones. While we use the Sebatron V... Read more

The Sebatron VMP-series Tube microphone preamps are used to track acoustic guitars in a recording studio with a variety of microphones including Earthworks, Mojave, and Telefunken Microphones. While we use the Sebatron VMP4000e preamp, it utilized the identical tube pre circuitry as in the 2000e and 2000e VU mic preamps. Each preamp's impressive warmth is attainable without a loss in detail typical of most preamps. Additionally the preamp features some excellent EQ functionality, and the creative ability to drive the unit in different ways to move from transparent more subtle tube coloration to much greater saturation and color (by engaging the pad circuit which exists prior to the tube gain stage). We use and love the Sebatron mic preamps in the Sound Pure recording studios, and are glad to talk to you about all of our experiences. We can be reached toll free 888.528.9703, or international 919.682.5552.

From Earthworks

The QTC Series (Quiet Time Coherent) is designed for recording quieter sources such as vocals, strings and distant miked orchestras or choirs. These low-noise omnis are also an excellent choice for drum overheads, close-miked wind and percussion instruments. Earthworks’ reputation for realism is based on these distinctive omnis. Time Coherent Response means these models do not smear the time domain as most microphones do.

Features:

  • With a frequency response to 40kHz and excellent impulse response, it will reproduce sounds with incredible detail that are true and life-like, making it an ideal and affordable choice for recording applications
  • Perfect for recording the accuracy and full detail of instruments in the studio yet robust and subtle enough to record bird sounds in the jungle
  • Intended for detailed sources
  • Omnidirectional polar pattern
  • Flat frequency response, fast impulse response and exceptional polar characteristics
  • Accurate and uncolored
  • Handles sound levels up to 142dB with no proximity effect or handling noise
  • Requires 48V Phantom Power

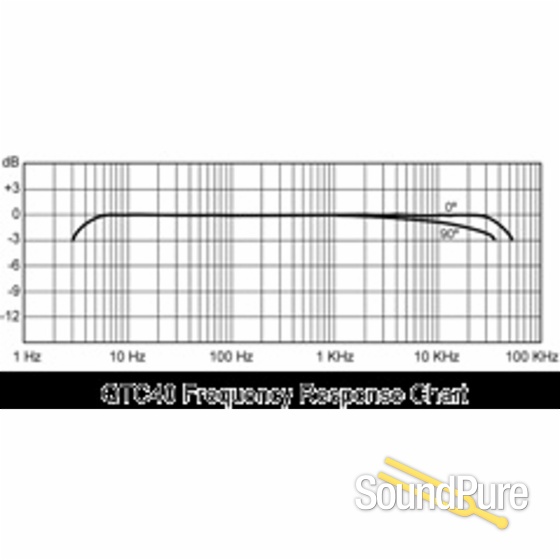

Frequency Response
4Hz to 40kHz ±1dB

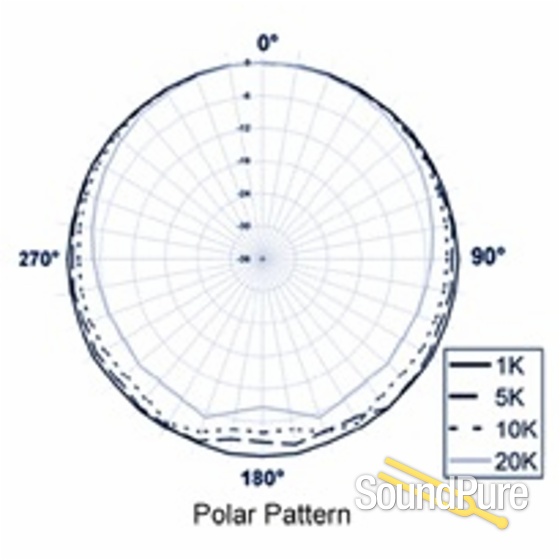

Polar Pattern
Omnidirectional
Sensitivity
30mV/Pa (-30.5dBV/Pa)
Power Requirements
48V Phantom, 10mA
Max Acoustic Input
142dB SPL
Output
XLR (pin 2+)
Output Impedance
100Ω, balanced (50Ω ea. pin 2 & 3)
Min Output Load
600Ω between pins 2 & 3
Noise
22dB SPL equivalent (A weighted)

24.5dB SPL (Unweighted)

Dimensions L x D
229mm x 22mm (9 x .860 inches)
Weight
.5 lb. (225g)
