From Audinate

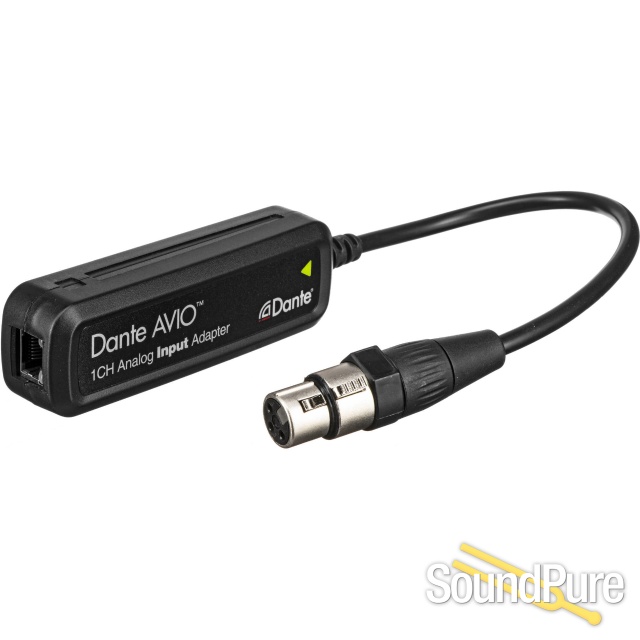

ANALOG INPUT
Connect legacy mixers and consoles to a Dante network
Patch favorite DSPs, analog compressors and equalizers into a Dante system using a combination of Input andOutput adapters
Connect stage DI boxes and keyboard instrumentsdirectly to a Dante network
Connect your wireless mic receiver to a Dante network
ANALOG OUTPUT
Connect analog powered speakers to your Dante audio network.
Send audio to analog power amplifiers over a Dante audio network.
Create easy drop-points for connecting cry rooms and overflow areas to a Dante network.
Connect non-networked hearing aid loop amplifiers to your Dante audio network.
FEATURES
Plug & play operation
Built for the road
Sample rates up to 96 kHz
16, 24 and 32-bit audio support
Excellent dynamic range, SNR and THD performance
Configurable gain / attenuation
Dante Audio over IP and AES67 RTP transport formats
Power over Ethernet (PoE) support
Dante Domain Manager ready
Max signal level (balanced)*
+24dBu / +4dBu / 0dBu
0dBV /-10dBV
Frequency Response
20Hz to 20kHz (-/+0.5dB)
Impedance
20k Ohm balanced
10k Ohm unbalanced
Dynamic Range
> 100dB
Signal to Noise Ratio
> 100dB
Total Harmonic Distortion
< 0.01% at +4dBu
Connectors
RJ45 & 1 XLR-F
Power
Class 1 802.3af PoE
Sample Rates
44.1, 48, 96 kHz
Bit Depth
24
Dante Device Latency
1, 2, or 5ms (configurable using Dante Controller)
Network Transport
Dante Audio over IP, AES67 RTP
Part Number
ADP-DAI-AU-1X0
