From Audinate
ANALOG INPUT
Connect legacy mixers and consoles to a Dante network
Patch favorite DSPs, analog compressors and equalizers into a Dante system using a combination of Input andOutput adapters
Connect stage DI boxes and keyboard instrumentsdirectly to a Dante network
Connect your wireless mic receiver to a Dante network
ANALOG OUTPUT

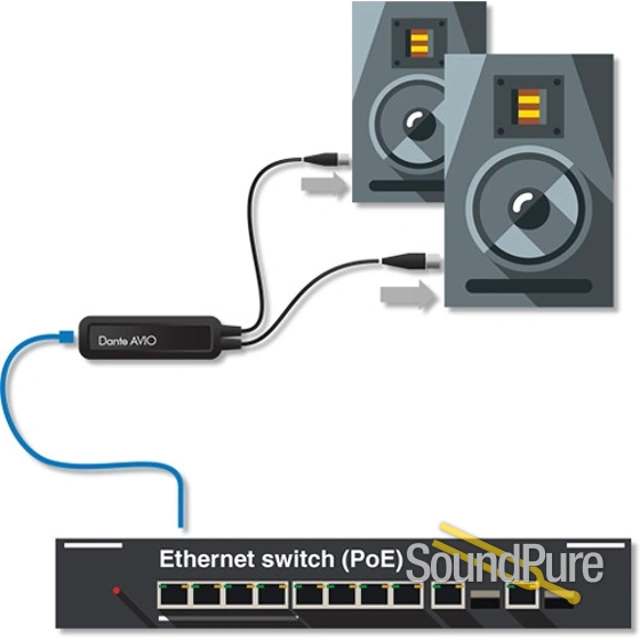

Connect analog powered speakers to your Dante audio network.
Send audio to analog power amplifiers over a Dante audio network.
Create easy drop-points for connecting cry rooms and overflow areas to a Dante network.
Connect non-networked hearing aid loop amplifiers to your Dante audio network.
FEATURES
Plug & play operation
Built for the road
Sample rates up to 96 kHz
16, 24 and 32-bit audio support
Excellent dynamic range, SNR and THD performance
Configurable gain / attenuation
Dante Audio over IP and AES67 RTP transport formats
Power over Ethernet (PoE) support
Dante Domain Manager ready
- Max signal level (balanced)*
- +24dBu / +4dBu / 0dBu
0dBV /-10dBV
- Frequency Response
- 20Hz to 20kHz (-/+0.5dB)
- Impedance
- 20k Ohm balanced
10k Ohm unbalanced
- Dynamic Range
- > 100dB
- Signal to Noise Ratio
- > 100dB
- Total Harmonic Distortion
- < 0.01% at +4dBu
Connectors
RJ45 & 2 XLR-F
- Power
- Class 1 802.3af PoE
- Sample Rates
- 44.1, 48, 96 kHz
- Bit Depth
- 24
- Dante Device Latency
- 1, 2, or 5ms (configurable using Dante Controller)
- Network Transport
- Dante Audio over IP, AES67 RTP
Part Number
ADP-DAI-AU-1X0
