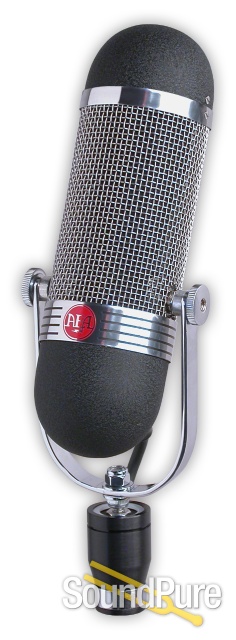

AEA R84 Ribbon Microphone, from AEA

Share |

+ -

(+) view full gallery

Large Ribbon Geometry Microphone built for general purpose use in the studio

SHIPS QUICK! Usually ships 24-48 hours after order processed

2 similar version(s) available to choose from

Mic'ing a Leslie Speaker Cabinet for a Hammond B3 Organ with Ribbon Microphones

Products used:
- AEA R92 Ribbon Microphone
- AEA R84 Ribbon Microphone
- Lynx Aurora 16 I/O D/A and A/D Converter
- API Audio 3124+ 4-Channel Microphone Preamp

More text

Less text

An AEA R84 pair and an R92 were used by SoundPure's Jason Richmond to record an isolated Leslie speaker box during this jazz trio session. Equally spacing the R84's on either side of the Leslie and placing the R92 at its bottom, Jason was able to fully capture Mark Wells' fantastic performance on the Hammond Organ. Guitarist Jared Wofford and drummer Devin Fuller join to complete the sound. The AEA ribbon mics were run through an API 3124 preamplifier and converted with the Lynx Aurora AD converter. If you want to learn more about the gear used in this session, or if you have any questions concerning the techniques used, don't hesitate to call the recording engineers here at Sound Pure Studios. 919.682.5552. or 888.528.9703.

medal mania electric guitar bridge pickup

(click to download)

McNaught Vintage Single Cut Electric Guitar > Rivera Chubster 40 Guitar Combo Amplifier > AEA R84 Ribbon Microphone > LaChapell Audio 583s Tube Preamplifier > Sennheiser MD 421 II Microphone > A Designs EM BLUE 500 series Preamp > Lynx Aurora 8 I/O D/A and A/D Converter

Description:

McNaught Vintage Single Cut electric guitar (bridge pickup) played into Rivera Chubster 40 Combo(channel 2, volume 5, bass 5 mid 6, treble 7, master 5, presence 10, boosted) mic'd with AEA R84 into LaChapell Audio 583s Tube Preamp & mic'd with Sennheiser MD 421 II into A Designs Blue Preamp feeding Lynx Aurora 8.

blues hotel electric guitar neck pickup

(click to download)

Description:

McNaught Vintage Single Cut electric guitar (neck pickup) played into Rivera Chubster 40 Combo(channel 2, volume 5, bass 5 mid 6, treble 7, master 5, presence 10) mic'd with AEA R84 into LaChapell Audio 583s Tube Preamp & mic'd with Sennheiser MD 421 II into A Designs Blue Preamp feeding Lynx Aurora 8.

blues hotel electric guitar bridge pickup

(click to download)

Description:

McNaught Vintage Single Cut electric guitar (bridge pickup) played into Rivera Chubster 40 Combo(channel 2, volume 5, bass 5 mid 6, treble 7, master 5, presence 10) mic'd with AEA R84 into LaChapell Audio 583s Tube Preamp & mic'd with Sennheiser MD 421 II into A Designs Blue Preamp feeding Lynx Aurora 8.

walking arpeggio electric guitar neck pickup

(click to download)

Description:

McNaught Vintage Single Cut electric guitar (neck pickup) played into Rivera Chubster 40 Combo(channel 1, volume 8, bass 3 mid 7, treble 5, master 5, presence 8) mic'd with AEA R84 into LaChapell Audio 583s Tube Preamp & mic'd with Sennheiser MD 421 II into A Designs Blue Preamp feeding Lynx Aurora 8.

jamblues electric guitar position 5 pickup

(click to download)

James Tyler Studio Elite Burning Water 2K sn 08230 Electric Guitar > Rivera Quiana 112 Ruby Guitar Combo Amplifier > AEA R84 Ribbon Microphone > A Designs EM BLUE 500 series Preamp > Sennheiser MD 421 II Microphone > A Designs EM SILVER 500 series Preamp > Lynx Aurora 8 I/O D/A and A/D Converter

Description:

(view less)

<< < 1 2 3 4 5 6 7 8 9 10 > >>

Description:

The AEA R84 is an affordable Large Ribbon Geometry (LRG) microphone suitable for use by the most demanding audio professional or hobbyist. This "R84 Zone" is for you and other users to share your experiences. We expect to expand this area with practical illustrations, guides to tracking situations, and actual recording experiences. Our intention is to encourage and support your success and satisfaction as you become familiar with this mic's unique features. Drop us an e-mail to share your experiences, or if you want to be informed when we post new, practical information here.

If you are new to ribbons, you are in for a treat! Experienced users have discovered the R84 is an outstanding general-purpose microphone, ideally suited for solo and accent work. It is hard to find an application where this mic does not shine. It is a fine example of the natural sound and figure-8 directional sensitivity a quality ribbon mic delivers.

Pure natural sound, just as you hear it when you're placing your mic in the studio. Quick smooth transients that capture the feeling of being there without sounding like a recording. Extended bass and treble that captures the details without shoving anything in your face.

A figure-eight pattern that focuses your recording on the sound you want. We believe you will enjoy the confidence this mic inspires. It's a forgiving tool that makes your recording work easier, as it literally sounds good on everything. Try it first and you'll usually like it and find it sits well in the mix. When time is scarce and quality necessary, put the R84 to the test. Our users' experience is that you'll use it more and more (in pairs too!). Then it will start to really grow on you.

Specs:

*Polar Pattern: Native Bidirectional (figure-eight)

*Frequency Response: 20Hz to above 20Khz

*Maximun SPL: 165 dB SPL Above 1Khz

*Output Sensitivity: -52 dBv/Pa

*Output Impedence: 270 Ohms Nominal

*Recommended Load: 1.2 k Ohm Load or better

*Powering:Not required or recommended

*Polarity:Pin 2 High

*Connector: XLR-3M wired to a 2 meter captive cable

* Includes durable plastic case with foam interior

* Operating manual for proper care and usage.

Tranducer Element

* Ribbon Thickness: 1.8 microns ( .0000018 meter ) of pure aluminum

* Ribbon Width: 4.7 mm

* Ribbon Length: 59.7 mm

*Limited Warranty: One year parts and labor, shipping not included.
