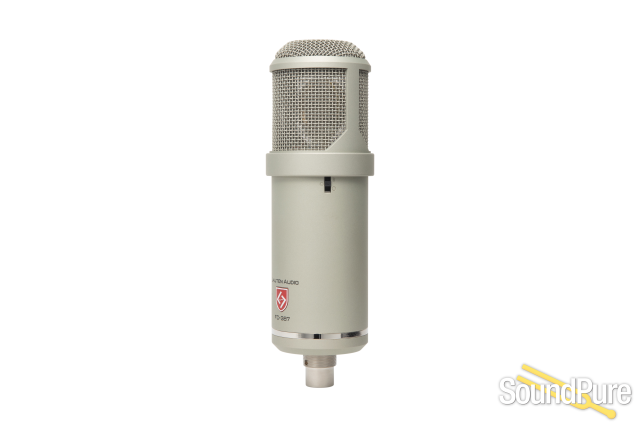

Lauten Audio Atlantis FC-387 Multi-Voiced Microphone  From Lauten

Lauten's Large Diaphragm FET condenser mic featuring three highly versatile voicing settings, gain levels, and polar patterns. Includes shock mount and wood box.

Lauten Audio

$1,758.00

Retail:  $2,500.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $39/mo.

What We Think



The Lauten Audio “Atlantis” (FC-387) is a FET (solid state amplifier) condenser microphone that is actually 3 different microphones in one body, with a single large diaphragm capsule. How is it 3 different microphones? Well, there is a 3 position switch that will permit you to change the voicing of the microphone, the net result being 3 distinctly unique microphone sounds, and 3 distinctly unique textures you can get from the Atlantis.

Additionally, the Atlantis has the traditional 3 polar patterns available – omni, cardioid, and figure 8. When you position your Atlantis in the spot that best reflects the requirements of the source to be recorded, and choose the best pickup pattern for that application, you then get to listen to the microphone and decide if you would prefer a “gentle” response from the system, a “neutral” response from the system, or a “forward” response to the system.

Brian Loundenslager, President and designer for Lauten Audio, found that New York Engineer Fabrice DuPont [who emigrated to NY from France] was both a huge fan of Lauten Audio's previous microphones, but also had very distinct opinions on what he wanted from those microphones. Brian often took time from tradeshows [etc.] to pick “Fab’s” brain on what he was looking for in a mic. Eventually Brian started to build up some proto-type mics and sent them to Fab for comment.

As time went along, there were actually 3 different prototypes that Fab really enjoyed. Rather than being forced to pick which of these prototypes Brian would produce, Brian decided to build all three into one body with a three position switch that would allow the end user to determine which of the three sounds best suited their requirements.

The “Gentle” voicing provides maximum control of bright or peaky sources like the “esses” in vocal recordings and even some of the “mosquito” qualities found on things like “dual (and triple) rectifier” guitar amplifiers. This setting can also do wonders for taming the brashest of cymbals while reinforcing the body and tone of a well tuned drum kit.

The “Forward” voicing gives the microphone an “air” and brilliance that is not “harsh” or “brash” by any stretch of the imagination. This setting has been used quite a bit for acoustic guitar recording in SoundPure Studios, and has also found its way onto more “pop” oriented vocal recordings. At the same time, this setting can be absolute magic when placed in front of a kick drum as it captures all of the thunder, along with a beautiful top end “point”, while handling the mid-range element of the sound with absolute style and grace.

The “Neutral” position is just that. This gives the microphone a very even and tempered response that is wonderfully “clear” in nature. The most even of the three available responses from the microphone, the Neutral setting is really a perfect choice when you just want to capture the sound you've created without embellishment from the microphone.

Because of the versatility of this microphone you will find yourself using it in a wide variety of applications... so in typical Lauten Audio “thinking ahead”, there are three different output level possibilities. The main output can be trimmed [padded] by 10db, or you can add 10db of gain. This gives you the flexibility to pad the mic's output when using it for drum overheads, add gain if you're recording a very low level source... or you can just plug it in and use it with its normal output level.

Miktek C7 vs. Lauten Atlantis vs. Neumann TLM 107: LDC Drum Overhead Shootout

LDC Mic Drum Overhead Shootout featuring the Miktek C7, the Lauten Atlantis, and the Neumann TLM 107. In the final video of our drum overhead series, SoundPure Pro Audio Expert, Travis Hall, showcases just a few of our favorite LDC microphones. All three mics were run through our Phoenix DRS8 mic pre and our Apogee Symphony Converter. These mics are also available for SoundPure's Try Before You Buy program, so if you want to hear how these mics sound in your studio with your gear, shoot us an email at mics@soundpure.com. If you like what you hear, check out this gear at SoundPure.com or give us a call anytime at 919.682.5552. Thanks for watching!

Manufacturer's Description from Lauten

The Atlantis FC-387 is a multi-pattern and multi-voicing large diaphragm FET studio condenser microphone. This microphone is for recordists looking for an extremely diverse, unique and modern FET sound. It offers full and rich, low and mid-range frequencies as well as smooth and unique high-mid and high frequencies no matter which voicing setting is selected.

Lauten Audio Atlantis FC-387 at a glance



Designed to tackle any vocalist and much more...

Multi-voicing switch for three distinct timbres

+10dB feature great for added presence

-10dB pad switch to tame loud sources

The perfect choice for both amateurs and professionals

Cardioid, Omni and Figure-8 polar patterns





Multi-voicing capabilities

The voicing switch makes the Atlantis an extremely diverse microphone. The options are F (Forward), N (Neutral) and G (Gentle). Forward offers a very open response and very modern, revealing sound. Neutral is a more even response with slight de-emphasis on mid and high frequencies for a more classic sound. Gentle offers the ability to tame harsh, bright or very forward sources or for a very vintage sound. As you will see below, each voicing setting has a unique frequency response; it’s like getting three microphones in one.

The multi-voicing feature is an extremely powerful option when recording vocals and many other sources. No need to swap out different microphones or EQ on the way in; simply flip the switch on the rear, compare the various timbre qualities and start recording.

Unique 3-way Gain Switch

The Atlantis also features Lauten's unique three-position attenuation and gain switch. The +10dB gain switch, which boosts the microphone's output, makes it less dependent on preamps to achieve excellent sound. This is an excellent option when you want to hear more of the microphones internal character rather than the preamp. The -10dB Pad gives you the option to record very loud sources adding even more options to this extremely diverse microphone.

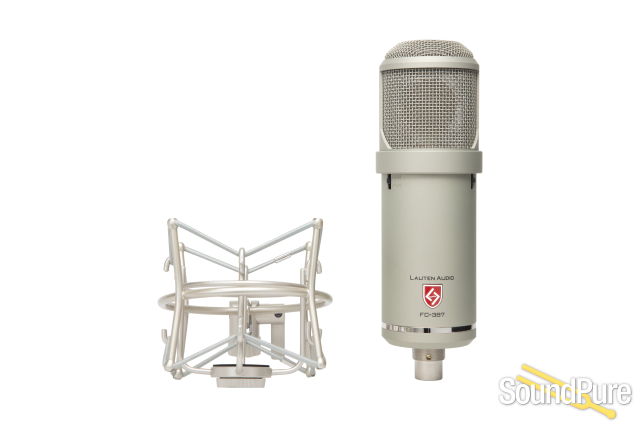

Includes shock mount and wood box.

Lauten Audio

About Manufacturer

Based in California, Lauten Audio was founded almost a decade ago by Brian Loudenslager, who saw a need for well thought-out mics with a unique character. Working in collaboration with Grammy nominated engineer and producer Mike Terry and theoretical physicist Dr. Charles Chen, Brian started working on the Horizon, which they wanted to be a unique-sounding work-horse studio microphone. Two years later the Horizon was introduced. 8 years later, Lauten Audio has become known as a leader in original-sounding microphones with unique timbre, and has garnered a loyal following. Lauten audio does not clone classic or vintage microphones, and instead starts with a clean slate to bring you a truly original product.

Specifications

 ♦ Extra-large 31.25mm dual-diaphragm capsule

 ♦ Cardioid, Omni & Figure-8 polar patterns

 ♦ 3 unique voicing options

 ♦ +10dB gain

 ♦ -10dB pad

 ♦ Low noise FET

 ♦ High resolution capacitors

 ♦ Custom wound output transformer

Circuit: Solid-State low-noise FET

Type: Pressure gradient condenser

Polar Pattern: Cardioid, Omnidirectional & Figure-8

Freq. Response: 20Hz-20KHz

Dynamic Range: 120dB minimum

Impedance: <200 ohms

Max. SPL: 0.5%THD@1000Hz: 130dB

Self-noise level: < 12dB(A)

Sensitivity: 16mV/Pa OR -36±2dB 0dB=1V/Pa 1KHz

Special Features:3 unique timbre settings

-10 dB pad & +10dB gain

Requires 48v Phantom power
