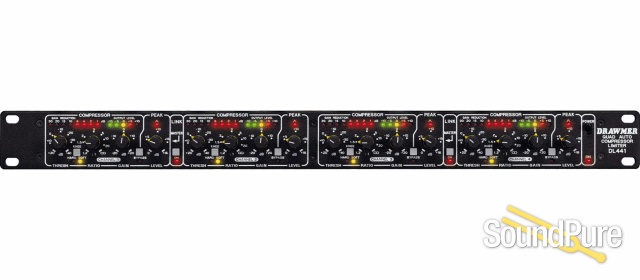

Drawmer DL 441 Compressor  From Drawmer

Quad Compressor

Drawmer

$1,149.00

Retail:  $1,275.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $26/mo.

Manufacturer's Description from Drawmer

The DL441 Quad Auto Compressor/Limiter captures four channels of Drawmer's innovative DL241 'Auto Compressor' in only 1U of rack space. The inclusion of new sophisticated 'automated' circuitry allows the engineer to precisely control both the dynamic range and 'absolute' peak level of the programme instantly, without sacrificing essential control parameters. This perfect balance of features makes the DL441 ideal for use in sound reinforcement and outside broadcast applications where an economy in rack space is essential. Each channel combines a fully professional 'Auto Attack/Release' Compressor with a variable threshold 'Peak Level' Limiter on the output providing a transparent 'endstop'. High resolution bar-graph displays on each channel allow gain reduction and output level to be viewed simultaneously, of particular importance in darkened concert hall or control room situations. Facilities available on the DL441 include: Compressor - The compressor section can be switched to provide either HARD or SOFT knee compression In both the HARD and SOFT modes a Ratio control is available. In the SOFT mode the ratio increases gradually over a 10dB input level range until it reaches the ratio set on the front panel control, thus achieving a more natural sounding compression In HARD mode the compressor provides a more precise means of controlling gain, where the ratio as set on the front panel is applied immediately the signal exceeds threshold. This is particularly useful in many broadcast applications. HARD knee compression can also be used creatively as an effect, particularly in the treatment of drum and guitar sounds, or for giving rock vocals a 'compressed sound'. Auto Attack and Release - removes the need for manual adjustment by producing a response which constantly follows the dynamics of the signal. This enables the DL441 to preserve crisp transients without allowing excessive peaks to occur. A smooth yet lively recovery from compression minimizes side effects such as 'pumping' and 'breathing'. This feature is particularly valuable when the program being treated does not have predictable or consistent dynamics, such as complete mixes, vocals or 'slapped and pulled' bass guitar. Peak Level Limiter - 'Zero Response Time', 'Zero Overshoot' circuitry provides an absolute limit to the peak level of the output signal, adjustable from 0db to +16dB above system level. 'Zero Response Time' transparent limiting means that the DL441 provides complete protection from even the fastest and shortest signal overloads, making the unit ideally suited for speaker system protection in sound reinforcement applications. The sophisticated circuitry will also prevent unpleasant distortion when used for digital mastering. Metering - Comprehensive bar graph displays give 'at a glance' indications of gain reduction, and input/output signal level Gain reduction from 1dB to 30dB is shown simultaneously with signal level from 10dB to +10dB. When the channel is in BYPASS the output bar graph displays the input signal level. Other single LEDs indicate function status of Hard/Soft compression, Bypass, Peak Limiting, Linking, and Power on. Bypass - A fully balanced hard-wire bypass connects the input directly to the output allowing signal to pass through the unit with no power applied. Stereo Linking - Channels 1-2 and/or 3-4 can be stereo linked, where the left channel of the stereo pair becomes the master. Operating Level - The operating level of the DL441 can be instantly switched, independently on each channel, for either +4dBu or 10dBu operation using a rear panel push switch. Input/Output - The DL441 is provided with balanced inputs and outputs on XLR connections.

Drawmer

About Manufacturer

The Beginning: The name Drawmer is synonymous with professional signal processing in recording studio, broadcast and live sound reinforcement environments. The company which is based in Yorkshire, England was founded by Ivor Drawmer whose passion was designing audio circuits. "The whole thing started in 1981," explains Drawmer. "I had been playing keyboards with bands in Yorkshire, but that wasn't going so well and also I wasn't getting any younger. With the encouragement of friends I built a small batch of stereo delay lines, which I called the Multitracker, and that was the start of Drawmer." The DS201 Gate: In 1982 Drawmer revolutionised gating by introducing the DS201 Dual Noise Gate, the world's first 'frequency conscious' noise gate. "It came about from working with a producer called Phil Chapman, who wanted me to build him a gate. Without doing any research I built this thing that switched on, held for a certain amount of time and then just switched off. In practice of course it was no good at all, so I then spent some time going around studios looking at how gates were being used. What really surprised me was how long engineers spent fiddling with gates trying to get them optimally set up and I realised very quickly that a better design was needed." The DS201's unique High-Pass and Low-Pass key filters, comprehensive envelope control and ultra-fast attack time has since made it the 'industry standard' gate throughout the world. The 201 transformed the gate from what had previously been a simple "on/off" device to a powerful creative tool playing a significant role in modern music production. "It was the kind of unit that people discovered uses for and it immediately enabled engineers to do the things they'd always dreamed of with minimum fuss," says Drawmer. Very little has changed to the design of the DS201over the years, and Ivor Drawmer claims it sells as well now as it did back in the early 1980s. "It's astounding where they all go, but to date we've sold tens of thousands of units," he says. The 1960 Mic-Pre/Tube Compressor: In 1984 Drawmer released the original 1960 Mic Pre-Amp/Vacuum Tube Compressor which combined two high performance mic pre-amps, two 'soft knee' tube compressors and an instrument pre-amp with EQ. The 1960 was the first self contained 'front end', and for many recordists who required only one or two microphone input channels it replaced the mixing console, assuring the user of a high quality signal path with a 'distinctive' sound. The concept of the 1960 was to combine the 'warmth and character' of eight active tube stages with the low noise and reliability of solid state electronics. The 1960 has been adopted by producers and musicians around the world and acclaimed as the ultimate direct interface between the sound source and the recording medium. Although the basic design and features of the 1960 remain the same to this day, periodic upgrades have been performed, the latest being the addition of high-pass filters and overload LEDs to the mic pre-amp. As the retro movement has escalated, Drawmer says there has been a dramatic surge in 1960 sales which now puts the unit on a par with the gates. Programme Adaptive: During 1989 Drawmer developed a new proprietary gating circuitry which it entitled 'programme adaptive'. This intelligent auto-circuitry was capable of analysing the dynamic content of the incoming signal and constantly optimising the 'attack', 'hold', 'ratio' and 'release' parameters thereby creating a much smoother gating action than previously available. The first products to incorporate Drawmer's 'programme adaptive' circuitry were the DL241 Auto Compressor released in 1990 and the DS404 Quad Noise Gate released in 1991. Also developed in 1989 was a new limiter circuitry which performed 'Zero Overshoot', 'Zero Response Time' transparent limiting. This was also included in the DL241 Auto Compressor and later the DL441 Quad Auto Compressor Limiter. In 1992 Drawmer took the innovative step of incorporating their newly developed 'Dynamics Spectral Enhancement' circuitry into a high quality compressor/limiter which enabled the user to dynamically boost any high frequency energy lost during the full band compression process. The resulting product, the DL251 Spectral Compressor was enthusiastically received by the mastering, broadcast and studio industries. The 1961 Tube Equaliser: With the new series of compressors becoming established amongst professional users Drawmer decided to expand its range of tube products and in 1994 released the 1961 Vacuum Tube Equaliser. An interesting 1961 design feature was the inclusion of a variable input level control on each of the two channels. This design approach allows the user to control the amount of 'warmth' by deciding how hard to drive the tubes giving a sound as 'clean' as the best discrete solid state designs or as 'hot' as the 'hottest' vintage tube models. The 1962 Digital Vacuum Tube Pre-Amp: The 1962 Digital Vacuum Tube Pre-Amp is a hybrid combining solid state, valve and digital technology. It comprises a high performance stereo analog pre-amp with 3-band EQ, low and high pass filters, low and high frequency dynamic enhancement, limiting and variable tube drive which feeds directly to 24-bit A/D converters. As well as analog outputs the 1962 is equipped with AES/EBU, SP-DIF and Tascam's TDIF or Alesis ADAT digital interfaces. "The concept is to offer very high quality analog with optional processing and tube warmth before converting to digital via the high resolution converters," explains Ivor Drawmer. The MX Series: In contrast to the 'high end' 1962, the MX30 Gated/Comp/Limiter and MX40 Punch Gate are low cost entry level dynamics processors bringing Drawmer's professional processing into a wider M.I. market place. The MX range has recently been expanded with the MX50 Dual De-Esser and MX60 Front End One. Digital Masterflow and Future Developments: Digital technology features strongly in Drawmer's future products, and the new Masterflow range of processing units translate some of Drawmer's existing designs into the digital domain. The company has also joined the growing list of manufacturers working on a series of TDM software modules for Digidesign's Pro Tools System and has recently developed a plug-in for the Mackie D8B Digital Console. Ivor Drawmer now works in conjunction with a team of highly qualified technicians with both analog and digital skills. Their design brief is to continue to create innovative and unique products based on feedback from the Sales and Marketing department and the Drawmer International Distributor network.

Specifications

INPUT IMPEDANCE 20KOhm MAXIMUM INPUT LEVEL +21dBu (+17dB ref. +4dBu) OUTPUT IMPEDANCE 50 Ohm MAXIMUM OUTPUT LEVEL +20dBu BANDWIDTH <12Hz to 35KHz -1dB CROSSTALK @10kHz Better than -80dB @20kHz Better than -75dB OUTPUT BALANCE Better than 40dB 20Hz to 10kHz INPUT CMR Better than 40dB 20Hz to 10kHz NOISE AT UNITY GAIN reference +4dBu Wideband 22Hz - 22KHz CCIR ARM IEC A Q-Pk CCIR AV -90dB -98dB -99dB -100dB -88dB RMS -89dB -96dB -97dB -98dB - DISTORTION 100Hz 1KHz 10KHz Unity Gain, +4dBu Input < 0.02% < 0.015% < 0.035% +14dBu Input, 10dB G.R. < 0.3% < 0.1% < 0.1% POWER REQUIREMENTS 115Volt or 230Volt at 50-60Hz, 13 Watts FUSE RATING 80mA for 230Volt, 160mA for 115Volt CONFORMING TO BS EN 60127-2:1991 SHEETIII FUSE TYPE 20mm x 5mm, Class 3 Slo-Blo, 250Volt working CASE SIZE 482mm (w) x 44mm (h) x 200m WEIGHT (incl packaging) 3.4 Kgs
