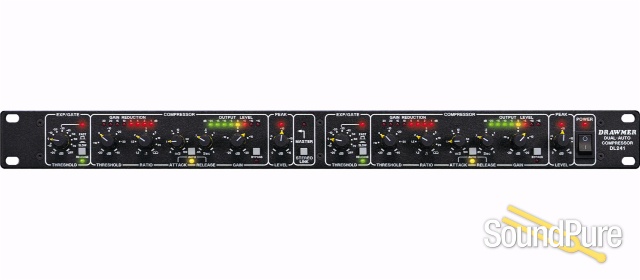

Drawmer DL 241 XLR Compressor  From Drawmer

Compressor w/ XLR style connectors

Drawmer

$1,169.00

Retail:  $1,299.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $26/mo.

Manufacturer's Description from Drawmer

Same as Regular DL 241, but with XLR connectors. The introduction of the Drawmer DL241 Dual Channel 'Auto-Compressor' highlights the beginning of a new generation of dynamic processors which set new standards of sonic excellence. Its combination of features, displays and well designed control functions make it an outstanding product for a vast range of broadcast, sound reinforcement, and recording applications. The DL241 'Auto-Compressor' incorporates many automatic functions allowing the engineer to achieve optimum results in the minimum set up time but does not compromise skilled users with limited controls. Its sophisticated design produces a smooth, transparent and warm sonic performance. Facilities available on the DL241 include: Expander/Gate. Drawmer's unique "Programmed Adaptive Expansion" circuitry allows effective 'single control operation' producing a fast smooth response and eliminating 'chatter' on or around threshold. This design differs from that of conventional Expanders in that the Expansion Ratio, Hold Attack and Release continually adapt themselves to the dynamics of the incoming signal. The Expander/Gate provides 80dB range and variable threshold from +20dB to 70dB with an OFF position. Switching is provided for 'Fast' or 'Slow' release characteristics. The 'Fast' mode can be used for instruments with rapid decay times or for additional tightening of the gating effect. The 'Slow' mode is more suitable for vocals and instruments with longer decay times or can be used to smooth over rough fade outs. A single LED indicates gating action. Compressor. A full Auto Attack/Release Compressor with variable Threshold and Ratio successfully combines the smoothness of the 'Soft Knee' principle with the precision of a 'Ratio' control. The advantage of this combination is that instead of the onset of compression being sudden at the threshold point the ratio increases over a 10dB input level range until it reaches the ratio set on the front panel control, thus achieving a more natural sounding compression. Selectable manual or fully automatic Attack and Release times dramatically extend the application range and user scope of the DL241. Selecting the 'Auto' mode removes the need for manual adjustment and is particularly valuable when the program being treated does not have predictable or consistent dynamics, often the case when processing a complete mix or a virtuoso bass guitar performance. Under manual control the wide range of adjustment available gives the user the ability to create dynamic effects as well as normal compression. Peak Level. 'Zero Response Time', 'Zero Overshoot' circuitry provides an absolute limit to the peak level of the output signal, adjustable from OdB to +16dB above system level. When set to the required level, any excessive peaks will be stopped and the gain momentarily decreased if necessary. The 'Zero Response Time' is essential to avoid unpleasant distortion when mastering for CD or sending any signal to digital equipment. 'Zero Response Time' means that the DL241 provides complete protection from even the fastest and shortest signal 'spikes' (overloads), making the unit also ideally suited for speaker system protection in sound reinforcement applications. Metering. Comprehensive bar graph displays give 'at a glance' indications of gain reduction, and output signal level Gain reduction from 1dB to -30dB is shown simultaneously with signal level from -20dB to +15dB Other single LEDs indicate function status of Gating Acton, Auto Mode, Bypass, Peak Limiting, Stereo Linking, and Power On. Stereo Link. When processing stereo signals, linking should be used to prevent image shifting. This facility ties both channels together. Using channel 1 (left) as the master channel removes the need to duplicate control settings for both channels. Bypass. A fully balanced hard-wire bypass connects the input directly to the output allowing signal to pass through the unit with no power applied. In bypass the VU level meter displays the Input signal. Operating Level. The operating level of the DL241 can be instantly switched, independently on each channel, for either +4dBu or 10dBu operation using a rear panel push switch. Input/Output. The DL241 is available with either XLR connections and fully balanced inputs and outputs, or with stereo jack (TRS) connections, fully balanced inputs and single ended outputs.

Drawmer

About Manufacturer

The Beginning: The name Drawmer is synonymous with professional signal processing in recording studio, broadcast and live sound reinforcement environments. The company which is based in Yorkshire, England was founded by Ivor Drawmer whose passion was designing audio circuits. "The whole thing started in 1981," explains Drawmer. "I had been playing keyboards with bands in Yorkshire, but that wasn't going so well and also I wasn't getting any younger. With the encouragement of friends I built a small batch of stereo delay lines, which I called the Multitracker, and that was the start of Drawmer." The DS201 Gate: In 1982 Drawmer revolutionised gating by introducing the DS201 Dual Noise Gate, the world's first 'frequency conscious' noise gate. "It came about from working with a producer called Phil Chapman, who wanted me to build him a gate. Without doing any research I built this thing that switched on, held for a certain amount of time and then just switched off. In practice of course it was no good at all, so I then spent some time going around studios looking at how gates were being used. What really surprised me was how long engineers spent fiddling with gates trying to get them optimally set up and I realised very quickly that a better design was needed." The DS201's unique High-Pass and Low-Pass key filters, comprehensive envelope control and ultra-fast attack time has since made it the 'industry standard' gate throughout the world. The 201 transformed the gate from what had previously been a simple "on/off" device to a powerful creative tool playing a significant role in modern music production. "It was the kind of unit that people discovered uses for and it immediately enabled engineers to do the things they'd always dreamed of with minimum fuss," says Drawmer. Very little has changed to the design of the DS201over the years, and Ivor Drawmer claims it sells as well now as it did back in the early 1980s. "It's astounding where they all go, but to date we've sold tens of thousands of units," he says. The 1960 Mic-Pre/Tube Compressor: In 1984 Drawmer released the original 1960 Mic Pre-Amp/Vacuum Tube Compressor which combined two high performance mic pre-amps, two 'soft knee' tube compressors and an instrument pre-amp with EQ. The 1960 was the first self contained 'front end', and for many recordists who required only one or two microphone input channels it replaced the mixing console, assuring the user of a high quality signal path with a 'distinctive' sound. The concept of the 1960 was to combine the 'warmth and character' of eight active tube stages with the low noise and reliability of solid state electronics. The 1960 has been adopted by producers and musicians around the world and acclaimed as the ultimate direct interface between the sound source and the recording medium. Although the basic design and features of the 1960 remain the same to this day, periodic upgrades have been performed, the latest being the addition of high-pass filters and overload LEDs to the mic pre-amp. As the retro movement has escalated, Drawmer says there has been a dramatic surge in 1960 sales which now puts the unit on a par with the gates. Programme Adaptive: During 1989 Drawmer developed a new proprietary gating circuitry which it entitled 'programme adaptive'. This intelligent auto-circuitry was capable of analysing the dynamic content of the incoming signal and constantly optimising the 'attack', 'hold', 'ratio' and 'release' parameters thereby creating a much smoother gating action than previously available. The first products to incorporate Drawmer's 'programme adaptive' circuitry were the DL241 Auto Compressor released in 1990 and the DS404 Quad Noise Gate released in 1991. Also developed in 1989 was a new limiter circuitry which performed 'Zero Overshoot', 'Zero Response Time' transparent limiting. This was also included in the DL241 Auto Compressor and later the DL441 Quad Auto Compressor Limiter. In 1992 Drawmer took the innovative step of incorporating their newly developed 'Dynamics Spectral Enhancement' circuitry into a high quality compressor/limiter which enabled the user to dynamically boost any high frequency energy lost during the full band compression process. The resulting product, the DL251 Spectral Compressor was enthusiastically received by the mastering, broadcast and studio industries. The 1961 Tube Equaliser: With the new series of compressors becoming established amongst professional users Drawmer decided to expand its range of tube products and in 1994 released the 1961 Vacuum Tube Equaliser. An interesting 1961 design feature was the inclusion of a variable input level control on each of the two channels. This design approach allows the user to control the amount of 'warmth' by deciding how hard to drive the tubes giving a sound as 'clean' as the best discrete solid state designs or as 'hot' as the 'hottest' vintage tube models. The 1962 Digital Vacuum Tube Pre-Amp: The 1962 Digital Vacuum Tube Pre-Amp is a hybrid combining solid state, valve and digital technology. It comprises a high performance stereo analog pre-amp with 3-band EQ, low and high pass filters, low and high frequency dynamic enhancement, limiting and variable tube drive which feeds directly to 24-bit A/D converters. As well as analog outputs the 1962 is equipped with AES/EBU, SP-DIF and Tascam's TDIF or Alesis ADAT digital interfaces. "The concept is to offer very high quality analog with optional processing and tube warmth before converting to digital via the high resolution converters," explains Ivor Drawmer. The MX Series: In contrast to the 'high end' 1962, the MX30 Gated/Comp/Limiter and MX40 Punch Gate are low cost entry level dynamics processors bringing Drawmer's professional processing into a wider M.I. market place. The MX range has recently been expanded with the MX50 Dual De-Esser and MX60 Front End One. Digital Masterflow and Future Developments: Digital technology features strongly in Drawmer's future products, and the new Masterflow range of processing units translate some of Drawmer's existing designs into the digital domain. The company has also joined the growing list of manufacturers working on a series of TDM software modules for Digidesign's Pro Tools System and has recently developed a plug-in for the Mackie D8B Digital Console. Ivor Drawmer now works in conjunction with a team of highly qualified technicians with both analog and digital skills. Their design brief is to continue to create innovative and unique products based on feedback from the Sales and Marketing department and the Drawmer International Distributor network.

Specifications

DL241 TECHNICAL SPECIFICATIONS (Measurements taken at +4dBu operating level where applicable) INPUT IMPEDANCE 20KOhm MAXIMUM INPUT LEVEL +20dBu OUTPUT IMPEDANCE 50 Ohm (bal), 100 Ohm (unbal) MAXIMUM OUTPUT LEVEL +20dBu BANDWIDTH <10Hz to 22KHz -1dB NOISE AT UNITY GAIN with Expander Off Wideband 22Hz - 22KHz CCIR ARM IEC A Q-Pk CCIR AV -90dB -95dB -95dB -97dB -84dB RMS -88dB -93dB -93dB -95dB -82dB DISTORTION 100Hz 1KHz 10KHz Unity Gain, +4dBu input < 0.03% < 0.02% <0.03% +14dBu input, 10dB Gain Red. < 0.1% < 0.1% < 0.1% POWER REQUIREMENTS 115Volt or 230Volt at 50-60Hz, 9 Watts FUSE RATING 32mA for 230Volt, 63mA for 115Volt CONFORMING TO BS EN 60127-2:1991 SHEET III FUSE TYPE 20mm x 5mm, Class 3 Slo-Blo, 250Volt working CASE SIZE 482mm (w) x 44mm (h) x 200mm (d) WEIGHT (incl packaging) 3.2 Kgs
