From WesAudio

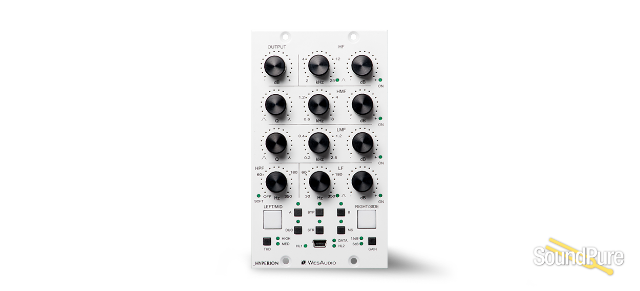

_HYPERION is fully analog parametric EQ with +24dBu of headroom. It features a lot of innovative improvements that no other processor on the market provides. Its innovative design utilizes 15 VCAs per channel to provide essentially noiseless parameter changes and very musical nature. _HYPERION is next product in NG500 line where total recall is implemented through front panel USB socket or _TITAN chassis.
INNOVATIVE HARDWARE CIRCUIT
_HYPERION is fully analog device with +24 dBu of headroom. It’s innovative design utilizes 18 VCAs per channel.
4-BAND EQ
4-Band EQ with switchable gain range for 5db or 15dB boost or cut per band:
High band – 2kHz to 25kHz (bell or shelf)
High-Mid band – 600Hz to 8Khz with full Q control
Low-Mid band – 200Hz to 2.5Khz with full Q control
Low band – 30 Hz to 350Hz (bell or shelf)
STEREO / DUAL MONO / MID-SIDE operation modes
_HYPERION can work in 3 different modes, including MS, which makes it perfect solution for multiple applications!
_hyperion_hpf copy
HIGH PASS FILTER
HPF with 12dB/Oct or 6 dB/Oct slopes
EACH BAND FEATURES ITS OWN BYPASS SWITCH
For easy comparison, each band can by independently bypassed, dialing new sounds in, has never been that easy!
THD – ADD COLOR TO YOUR MIXES
THD stands for “Total harmonic distortion” and it allows to saturate your signal with beautiful analog color.
FLEXIBLE DAW / LIVE PLUG-IN control for instant recall
Stereo plugin which handles all modes of operation – Stereo/Dual Mono/Mid-Side
Mono plugin where two separate instances can connect to same hardware managing each channel separately
IN/OUT metering with clip detection
Flexible parametric EQ GUI
Plugin comes in AAX/AAX DSP/VST3/VST2/AU
Features summary:
+24dBu of headroom
Stereo / Dual mono / Mid/Side operation mode
4-Band EQ with switchable gain range for 5db or 15dB boost or cut per band:
High band – 2kHz to 25kHz (bell or shelf)
High-Mid band – 600Hz to 8Khz with full Q control
Low-Mid band – 200Hz to 2.5Khz with full Q control
Low band – 30 Hz to 350Hz (bell or shelf)
HPF with 12dB/Oct or 6 dB/Oct slopes
Each band features its own Bypass switch
Essentially Noiseless parameter changes
Proprietary THD implementation
Flexible DAW/Live plug-in control for instant recall
12 touch sensitive encoders allows to record automation
True bypass
In and OUT metering with clip detection
A/B compare feature
Frequency response: 10Hz-150kHz (-2dB)
THD+N all bands gain “0”: 0.003% (1kHz,0dBu)
THD+N +15dB band boost: <0.15% (1kHz,0dBu)
Input impedance: 10kohm
Output impedance: <100ohm
Max signal level: +24dBu
Crosstalk:< -100dB
THD (MID switch): 1%
THD (HIGH switch): 2.5%
Power consumption: 150mA per rail
Dimensions : 76x133x158mm
Warranty: 2 years
Unit needs to warm up for about 5 minutes before usage as its temperature may affect some internal variables – like frequencies of each band, and very slightly gain and Q settings.
Each band can boost or cut in configurable gain mode (It affects also OUTPUT control):
15dB boost or cut in 0.25 dB steps,
5dB boost or cut in 0.083 dB steps,
Each frequency control has predefined amount of steps in logarithmic scale:
HF frequency – 256 steps,
HMF frequency – 256 steps,
LMF frequency – 256 steps,
LF frequency – 200 steps,
HPF frequency – 128 steps.
