API Audio 550A 500 Series EQ  From API

Single space 500 series discrete 3 band EQ packed full of API's legendary analog tone!

API Audio

$1,195.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $27/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

Manufacturer's Description from API

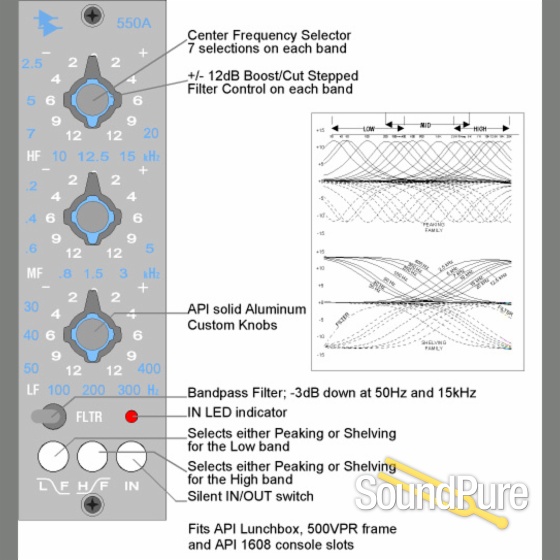

Features

  • 3 bands of classic API equalization
  • Each band offers 7 API selected frequency centers
  • Reciprocal and repeatable filtering
  • Maximum 12 dB of boost/cut per band
  • EQ Band 1 and 3 offer shelf/peak switching
  • "Proportional Q" narrows filter Q at extremes
  • Traditional API fully discrete circuit design
  • High headroom +30 dB clip level

Few equalizers enjoy the respect and admiration of the coveted API 550A. Designed by the now-legendary Saul Walker in the late '60s, the discrete 550A was first used as a modular OEM equalizer. As the industry rapidly embraced the sonic quality of the 550A, it quickly found its way into many custom console designs by Frank DeMedio and other leading engineers. Many of these consoles are still in use today.

Forty years later, the 550A remains the standard against which other EQs are measured, and it has played a major role in the recording industry for decades. Still copied but never duplicated, the 550A became API's standard channel module EQ when the company began manufacturing consoles in 1971. With virtually all existing units spoken for, popular demand for this EQ resulted in API finally resuming production in 2004.

The 550A provides reciprocal equalization at 21 points in 7 steps of boost to a maximum of 12dB of gain at each point. The fifteen equalization points are divided into three overlapping ranges. The high and low frequency ranges are individually selectable as either peaking or shelving, and a band-pass filter may be inserted independently of all other selected equalization settings. Frequency ranges and boost/cut are selected by three dual-concentric switches, and a pushbutton "in" switch allows the EQ to be silently introduced to the signal path. A small toggle switch is used to insert the band-pass filter into the 550A.

The combination of Walker's incomparable 2520 op amp and his "Proportional Q" circuitry gives the 550A user an uncomplicated way to generate acoustically superior equalization.

With the long-awaited reissue of this unit, an EQ that has had such a part in the history of recording is continuing to make history in today's music.

API Audio

About Manufacturer

API (Automated Processes, Inc.) is world famous for its all-discrete audio products: studio and broadcast mixing consoles, and a full line of rack mount mic preamps, equalizers and processors. It all began with a dream. It was 1968. The company: Automated Processes Inc., formed by men with a vision. Best known for their now legendary "2520 amplifier", this unique amp has been and will continue to be the heart of all API discrete products. It continues to provide reliability and sonic purity unmatched by the competition. The resulting console met the needs of the music, commercial and broadcast industry. API became the leading audio broadcast console manufacturer for radio and television networks and high profile stations. In addition, recording studios, large and small, began using API.....and receiving rave reviews from engineers and producers. There are over 700 API consoles across the nation and around the world, including the three major networks. Over thirty years later, many of these consoles are still in daily use in some of the most prestigious recording and broadcast facilities in the world because, to date, there are few, if any consoles of equal sound quality at a cost-effective price.

Specifications

Specifications

Input Impedance:

66 kΩ high level

17 kΩ low level

Output Impedance:

Less than 85Ω (transformer isolated)

Nominal Operating Level:

–15 dBm to +12 dBm

Insertion Loss:

None (bridging)

Frequency Response, Unequalized:

±0.5 dB 30 Hz to 20 kHz

Noise:

Unequalized, output noise of –90 dBm, high level strapping and

–98 dBm, low level strapping, 20 Hz to 20 kHz unweighted

Distortion:

.05% THD max, 30 Hz to 20 kHz @ +4 dBm

.07% THD max, 30 Hz to 20 kHz @ +18 dBm

Clipping Level (3% THD):

+30 dBm

Power Requirement:

±15 volts to ±18 volts @ 70 ma

Controls:

Dual Concentric Rotary: LF select: 30, 40, 50, 100, 200, 300,

400 Hz and stepped degree of equalization –12dB to +12 dB



Dual Concentric Rotary: MF select: 200, 400, 600, 800, 1500,

3000, 5000 Hz and stepped degree of equalization –12dB to

+12 dB



Dual Concentric Rotary: HF select: 2500, 5000, 7000, 10,000,

12,500, 15,000, 20,000 Hz and stepped degree of equalization

–12 dB to + 12 dB



All equalization is in steps of 2, 4, 6, 9 and 12 dB either plus or minus

Toggle Switch:

50 Hz to 15 kHz band-pass filter In or out

Push Button: LF range Peak or Shelf

Push Button: HF range Peak or Shelf

Push Button: Equalization In or Out

Tally light when In

Connector:

30 pin PC connector supplied

Size:

1.5" X 5.25" X 7.75" Deep

Size (Boxed for Shipping):

4.5" X 6.25" X 10.25"

Actual Weight:

2 lbs.

Shipping Weight:

2.53 lbs.
