From Universal Audio

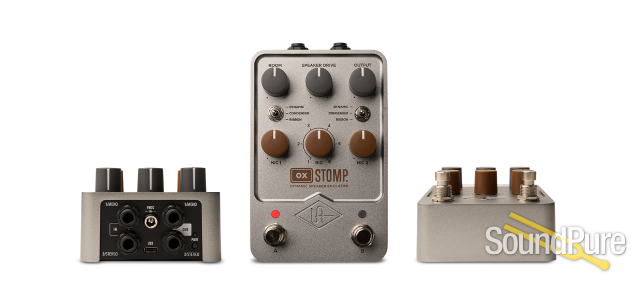

Standing on the shoulders of our award-winning OX Amp Top Box, OX Stomp Dynamic Speaker Emulator pedal gives "amp-in-a-box" modelers a packed pro studio full of authentic-sounding guitar cabinets, mics, room modeling, and studio-quality effects — right at your feet.
| Power requirements (power supply sold separately) | Isolated 9VDC, center-negative, 400mA minimum |
|---|---|
| Inputs | 2 x ¼" unbalanced TS (input 2 for stereo connections) |
| Outputs | 2 x ¼" unbalanced TS (output 2 for stereo connections) |
| Bypass modes (switchable within UAFX Control app) | Buffered bypass |
| Input impedance | 500 Kilohms (Mono In) 1 Megohms (Stereo In) |
| Output impedance | 500 Ohms |
| Maximum input level | 12.2 dBu |
| Maximum output level | 12.1 dBu |
| Frequency response | 20 Hz to 20 kHz, ±1 dB |
| USB Type-C | For registration and firmware updates via computer |
| Wireless technology Transmitted Frequency Range Maximum Output Power | Bluetooth v5 2.400 GHz – 2.4835 GHz +4.35 dBm |
| Dimensions (with knobs and protrusions) | Height: 2.56 inches, 6.5 cm Width: 3.62 inches, 9.2 cm Depth: 5.55 inches, 14.1 cm |
| Weight (unboxed) | 1.3 lbs 0.588 kg |
