Sound Pure's Take
Crafted for the discerning producer and guitarist, the TONEX Capture is an essential tool and a genuine investment in your studio's sonic potential. This ingenious device, built like a tank, is the ultimate 3-in-1 solution for tone modeling, re-amping, and amp recording, allowing you to beautifully and faithfully replicate your favorite tube amps and pedals. With its galvanic isolation and ground-lift, the TONEX Capture ensures every nuance is preserved, providing a pristine, hum-free signal for your audio interface. Use it to flawlessly capture your gear's sound or to creatively re-amp your tracks, injecting a dose of authentic analog magic. This is more than a simple box—it's the missing link to effortlessly immortalizing your most cherished guitar tones in stunning clarity!
From IK Multimedia
TONEX Capture gives you the freedom to capture your rig any way you want. Connect your amp, combo or pedal to your audio interface and use the TONEX Machine Modeling software to create a high-quality Tone Model of your rig you can use anywhere.
Three accessories in one: Tone Modeling, amp recording and reamplification
Connects your audio interface to your amps and cabinets with the correct signal level
Capture your amp tone pre-cabinet without the need for microphones or load boxes
Ground lift and galvanic isolation eliminate hum and noise
Ideal for capturing Tone Models, also the perfect tool for reamplification
Comes with TONEX SE (includes 200 Tone Models)
TONEX Capture is an all-in-one accessory that makes it easy to capture your real amp’s tone perfectly, with or without microphones. It’s the ideal way to tone model your gear using the TONEX software, but also the perfect reamplification device.
General Features
- Functionality
- Acts as a 3-in-1 accessory for Tone Modeling, amp recording, and reamplification.
- Purpose
- Designed to connect your audio interface to your amps, cabs, and pedals with the correct signal levels, allowing for direct capture without the need for microphones or load boxes.
- Ground Lift
- Features a switchable ground lift and galvanic isolation to eliminate hum and noise.
- Attenuation
- Includes adjustable attenuation controls on both the input and output to ensure proper signal levels.
- Included Software
- Comes with TONEX SE, which includes 200 premium Tone Models.
Connections

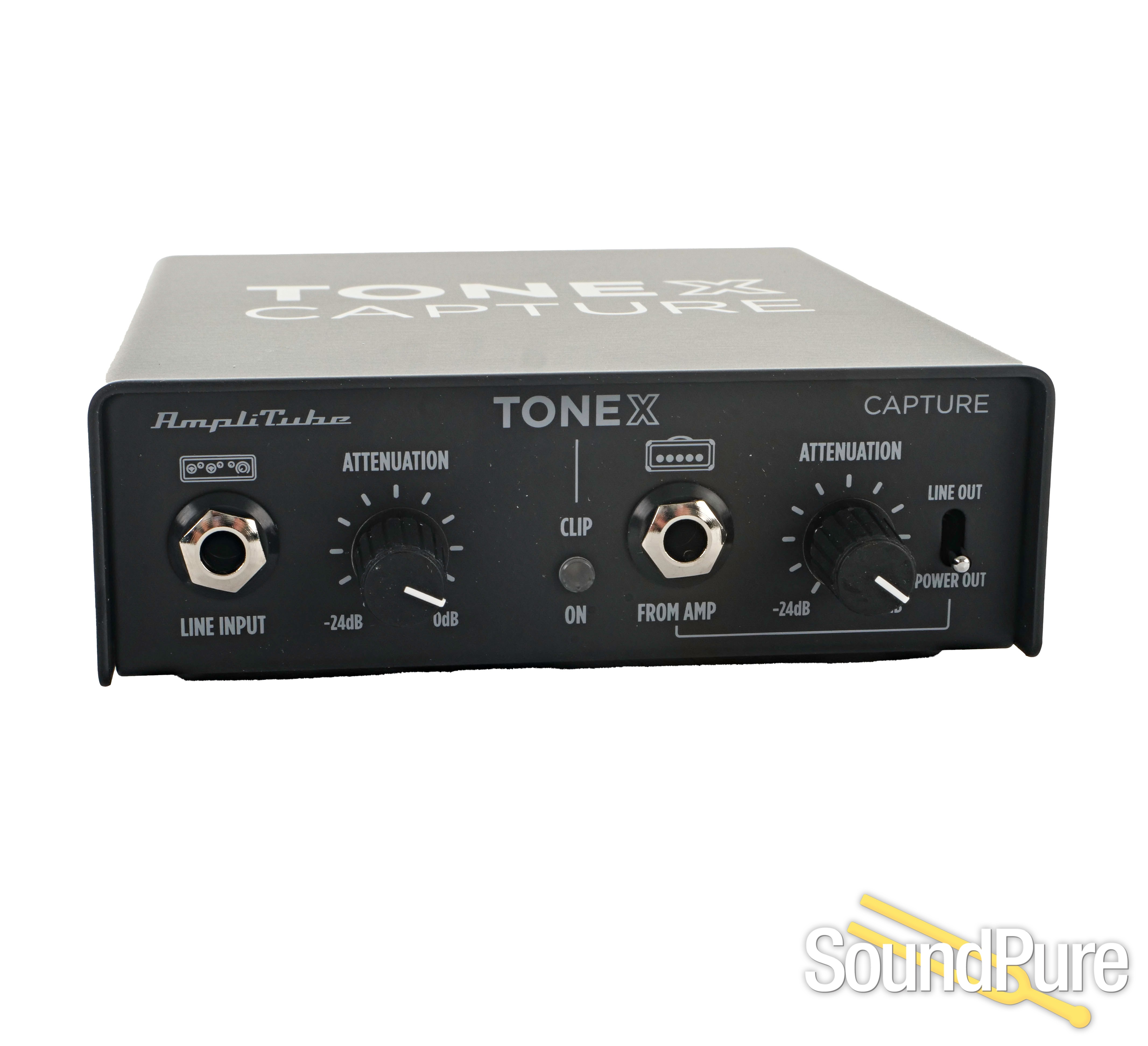

- Inputs
- 1 x 1/4" Line Input (for sending a signal from your audio interface to the amp).
1 x 1/4" From Amp (for receiving a signal from the amplifier's power or preamp output).

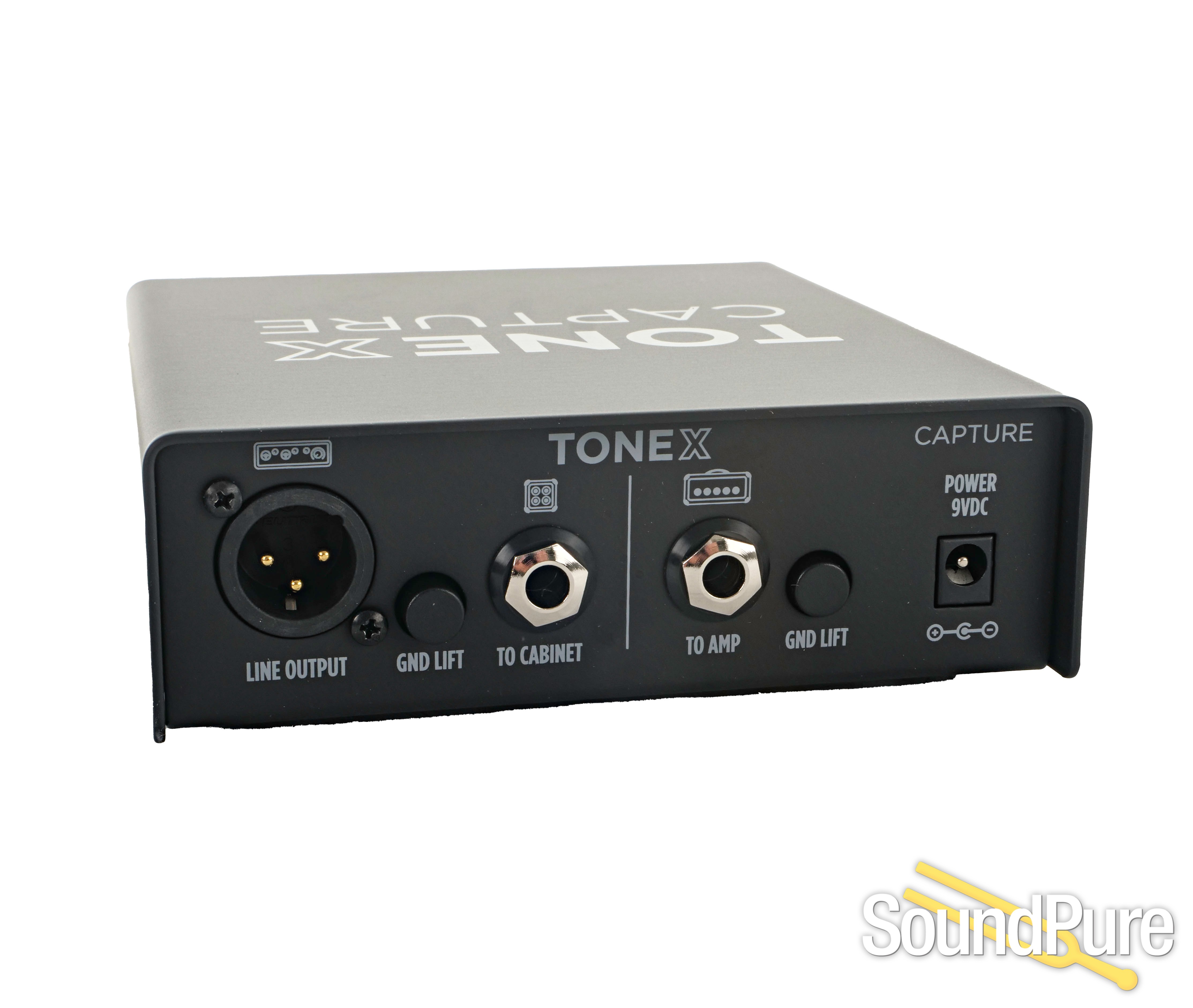

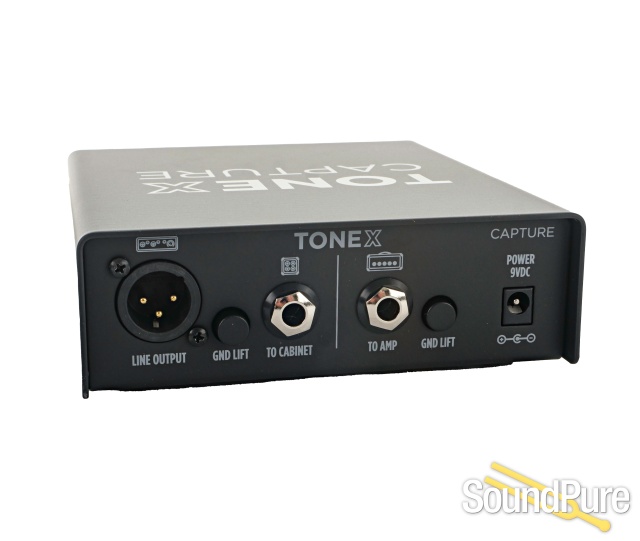

- Outputs
- 1 x 1/4" To Amp (for sending a signal to the amplifier's input).
1 x 1/4" To Cabinet (for connecting to a speaker cabinet or load box).
1 x XLR Line Output (for sending the captured signal to an audio interface).
Audio & Performance
- Frequency Response
- Wide frequency response from 5 Hz to 30 kHz.
- Phase Deviation
- Zero phase deviation from 20 Hz to 20 kHz.
- Level Control
- Attenuation controls on both the input and output can be adjusted by up to 24 dB.
Physical & Power
- Type
- Active DI and re-amping box.
- Power

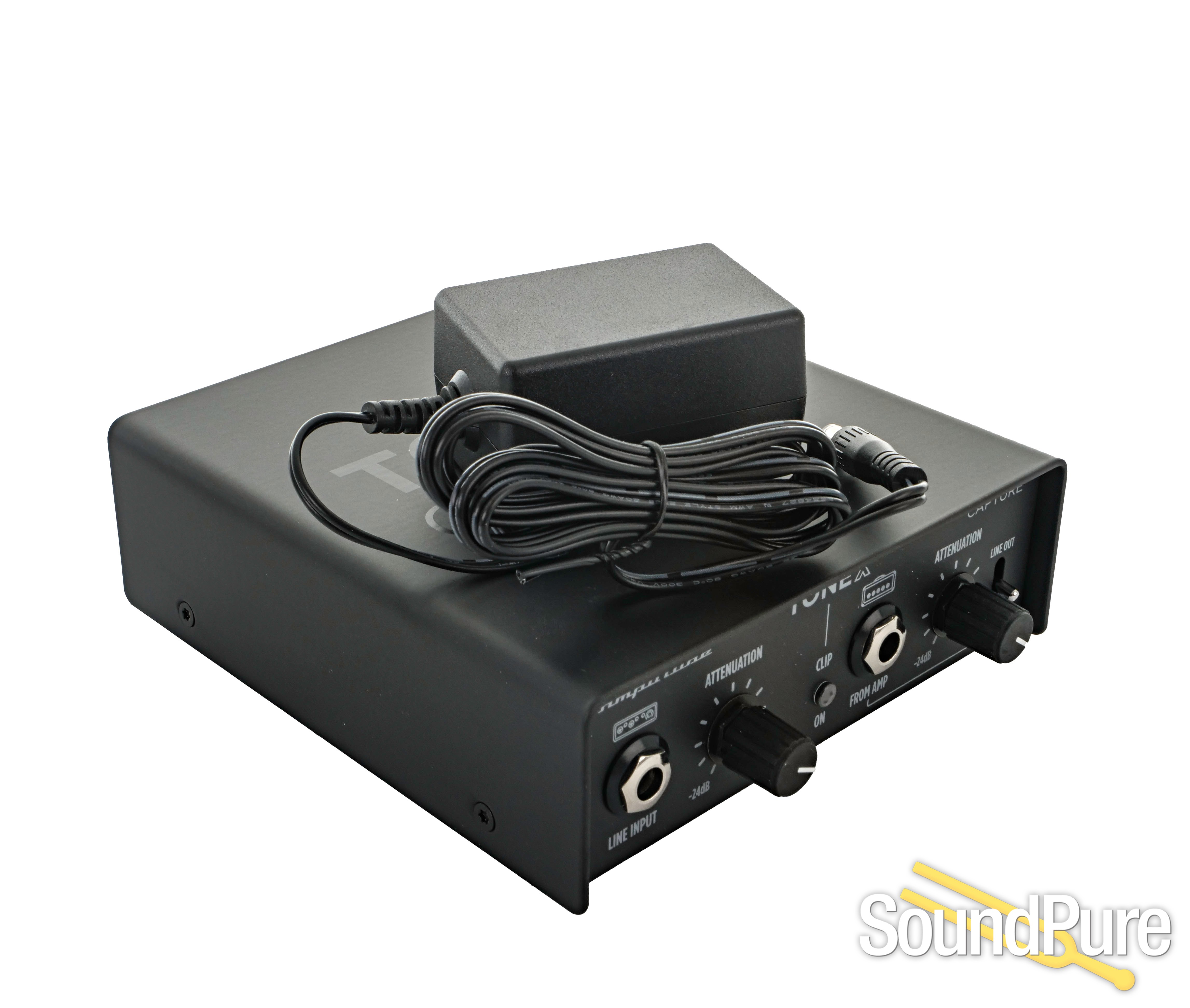

- 9V DC, center-negative power supply (included).
- Dimensions
- 137mm (W) x 158mm (D) x 45mm (H) / 5.39" x 6.22" x 1.77".
- Weight
- Approximately 980g (2.16 lbs).
