From TK Audio

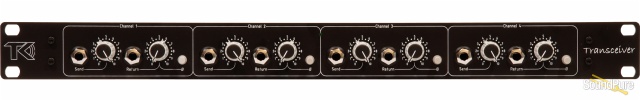

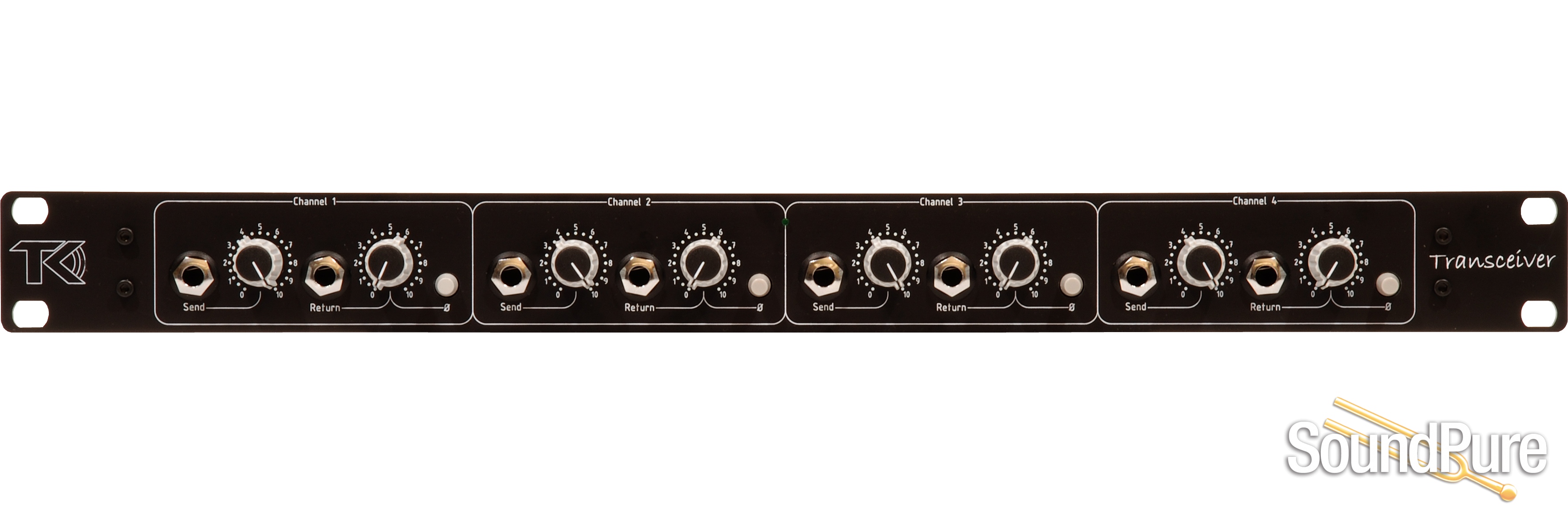

The Transceiver is a four channel insert station. The main function is to convert +4dB balanced signals to unbalanced and back again. Each channel has a send level, the return has a gain control and a polarity switch. Among other things you can use The Transceiver to do the following:
- It's an insert station. Insert unbalanced gear such as guitar pedals and old echo fx into your DAW or console.
- It's an active DI-box with up to 20dB gain. Plug your favourite instrument into your collection of vintage gear via The Transceiver.
- It's a reamp tool.
- It's a Swiss Army Knife on stage. Hook up balanced gear on stage between your instrument and amp.
Download the product sheet for some hook-up ideas.
Features:
- Send: TRS jack
- Send level: 0 to full
- Return: TRS jack
- Return gain: 6 to 20dB
- Polarity: flips the polarity of the return signal
- Max balanced input
- +27,5dBu
- Max unbalanced send level
- +22dBu
- Max return input level
- +22dB
- Return gain
- 0-20dB
- Return input impedance
- 1Mohm
- Max balanced output
- +27,5dBu
- Send frequency response
- 10-100kHz +/-0,1dB
- Send THD+N @ 1kHz
- less than 0,001%
- Return frequency response
- 10-100kHz -0,2dB (at 10Hz)
- Return THD+N @ 1kHz
- less than 0,003%
Rear panel has four XLR inputs and four XLR outputs.
Internal, regulated powersupply with a toroidal transformer
115 or 230V, not user selectable.
