"Fine tuning EQ - all the way from the lows to the highs"
Our new TK-lizer is a Baxandall type of EQ, high and low bands are selectable between shelving or bell, very useful for fine tuning of your low’s, mid’s and high’s.
The EQ also has a built in M/S function which lets you process the mid and side signals separately.
You can also affect the stereo width of your music by using the level controls in M/S mode.
The three bands are based on the legendary Baxandall circuit from the 50’s.
We like to thank Wayne Kirkwood at KA Electronics for letting us use his genius M/S circuit!!
♦ Dual mono 3-band Baxandall style EQ.
♦ 12dB octave high pass filter (the highest HPF frequency 100Hz which is for mono-ing bass in M/S mode, this frequency can easily be change by the customer).
♦ All controls are stepped for repeatability and easy channel tracking.
♦ Broad Q.
♦ High and Low band selectable between shelving or bell.
♦ Built in M/S function.
♦ Electronically balanced inputs and outputs.
♦ Max output level before clip: 27dBu.
• Low freq: 28Hz, 48Hz, 72Hz, 132Hz, 195Hz, 255Hz, switchable between shelf or bell.

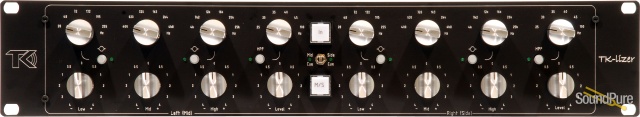

• Mid freq: 400Hz, 630Hz, 870Hz, 1.3kHz, 2.4kHz, 4k8kHz. (picture shows 720Hz not 870Hz)
• High freq: 4kHz, 7.2kHz, 12kHz, 16kHz, 20kHz, 25kHz, switchable between shelf or bell.
• HPF freq: 25Hz, 30Hz, 35Hz, 40Hz, 45Hz, 100Hz, 12dB / octave.
• Boost/cut: -4dB, -3dB, -2dB, -1dB, -0.5dB, 0dB, +0.5dB, +1dB, +2dB, +3dB, +4dB.
• Level: -4dB, -3dB, -2dB, -1dB, -0.5dB, 0dB, +0.5dB, +1dB, +2dB, +3dB, +4dB.
• EQ in/out.
• M/S in/out.
• Switch for separate monitoring of the mid or side signal.
THD+N @ +4dBu: 0.003%
THD+N @ +26dBu: 0.0013%
THD @ +4dBu: 0.002%
THD @ +26dBu: 0.0013%
Frequency responce: 20Hz-20kHz: +/-0dB
Frequency responce: 20Hz-80kHz: -0.3dB
Internal, regulated powersupply with a toroidal transformer
115 or 230V, not selectable.
