TELEFUNKEN Elektroakustik M60 FET Cardioid Microphone, from TELEFUNKEN

Product image + -
TELEFUNKEN Elektroakustik M60 FET Cardioid Microphone TELEFUNKEN Elektroakustik M60 FET Cardioid Microphone TELEFUNKEN Elektroakustik M60 FET Cardioid Microphone TELEFUNKEN Elektroakustik M60 FET Cardioid Microphone TELEFUNKEN Elektroakustik M60 FET Cardioid Microphone TELEFUNKEN Elektroakustik M60 FET Cardioid Microphone
TELEFUNKEN Elektroakustik M60 FET Cardioid Microphone
TELEFUNKEN Elektroakustik M60 FET Cardioid Microphone TELEFUNKEN Elektroakustik M60 FET Cardioid Microphone TELEFUNKEN Elektroakustik M60 FET Cardioid Microphone

TELEFUNKEN's first non-tube condenser! The M60 offers an incredibly honest representation of the sound source and impeccable detail, resulting in an unhyped yet musical small diaphragm mic that portrays the instrument exactly how it is.

Ships Quick!
Usually ships 3 - 5 business days after order processed.

1 similar version(s) available to choose from

More text

In this video comparison, we put four small diaphragm condenser microphones to the test, as we demonstrate the TELEFUNKEN Elektroakustik M60, the DPA 2011A, the Josephson C42, and the Peluso P84. Can ...

Less text

In this video comparison, we put four small diaphragm condenser microphones to the test, as we demonstrate the TELEFUNKEN Elektroakustik M60, the DPA 2011A, the Josephson C42, and the Peluso P84. Can you tell which one's which?

More text

In this video, Sound Pure guitar specialist Sam Kelly plays a Lowden F-25C acoustic equipped with an L.R. Baggs Anthem Acoustic Pickup through the L.R. Baggs Synapse PA System. SIGNAL CHAIN INFO: G...

Less text

In this video, Sound Pure guitar specialist Sam Kelly plays a Lowden F-25C acoustic equipped with an L.R. Baggs Anthem Acoustic Pickup through the L.R. Baggs Synapse PA System. SIGNAL CHAIN INFO: Guitar: Lowden F-25C w/ L.R. Baggs Anthem pickup } L.R. Baggs Session DI } Synapse w/ Medium Reverb. Peluso P84 Microphone (on guitar) } Synapse w/ Medium Reverb. Telefunken M60 Mic Pair with Omni Capsules (on the Synapse) } Avalon 2022 Preamp. Neumann TLM 107 Microphone (on the synapse) } Millennia HV-3D Preamp. Synapse DIRECT OUT } Vintech X73i Preamp. ALL Preamps } Lynx Aurora 16 Converter.

Eastman T184MX-LS Black Semi-Hollow #10455113 (Used) Quick n' Dirty

More text

In this video, Sound Pure electrics specialist Michael Buckley tests out the Eastman T184MX-LS Black Semi-Hollow #10455113 (Used) with a Carr Amplifiers Rambler 28W 1x12 Combo Amp, a Telefunken Elektr...

Less text

In this video, Sound Pure electrics specialist Michael Buckley tests out the Eastman T184MX-LS Black Semi-Hollow #10455113 (Used) with a Carr Amplifiers Rambler 28W 1x12 Combo Amp, a Telefunken Elektroakustik M60 FET Cardioid Microphone, and a Shure KSM313/NE Dual-Voice Ribbon Mic with Roswellite Ribbon.

Eastman AR805CE-SB Spruce/Maple Sunburst Archtop #11045302 Quick n' Dirty

More text

In this video, Sound Pure archtop specialist Michael Buckley tests out the Eastman AR805CE-SB Spruce/Maple Sunburst Archtop #11045302 with a Carr Amplifiers Rambler 28W 1x12 Combo Amp, a Telefunken El...

Less text

In this video, Sound Pure archtop specialist Michael Buckley tests out the Eastman AR805CE-SB Spruce/Maple Sunburst Archtop #11045302 with a Carr Amplifiers Rambler 28W 1x12 Combo Amp, a Telefunken Elektroakustik M60 FET Cardioid Microphone, and a Shure KSM313/NE Dual-Voice Ribbon Mic with Roswellite Ribbon.

Eastman AR680CE John Pisano Signature Archtop #13650301 Quick n' Dirty

More text

In this video, Sound Pure archtop specialist Michael Buckley tests out the Eastman AR680CE John Pisano Signature Archtop #13650301 with a Carr Amplifiers Rambler 28W 1x12 Combo Amp, a Telefunken Elekt...

Less text

In this video, Sound Pure archtop specialist Michael Buckley tests out the Eastman AR680CE John Pisano Signature Archtop #13650301 with a Carr Amplifiers Rambler 28W 1x12 Combo Amp, a Telefunken Elektroakustik M60 FET Cardioid Microphone, and a Shure KSM313/NE Dual-Voice Ribbon Mic with Roswellite Rib

With over a year and half of development and beta testing with top recording engineers, the newly designed M60 FET (Field Effect Transistor) small diaphragm microphone is TELEFUNKEN Elektroakustik's first non-vacuum tube, FET-based solid-state condenser microphone. The M60 FET Series is designed to utilize the same interchangeable TK6x capsules as the TEC Award-winning ELA M 260 small diaphragm tube microphone.

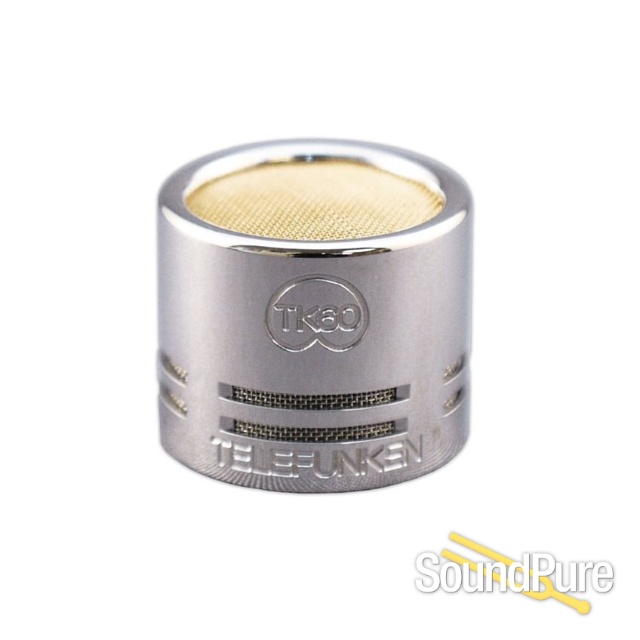

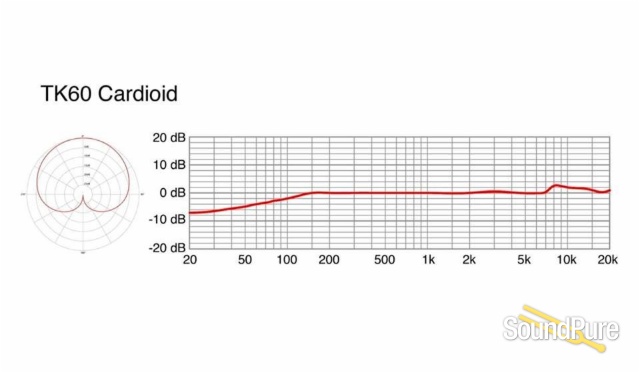

The M60 FET Cardioid package includes one M60 amplifier paired with a TK60 cardioid polar pattern capsule. The TK60 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The frequency response is flat from 150 Hz to 7 kHz, with a smooth, airy presence peak at 8 kHz making it ideal for drum overheads, hi-hat and ride cymbals, piano, acoustic guitar, and other acoustic instruments.

Utilizing a unique proprietary circuit topology, this re-interpretation of the classic FET mic amplifier produces an exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-plugged into gold-plated circuit board traces to provide an ultra-clean true Class A discrete amplifier with a frequency response of +/- 2dB from 20 Hz to 50 kHz. The output is matched with a custom American-made transformer that offers an especially low self-noise and a typical THD+N of 0.015% or better, making it ideal for critical recording applications.

The M60 FET's incredibly quick transient response captures nuances and subtleties with impressive precision and clarity. This results in an extremely detailed sonic image with definition and presence, perfectly suited for the complex character of stringed instruments and percussive sources.

The M60 FET amplifier body is finished in a durable, lightly textured black powder coat adorned with the historic TELEFUNKEN diamond badge. The microphone's XLR connector shell complements the look with a matte black nickel-plated finish engraved with the model and serial number. The TK6x capsules feature a bright nickel-plated enclosure with a fine gold mesh pattern.
The M60 FET Cardioid system ships complete with an SGMC-5R 5-meter XLR cable with right angle female connector, M761 elastic shock mount, and a foam windscreen, all packed in an FC61 zipper carrying case.
  • TypeCondenser Pressure Gradient
  • CapsuleTK60
  • Frequency Range20Hz / 20kHz
  • Polar PatternCardioid
  • Sensitivity8.6mV/PA +/-1db
  • THD at 1kHz at 1Pa<0.10% 1kHZ at 1Pa
  • Maximum SPL130db SPL (1%THD)
  • Self Noise<19dB-A
  • Size5 1/2" (140mm) length x 13/16" (21mm) diameter
  • Weight4.2 oz (119g)
  • Powering AlternativePhantom Power
  • Supply Current48 volts
  • Connected ViaXLR-3
  • Supplied AccessoriesM761 Elastic Mount, SGMC-5R XLR cable
  • Optional AccessoriesFC61 Molded Zipper Case
