Item selected is discontinued (details below). Related products available now:
View more Vacuum Tube View more from TELEFUNKEN

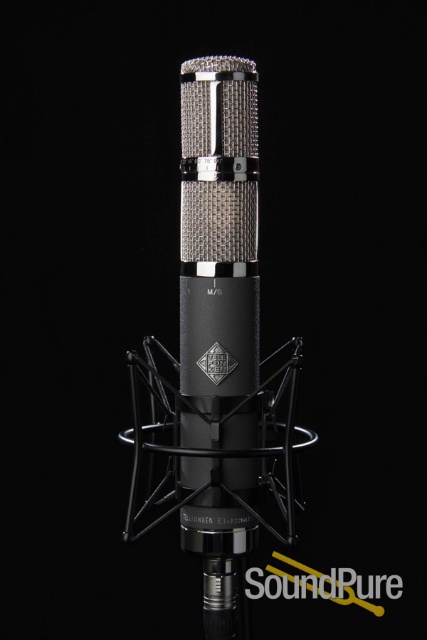

TELEFUNKEN Elektroakustik AR-70 Stereo Tube Mic  From TELEFUNKEN

The AR-70 Stereo is an advanced stereo version of Telefunken’s popular AR-51 tube condenser microphone.

TELEFUNKEN Elektroakustik

Talk with a Specialist

TELEFUNKEN ELEKTROAKUSTIK Multi-Track Session with The Olympic Ass Kicking Team

Terry Anderson and The Olympic Ass Kicking Team (or The OAK Team for short) recorded their new song "Girls with Glasses" during a weekend session with Fletcher at Sound Pure Studios for TELEFUNKEN'S multitrack session mix contest. Girls with Glasses was recorded with all TFunk microphones including: M80, M81, M82 prototype, ELA M 260 with both omni and cardioid capsules, AR-51, AK-47 MkII, AR-70 Stereo mic, U48, and U47. Check out the full version of "Girls with Glasses" by watching our video of the session. The session was was engineered and mixed by Fletcher. If you have any questions about the gear used in this recording, call the engineers at Sound Pure today. Or, if you would like to enter T-Funk's mix contest, visit their website and download the multitrack files to mix the song yourself!

Manufacturer's Description from TELEFUNKEN

The R-F-T AR-70 is an advanced stereo version of our popular AR-51 tube condenser microphone. It features a matched pair of 1" dual sided capsules (the same capsules found in the AR-51), a New Old Stock ECC81 vacuum tube (the same tube found in the AR-51), and a matched pair of European made custom wound T14/1 output transformers (the same transformers found in ELA M 250/251 and AR-51 microphones) all in a single, easy to setup system.

The AR-70 includes one fixed cardioid capsule on the bottom, and on top, a capsule wired for remote multi polar pattern capabilities. This allows the mic to perform multiple stereo recording techniques, as well as a standard single channel monophonic recording. In stereo mode the AR-70 can be set up in standard X/Y configuration, with each capsule orientated 90 degrees away from each other, resulting in a perfectly co-incidental pair.

With the option of the multi-pattern functionality of the top capsule, the mic can also be used in Mid-Side (M/S) technique, where the lower capsule is fixed in cardioid, and the upper capsule is rotated 90 degrees and set to the Figure 8 pick-up pattern.

One of the most unique ways to use the R-F-T AR-70 is in "dual mono" mode, which can lead to all kinds of interesting textures for vocals. By running the outputs into two different microphone pre-amplifiers, the user can now have one capsule set up to sound its best on quiet passages in a vocal and the other for louder passages.

If the user runs about 10db more gain on the microphone pre-amplifier for the capsule that is set up to record quiet passages, then both outputs can be recorded separately and blended later; or a compression device can be used on the pre-amplifier that is set up for the quieter passages which will net about 12-15db of gain reduction as the singer gets louder. These two outputs can be summed and the resulting signal will maintain a relatively constant level while being automatically combined for optimal capture the performance.

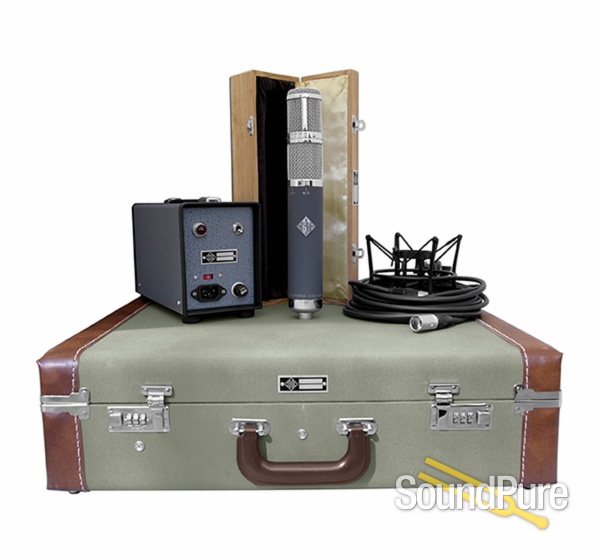

Each R-F-T AR-70 microphone is supplied with a flight case, custom 7pin cable, wooden mic box, Power Supply with remote polar pattern selector, and when registered, a 4-Year fully transferable Limited Warranty.

TELEFUNKEN Elektroakustik

About Manufacturer

TELEFUNKEN Elektroakustik of South Windsor, CT has been following the tradition of excellence and innovation set forth by the original TELEFUNKEN GmbH of Germany that began over 100 years ago.

TELEFUNKEN Elektroakustik's origins began in 2000 when owner Toni Fishman acquired the rights to the name and diamond logo for use in North America. The company began with the reverse engineering of a single microphone part: the ELA M 251 polar pattern selector. Mr. Fishman purchased an original Telefunken ELA M 251 for use in his recording studio, but when he received it he discovered that the polar pattern switch was no longer functional. Realizing that this was a common issue with the original units, the idea to recreate it was born.

The switch was reverse engineered and brought into production for other 251 owners with the same issue. With one part down, the goals were set high to successfully reverse engineer the entire microphone exactly as it was originally manufactured. The next two years were spent developing each and every part of the microphone right down to every detail. Numerous original documents and drafts from TELEFUNKEN and AKG were acquired, and coupled with thorough reverse engineering the ELA M 251 was brought back to life with meticulous accuracy.

As TELEFUNKEN moves forward, one foot is rooted in the rich history of the brand, and the other in new microphone innovations. TELEFUNKEN has evolved exponentially from a single pattern switch to one of the industry leaders in top quality microphones.

Specifications

Type: Condenser Pressure Gradient

Capsule: Two dual sided gold sputtered membranes

Frequency Range: 20Hz / 20kHz

Polar Pattern: Omni, Cardioid, Figure 8 with 6 intermediate stages

Sensitivity: 14MV/Pa = -37dB (0dB = 1v/Pa) -10bD

Impedance: 200 ohms stock

SPL: 138 dB

Non Linear Distortion: Less than or equal to 0.5% at 100 dyne / cm sq

Equivalent Noise: 16 dB (a-weighted)

Tube Type: NOS ECC81 twin triode

Power: Dedicated Power Supply

Weight: 27oz (765g)

Size: 9 1/2" (241mm) length x 1 3/4" (44.45mm) diameter

Extras: Modern Power Supply, Shock Mount, Wooden Box
