From Schertler

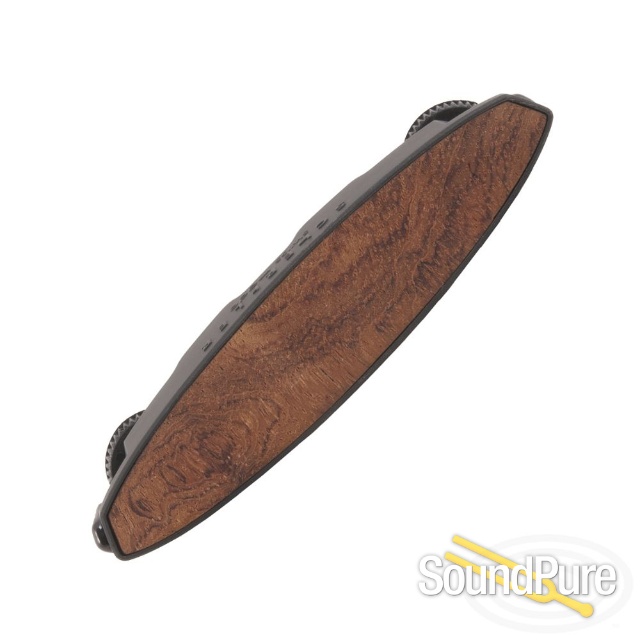

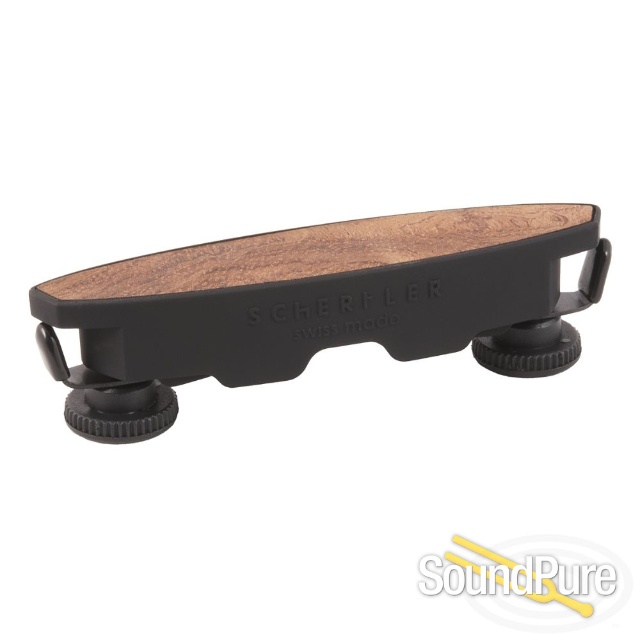

The AG6 features active multi-coil technology, with six separated coils and magnets with one preamp each. Low impedance electronics with no integrated circuits make this a pure class A preamp. Conducting is signal over a musical waveform's entire cycle, the AG6 is smooth, continuous, perfectly analog, and follows musical notation precisely to the original sound. The AG6 design simply processes a more natural sound with a very flat frequency response; from 0 to 40Khz with 0dB fluctuation, it is the purest form of amplification. Designed for use with acoustic guitars, the AG6 compact pickup is designed to fit inside the guitar's sound hole. It is equipped with a volume control and has an external input (with separte volume control) for connecting a second pickup.
Battery type: lithium 3V model CR2032
Playing time: 120 hours
Current consumption: 1.84mA
Frequency range (-3dB): 0 Hz to 40 kHz
Dynamic range: 68 dB SNR
Max output voltage: 4 VPP
Output level: -5dBu/ 1.23 VPP
Output impedance: 5 kOhm
