From RME

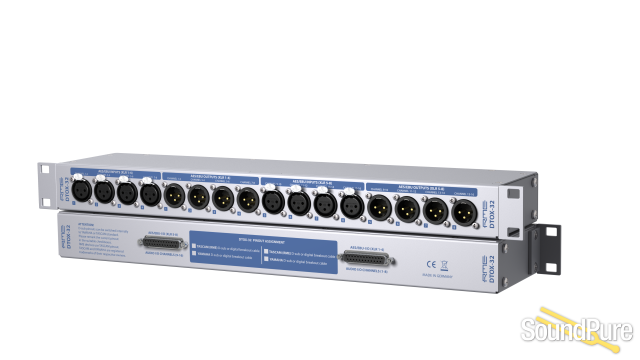

The DTOX-32 breakout panel is the ideal extension for digital multichannel interfaces
It includes two sets of D-sub to 4 x XLR male and 4 x XLR female each, replacing common breakout cables D-sub to XLR by a professional, solid, stable rack-mounted system. DTOX-32 is pin-compatible to TASCAM (=RME) and Yamaha formats.
Rack Mount
The DTOX-32 (also DTOX-16) has removable rack-mount-brackets and can be mounted in front or back position.

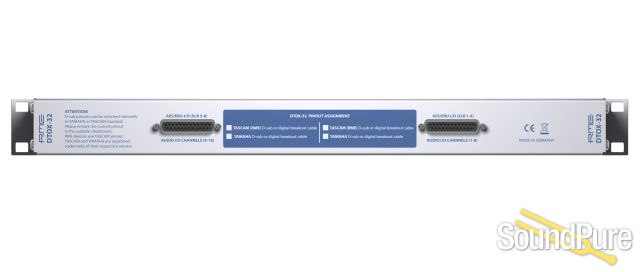

Changing the Pinout at the D-sub 25 Connectors
There are two selectable pinout standards for the 25-pin D-sub connectors of the DTOX-32: the TASCAM-compatible one and the YAMAHA-compatible format. If not ordered specifically, the DTOX-32 is set to the factory default TASCAM (RME). The respective format is changed by an internal connector inside panel. To change the format requires opening the housing with a medium size cross recessed screwdriver (PH-2 size).

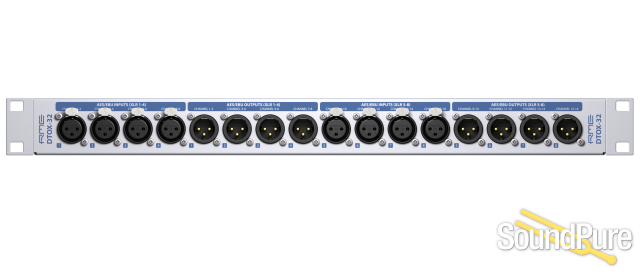

8 x XLR Output
8 x XLR Input
2 x D-sub 25-pin connectors
supports RME (=Tascam) and Yamaha-Formats (Pinout internal switchable)
19" Rack
Free 3-Year Warranty
