From API Audio

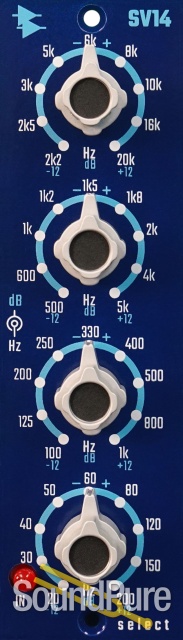

The API Select SV14 EQ circuit design is likewise rooted in API’s history. Faithfully re-engineered from the highly sought-after APSI 562 EQ's which were distributed by API during the1970’s and 1980’s, the SV14 provides parametric equalization at an affordable price point. The SV14 alsofeatures an EQ in/out switch, transformer balanced output, and dual concentric knobs which providecontinuously variable control of boost/cut and frequency selection.
Features:
- 4 bands of equalization modeled after the classic APSI model 562 EQ
- Each band offers continuously variable control of frequency and gain
- 12 dB of boost/cut per band
- All 4 bands are peak/dipping parametric configuration
- Custom transformer balanced output
- High headroom +24 dB clip level
- Designed to fit API's 500 VPR Rack or Lunchbox®
- I/O
- Balanced Input and Output through VPR Rack (All measurements with 600 Ohm output load)
- Bandwidth
- +/- 0.5 dB, 20 Hz - 50 kHz
- THD+N @ 1 kHz, +4 dBu
- 0.01%
- Maximum Level
- +24 dBu
- Signal-to-Noise Ratio
- -102 dB
- EQ Bands
- 4 bands, all +/-12 dB Peak/Dip type
- Lo
- 20 Hz - 200 Hz
- Lo-Mid
- 100 Hz - 1 kHz
- Hi-Mid
- 500 Hz - 5 kHz
- Hi
- 2.2 kHz - 20 kHz
- Current
- 30 mA, 3.4 VoltAmps
- Input Impedance
- 12K Ohms
- Output Impedance
- 300 Ohms Transformer Balanced
Dimensions
- Fits
- 1 VPR Alliance Slot
- Size
- 1.5" X 5.25" X 7.75" Deep
- Size (Boxed for Shipping)
- 4.5" X 6.5" X 10.25"
- Actual Weight
- 1.49 lbs
- Shipping Weight
- 1.91 lbs
(Specifications subject to change without notice)
