Radial Workhorse 500 Series Rack w/ Summing Mixer - Used From Radial
Radial's 8-slot 500 Series Workhorse rack with the summing mixer. In Used, Very Good condition
$1,150.00
No Sales Tax in 45 States.
Learn More.
"Experience the Difference"
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
Sales Tax
Sales tax is only collected in the following states: CA, FL, NC, SC, TN and VA. If your state is not listed, sales tax will not be collected on your order.
In Stock!
Ships immediately after order processed!
Rating: 4.8
Payments as low as $26/mo.
Want a lower price?
Get Discount
Check your email inbox now!
Our best price is too low to print,
but we'll email it to you immediately!
How to get a lower price, instantly!
Why do we do this?
Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.
Manufacturer's Description from Radial
- 500 series power rack with room for 8 modules.
- Upgrades to full Workhorse with optional mixer.
- 100% compatible with older API type racks.
- Over 20% more current than the original spec.
The Workhorse WR-8 is a trimmed down version of the Tec Award winning Workhorse power rack without the 8 channel summing mixer. This enables those that may not need a mixer to join in the fun while leaving the door open to upgrade in the future.

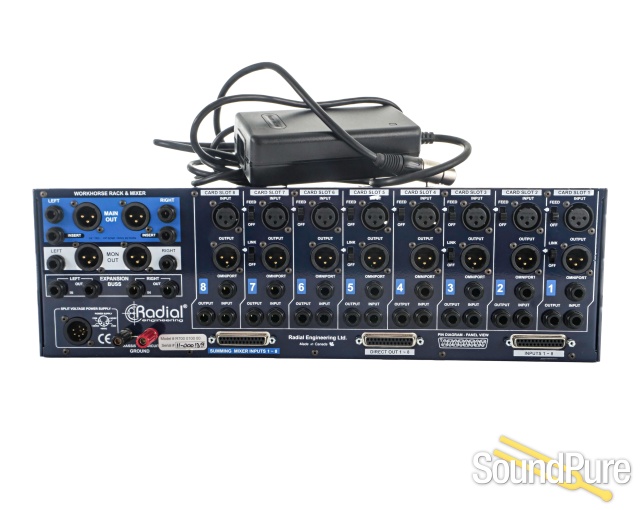

Like the Workhorse, the WR8 features eight slots to accommodate both Radial modules and other API Lunchbox™ compatible modules. An innovative slide-in tray makes loading modules easy! Rear connections include XLR and ¼" TRS inputs and outputs plus parallel connections via D-Subs. Unlike older API type racks that need to be hard patched, the WR8 features an innovative FEED switch that lets you connect modules in series by simply setting the switch to suit. This leaves the other connectors open for mult'ing, parallel processing and cross patching.
Stereo-ready modules such as compressor-limiters no longer need to have inside traces soldered! A simple LINK switch performs the connection and lets you revert back to normal without de-soldering. Radial also upgraded the 500 series spec with Omniport, a ¼" TRS connector that enables the manufacturer to assign a special module-specific function to increase functionality. Radial modules employ the Omniport in a variety of ways. For instance, the PowerPre assigns the Omniport as an instrument input, the Komit is a key input for the side chain and the JDV-Pre uses it as a direct box output for stage use.
The WR8 provides extra power to the modules for more headroom with over 1600 milliamps of shared power for the 8 slots. This enables you to use power hungry devices like tube preamps with confidence. The external supply makes international travel easy with 100V to 240V compatibility and the use of a standard IEC connector. To keep modules safe, the WR8 is equipped with protective circuitry to prevent mishap should improper connections be made.
About Manufacturer
Radial Engineering is a manufacturer and distributor of professional audio equipment, building tools for the working audio and audio-video professional. Radial is located on the Fraser River, just outside Vancouver, British Columbia in the municipality of Port Coquitlam. The company began operations in the fall of 1991 as the Canadian distributor of Mogami cable and Jensen Audio Transformers. In 1992, it became a limited corporation under the JP Cabletek Electronics Ltd. banner. The Radial name was first used on house branded cables and snake systems. The Radial name and logo represents a cross section of quad cable; Radial being round. In 1996 the Radial JDI direct box was launched. This led the way to the Radial JDV and today, over 50 electronic products are now being produced under the Radial, Tonebone and Forest Audio brands. In 2001, the Primacoustic brand was launched to address the growing demand for acoustic products for the burgeoning home recording market and in 2006, the company officially changed its name to Radial Engineering Ltd.
Specifications
Circuit type: Connection buss from modules to connectors
Format: 19" rack mount, 3 rack space
Number of slots: 8
Input connectors: 8 balanced XLR male, 8 ¼" TRS, 25-Pin D-Sub
Output connectors: 8 balanced XLR female, 8 ¼" TRS, 25-Pin D-Sub
Compatibility: Adheres to the Whos-Doc and VPR Alliance
Functions
Omniport: Yes
Feed switch: Yes
Stereo link: Yes
48V phantom power: Yes on all channels
Electrical
Available current: 1600 milliamps
Average current 200 mA per slot
Card slot impedance: Module dependent
Ground connections: Chassis & audio ground
XLR pin wiring: AES standard: pin-1 ground, pin-2 (+), pin-3 (-)
D-Sub pin wiring: Follows Tascam D-Sub standard
Power supply: External 100V - 240V AC with 48V Phantom
PSU Connection: Locking 5 pin XLR female on cable
Dimensions (W x H x L)13.25" x "21.50 x 11.25" (337mm x 546mm x 286mm)
