API Audio 512C 500-Series Mic Preamp  From API

The Original 500 series mic pre featuring the classic API sound, all you need is the lunchbox!

API Audio

$897.75

Retail:  $945.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 24 - 48 hours after order processed.
Payments as low as $20/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

What We Think

I love using API mic pres because I always know what I’m going to get. Top-of-the-line, military grade build quality and a distinct, aggressive sound that, when the situation calls for it, is nothing short of amazing. This is my top choice when miking a drum kit and want a contemporary sound. It delivers a level of punchy, dynamic tones with an incredible overall forwardness that I just can’t seem to get out of another preamp model.

The API preamp (3124 and 512c) also performs incredibly well on electric guitars, especially within heavier genres. It’s unparalleled responsiveness and bold overall sound does an excellent job in capturing and showcasing the aggressive playing in metal and hard rock in a very clear and powerful way. I’ve found it to perform at its best when pushing harder on the gain to the point of saturating the fully discrete electronics, resulting in more mid-focused saturation that brings out even more information in the guitar. In these scenarios, I’ll often have to engage the pad to control the signal level and prevent clipping my converter’s input, however it’s a small price to pay to get such an incredible result.

For some projects or instruments, fast and punchy may not be ideal. I almost always want to retain high levels of detail, but would prefer additional smoothness and warmth instead of additional punch. In these cases, I reach for the Phoenix DRS-1R for additional analog saturation to push the material back in the mix just a bit.

In situations where unparalleled punch, detail, and responsiveness are desired regardless of genre, the API preamp delivers stronger than anything else - Period. For hard rock or metal engineers, it’s pretty safe to say your preamp arsenal isn’t complete without at least 4 channels to cover your drums, guitars, and bass.

API Audio 3124+ 4-Channel Microphone Preamp - Quick n’ Dirty

  The API 3124+ is a high quality, compact, 4-channel mic preamp. Top quality, military grade build and a distinct, aggressive sound that, when the situation calls for it, is nothing short of amazing. For hard rock or metal engineers, it’s pretty safe to say your preamp arsenal isn’t complete without at least 4 channels to cover your drums, guitars, and bass. This preamp is available for SoundPure’s Try-Before-You-Buy Program, so if you want to hear how it sounds in your studio with your gear, shoot us an email at ProAudio@SoundPure.com, or give us a call anytime at 919.682.5552. Thanks for watching!

Manufacturer's Description from API

512c

Discrete Mic / Line Pre

Features

  • Mic Preamp with 65 dB of gain
  • Front and Back Panel Mic Input Access
  • Line/Instrument Preamp with 50 dB of gain
  • Front Panel Line/Instrument Input
  • LED VU meter for monitoring output level
  • 20 dB pad switch, applies to mic/line/instrument
  • 48v Phantom switchable power
  • Traditional API fully discrete circuit design
  • Uses the famous API 2520 Op-Amp

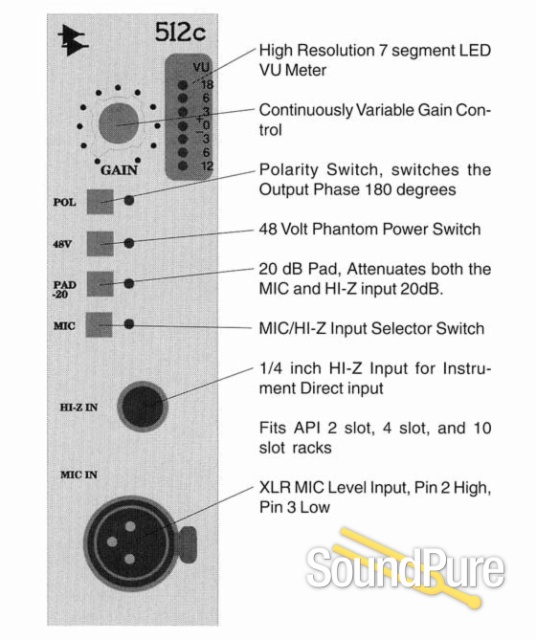

The API 512c is a mic / line / instrument preamp designed to provide a low noise, unusually good sounding front end for all types of audio systems. Sonically, it offers the distinct API sound at an extremely affordable price. Offering low noise (-129 EIN) and 65 dB of gain, the 512c includes phantom power, and switchable polarity, -20 dB pad and Mic/Line or Instrument selector. Front panel XLR and 1/4 inch connectors combined with rear panel mic access allows for additional flexibility when installed into an API lunchbox®, API's 10 position 500V vertical rack, or an API console.

The API 512c remains faithful to the circuit designs of API's founder, Saul Walker. Fully featured and still hand assembled, the 512c carefully preserves the original sound character that made it so much a part of the early days of recording. Offering high headroom and a wide variety of inputs and input access points, it is equally at home in the commercial recording studio as it is in the home project studio.

The 512c Mic/Line Preamp makes use of the 2510 and 2520 op-amps and therefore exhibits the reliability, long life, and uniformity which are characteristic of all API products.

API Audio

About Manufacturer

API (Automated Processes, Inc.) is world famous for its all-discrete audio products: studio and broadcast mixing consoles, and a full line of rack mount mic preamps, equalizers and processors. It all began with a dream. It was 1968. The company: Automated Processes Inc., formed by men with a vision. Best known for their now legendary "2520 amplifier", this unique amp has been and will continue to be the heart of all API discrete products. It continues to provide reliability and sonic purity unmatched by the competition. The resulting console met the needs of the music, commercial and broadcast industry. API became the leading audio broadcast console manufacturer for radio and television networks and high profile stations. In addition, recording studios, large and small, began using API.....and receiving rave reviews from engineers and producers. There are over 700 API consoles across the nation and around the world, including the three major networks. Over thirty years later, many of these consoles are still in daily use in some of the most prestigious recording and broadcast facilities in the world because, to date, there are few, if any consoles of equal sound quality at a cost-effective price.

Specifications

Specifications

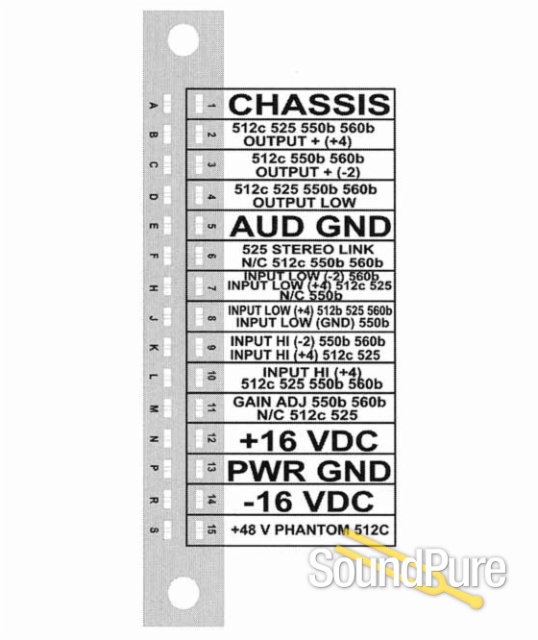

Rear Connector:

Output on edge connector, MIC Input on edge connector,

can be defeated

Front Connectors:

XLR MIC Input, HI-Z 1/4" Unbal Input

Gain Range:

MIC, 10 dB min, 65 dB max. Unbal HI-Z Input, 14 dB min,

50 dB max

Maximum Input Levels:

MIC, +8 dBu, Unbal HI-Z Input, +36 dBu

Input Impedance:

MIC Input, 1500 Ohms (150 Ohm mic), HI-Z Unbal Input,

20 K Ohms

Output Impedance:

Less than 75 Ohms, Transformer Balanced

Clipping Level:

+30 dBu

Frequency Response:

+0, -.3, 30 to 20 kHz

Noise:

Equivalent Input Noise: -129, Mic In. -125, Un-Balanced In.

Actual Metered Noise: Mic, -95 dBu, Un-Bal., -90 dBu

Distortion:

Less than .05% @ +4 Out, Less than .1% @ +28 Out

Power Consumption:

±12/18 Volts/DC, @40 ma.

Size:

1.5" X 5.25" X 7" Deep

Size (Boxed for Shipping):

4.5" X 6.5" X 10.25"

Actual Weight:

1.41 lbs.

Shipping Weight:

1.94 lbs.
