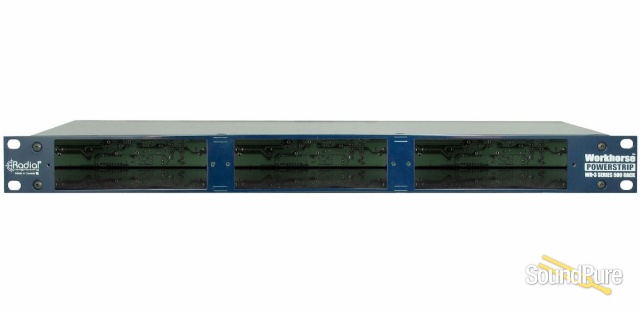

Radial Engineering PowerStrip 500 Series 3-Slot Rack  From Radial

The PowerStrip is a three module rackmount power supply designed to bring the fun and excitement of 500 series modular audio to everyone!

Radial Engineering

$479.99

Retail:  $576.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $42/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

Radial Workhorse 5000 Rack for API 500-series - AES '09

Radial Engineering unveils their extremely demanded and versatile Workhorse 5000 rack, which has 8x API 500-series compatible rack slots with hosts of additional improvements and features to a standard rack, as well as an 8x2 summing mixer (with pan) designed by former Neve engineers. The device features virtually every feature one could ask for in a 500-series rack, and a price tag that is frighteningly good. The entire Radial Engineering product line is available for purchase through Sound Pure, who is always available to answer any questions you have about high-end recording equipment and expert recording techniques. Call Sound Pure toll free 888-528-9703, or e-mail them at sales@soundpure.com

  • Signal Chain
    • Radial Engineering Workhorse 500 Series Rack

Manufacturer's Description from Radial

Unlike other single space power racks that are limited to two modules, the innovative triple-module design allows you to put together a traditional channel strip, combining a mic preamp with an equalizer and dynamic control using a compressor-limiter all within the confines of a single RU 19" rack. With so many choices of modules available today, this opens the door to creating unique signal paths to allow your music to stand out.

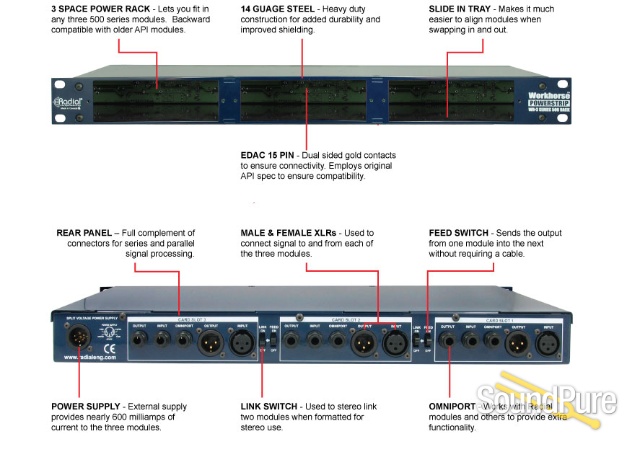

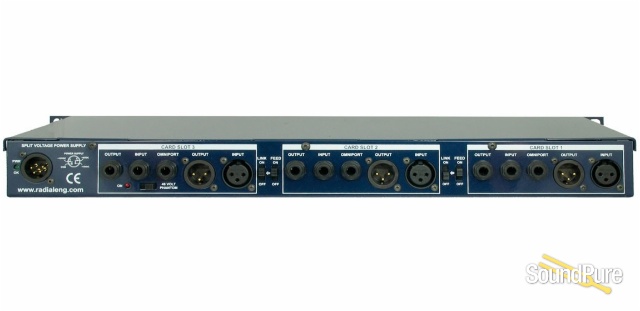

Following the criteria established by the Radial Workhorse, the PowerStrip is 100% backwards compatible with older API modules while being optimized for Radial's expanding range of preamps, processors and routing devices. Construction begins with 14 gauge steel and features dual gold contact EDAC 15-pin connectors for optimal signal transfer. To maximize headroom, the external supply delivers 500mA of current for voltage hungry modules plus a separate 48V phantom tap delivers 10mA of current for microphone preamps. Rear panel connectivity includes standard XLRs for each slot along with ¼" TRS connectors for multing modules, cross patching and parallel processing. Instead of the traditional 'hardwire patch' system employed by others, The PowerStrip employs an innovative feed function that patches modules together in series without the need of cables. And stereo modules no longer need to be soldered to be paired, they can now be sync'd together using a simple switch. The PowerStrip is also equipped with Omniport on each sot. This TRS jack enables the module manufacturer to implement a unique function for a given module such as a key input on a gate.

The PowerStrip makes it easy to assemble a variety of modules to create the ultimate channel strip and the compact single RU design opens the door for use in both studio and concert touring.



  • Single RU power rack houses three 500 series modules
  • Designed to create the ultimate input strip
  • Compatible with Radial and older API systems
  • Provides up to 500 mA of shared current
Radial Engineering

About Manufacturer

Radial Engineering is a manufacturer and distributor of professional audio equipment, building tools for the working audio and audio-video professional. Radial is located on the Fraser River, just outside Vancouver, British Columbia in the municipality of Port Coquitlam. The company began operations in the fall of 1991 as the Canadian distributor of Mogami cable and Jensen Audio Transformers. In 1992, it became a limited corporation under the JP Cabletek Electronics Ltd. banner. The Radial name was first used on house branded cables and snake systems. The Radial name and logo represents a cross section of quad cable; Radial being round. In 1996 the Radial JDI direct box was launched. This led the way to the Radial JDV and today, over 50 electronic products are now being produced under the Radial, Tonebone and Forest Audio brands. In 2001, the Primacoustic brand was launched to address the growing demand for acoustic products for the burgeoning home recording market and in 2006, the company officially changed its name to Radial Engineering Ltd.

Downloads

Action

Name

Description

Powerstrip User Manual
