Radial Engineering X-AMP-LB 500 Series Re-Amp Module  From Radial

Dual Output Re-Amping Distro

Radial Engineering

$299.99

Retail:  $350.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Contact us for up-to-date delivery estimate.
Payments as low as $26/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

Radial Engineering 500-Series Modules API - AES '09

Radial Engineering unveils and incredible array of modules for the API 500-series racks and their new workhorse rack, that boast extremely reasonable pricing and excellent build quality. The series includes a versatile mic preamp, DI, JDX Reactor Reamp, Phaser (phase adjustment tool), EXTC (allowing use of guitar pedals in the studio environment), and Komit (compressor/limit), all extremely reasonably priced. This entire collection of modules is available for purchase through Sound Pure, who is always available to answer any questions you have about guitars, tone, and the recording process. Call Sound Pure toll free 888-528-9703, or e-mail them at sales(at)soundpure.com

Manufacturer's Description from Radial

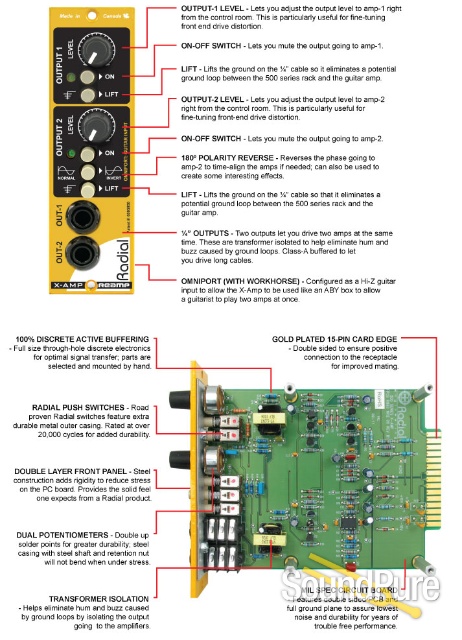

  • Active Reamp® designed for 500 series racks
  • 100% discrete class-A electronics for best tone
  • Transformer isolated to eliminate hum and buzz
  • Easy access front panel jacks & controls

The Radial X-Amp™ is a 500 series module that lets you take a pre-recorded guitar track and send it back to amplifiers and effects so that you can tailor the sound to suit. The advantages of Reamping™ are many: when recording, the guitarist need only concentrate on the performance. Working out specific sounds and optimal mic placement can be done later. This eliminates hours of tiresome repetition while allowing the producer to adjust the character of the track as the production evolves.

Using the X-Amp is 'plug and play' easy to use. The design begins with an XLR balanced line level input located on the 500 series rear panel that feeds the X-Amp. To ensure the very highest fidelity, 100% discrete class-A circuitry is employed. The X-Amp unbalances and buffers the pre-recorded signal where it then feeds two transformer isolated hi-Z guitar level outputs. The ¼" jacks are front mounted for desk-top convenience and equipped with ground lifts to help eliminate hum and buzz caused by ground loops. Independent level controls enable you to adjust the drive going to each amp for optimal tone. Should one of the amps be out of phase, depressing the 180º quickly brings both in line.

The X-Amp Reamper™ works with guitars, basses, keyboards and even voice! You can send the signal through guitar effects pedals too. In fact the only thing holding you back is your imagination.

The Radial X-Amp…active Reamping™ made easy.

Radial Engineering

About Manufacturer

Radial Engineering is a manufacturer and distributor of professional audio equipment, building tools for the working audio and audio-video professional. Radial is located on the Fraser River, just outside Vancouver, British Columbia in the municipality of Port Coquitlam. The company began operations in the fall of 1991 as the Canadian distributor of Mogami cable and Jensen Audio Transformers. In 1992, it became a limited corporation under the JP Cabletek Electronics Ltd. banner. The Radial name was first used on house branded cables and snake systems. The Radial name and logo represents a cross section of quad cable; Radial being round. In 1996 the Radial JDI direct box was launched. This led the way to the Radial JDV and today, over 50 electronic products are now being produced under the Radial, Tonebone and Forest Audio brands. In 2001, the Primacoustic brand was launched to address the growing demand for acoustic products for the burgeoning home recording market and in 2006, the company officially changed its name to Radial Engineering Ltd.

Specifications

The X-Amp 500 is an active Re-amp™ device that interfaces the balanced line-level output from professional recording systems with guitar effects and amplifiers. Two active buffered high impedance outputs with active level controls connect to effect pedals and instrument amplifiers. Each output is transformer isolated to eliminate hum and buzz caused by ground loops. Output-2 includes polarity invert for achieving proper phase alignment between two amps. When installed in a Workhorse 500 series rack the user has access to the Omniport connector. The X-Amp's Omniport is configured as an instrument preamp allowing a guitar to connect and drive the amplifier outputs.



Specifications





Circuit type:

Class-A discrete, transformer coupled

Power requirement:

40mA, ±16VDC

Frequency Response:

20Hz~20kHz (adjusted for guitar signals -5dB@20kHz) w 100K Ω load



XLR Input to XLR Output

Omniport to XLR Output*

XLR Input to ¼" outputs

Voltage Gain:

0dB ±0.5dB

-3dB ±0.5dB

-0.6dB ±0.5dB

THD+N:

<0.002% @ 0dBu
(20Hz~20kHz)

<0.002% @ 0dBu
(20Hz~20kHz)

<0.006% @ 0dB
(1KHz)

Noise:

-114dB below 0dBu

-95dB below 0dBu

-98dB below 0dBu

Intermodulation Distortion:

<0.04% @ 0dBu input

<0.005% @ 0dBu input

<0.027% @ 0dB input

Maximum input:

+26dBu

+20dBu

+19dBu

Features







XLR input:

+4dB, balanced female XLR, AES standard

XLR input impedance:

1.2k Ohms

XLR output:

Parallel 'thru-put' with XLR input, +4dB balanced

XLR output impedance:

600 Ohms

¼ OUT-1 & OUT-2:

Instrument-level (variable), unbalanced ¼", transformer isolated,

¼ output impedance:

3k Ohms

Omniport*:

Instrument-level input, unbalanced ¼"

Omniport input impedance:

220K Ohms

General







Shipping Weight:

1.5lbs (0.7kg)

Size:

Standard 500 series rack format

Warranty:

3 years, transferable

Specifications are subject to change without notice. The connectors referenced are typicaly found on most 500 series racks. *Refers to use with Radial Workhorse rack and mixer

Downloads

Action

Name

Description

X-Amp User Guide
