From Radial Engineering

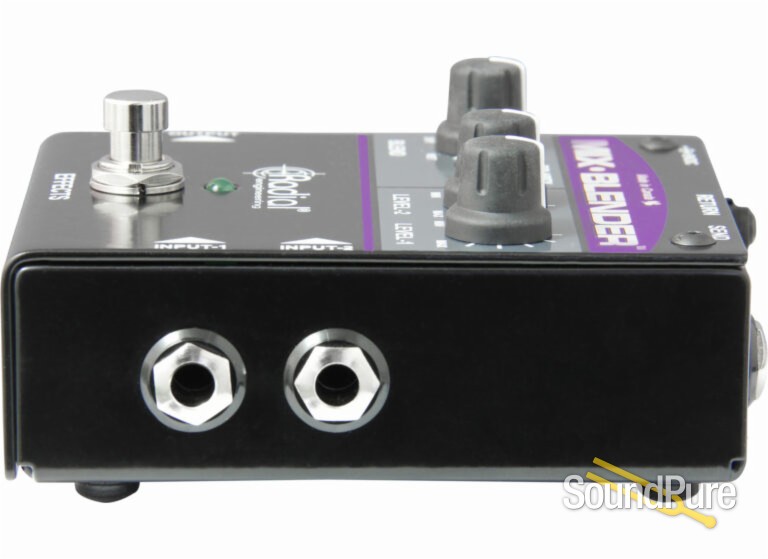

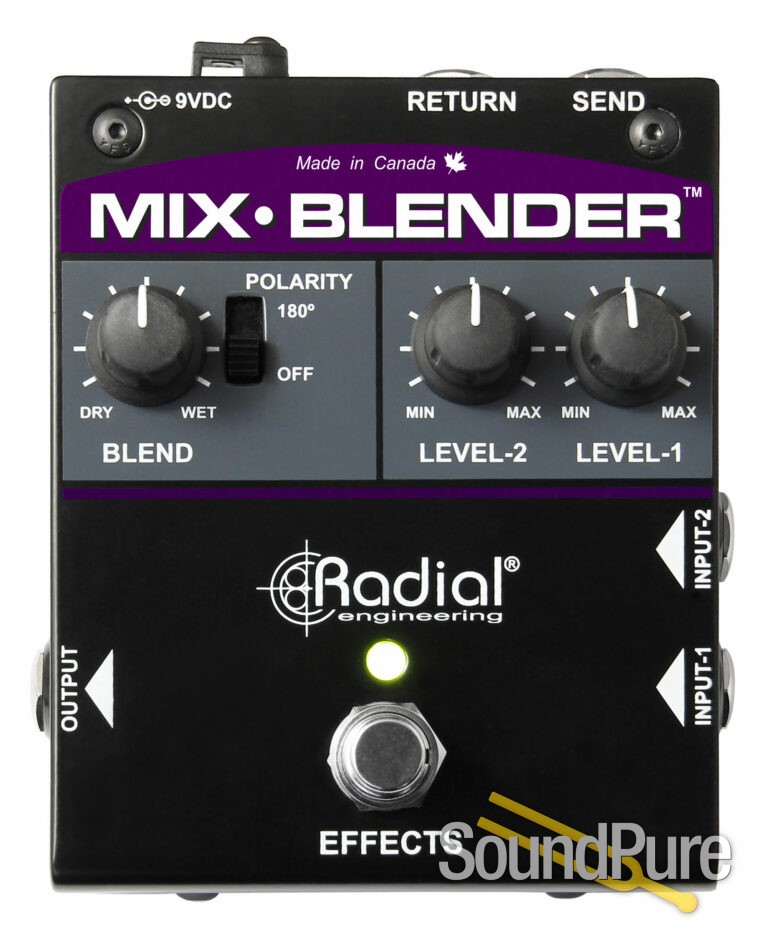

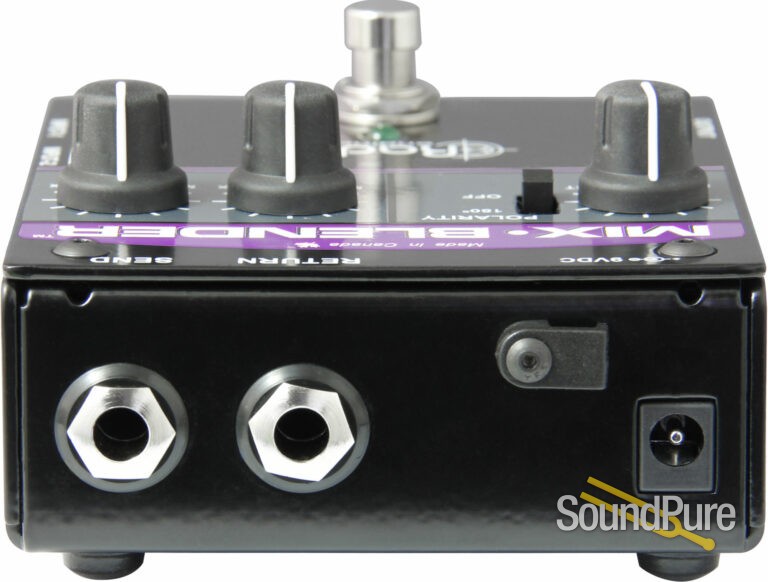

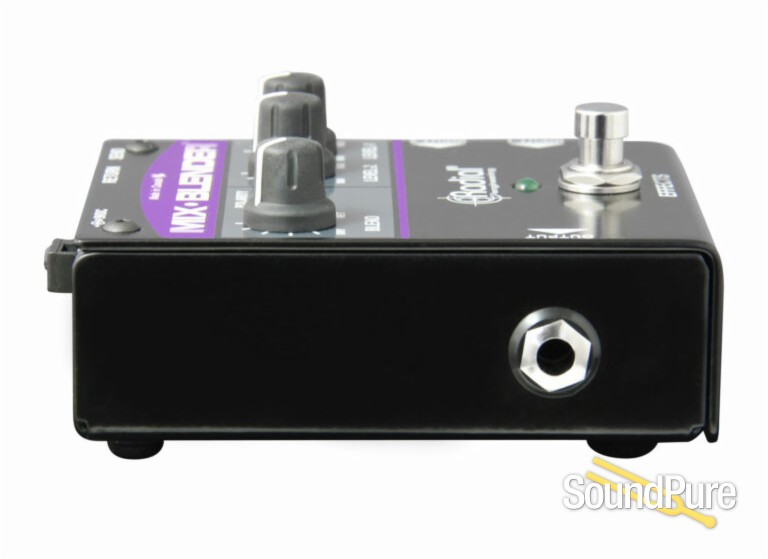

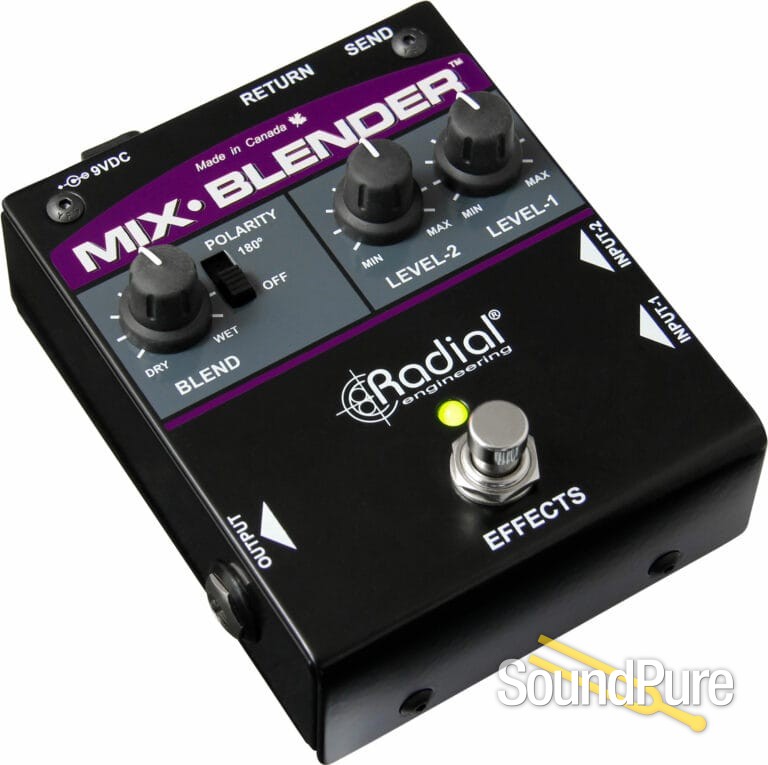

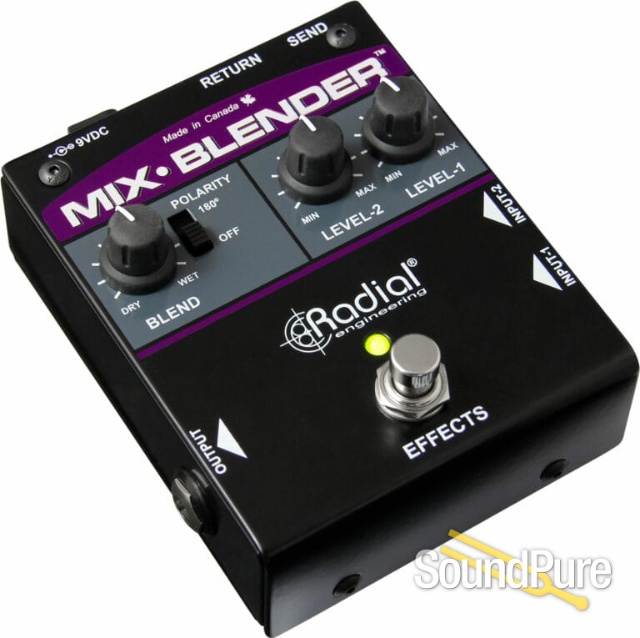

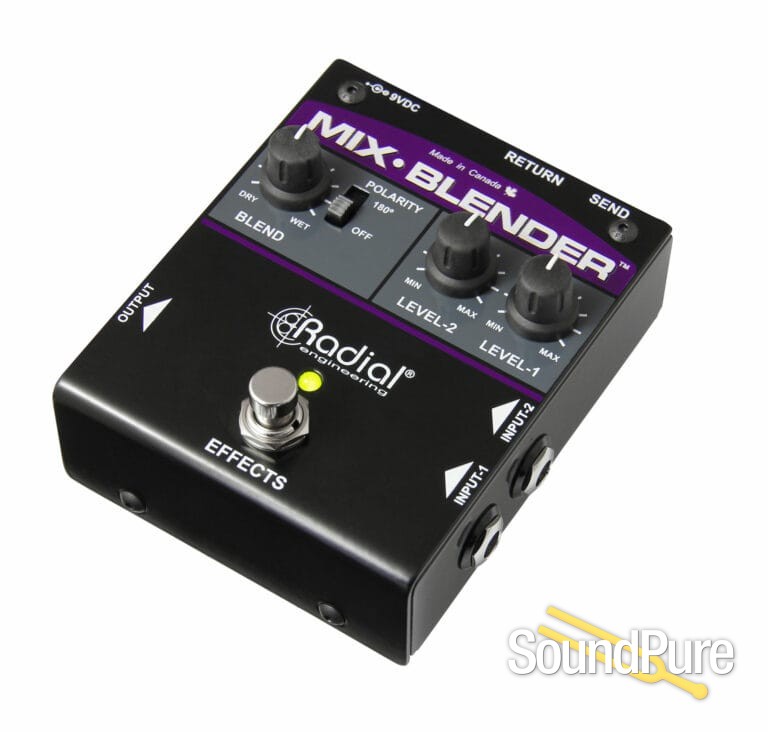

The Mix-Blender™ is a multi-function pedal that lets you mix two instruments or pedals together and then send the signal through a footswitch-controlled effects loop for processing.
Mix your instruments, Blend your effects
Designed to work with guitar, bass and keyboards, the Mix-Blender sums together two instrument inputs, with individual level controls to balance their relative levels. This allows you to combine two pickups on an acoustic guitar, two effects pedals, or two different instruments on stage so each can be played through the same amp. This combined signal can then be routed to your effects pedals, with a footswitch to activate them in an instant. The effects loop of the Mix-Blender features a unique wet/dry Blend control, which lets you retain the original sound of the instrument and add in as much of the pedals as you like, for effects ranging from subtle to extreme.
- Audio circuit type
- Discrete Class-A main audio path Audio Grade IC send-return loop
- Frequency response
- 20Hz - 20KHz +0/-2dB
- Dynamic range
- 104dB
- Gain
- -30dB maximum gain (FX Off), +2dB maximum gain (FX On)
- Total harmonic distortion
- 0.01%
- Intermodulation Distortion
- 0.02%
- Phase Deviation
- <10º at 100Hz
- Input Impedance
- -220k
- Equivalent Input Noise
- -97dBu
- Maximum Input
- +10dBu
General
- Construction
- 14-gauge steel chassis and outer shell
- Size (L x W x D)
- 4.62" x 3.5" x 2" (117.3 x 88.9 x 50.8mm)
- Weight
- 1.35 lbs (0.61kg)
- Shipping size (L x W x D)
- 6.5" x 4.1" x 3" (165.1 x 104.65 x 76.2mm)
- Shipping weight
- 1.6lb lbs (0.72kg)
- Power
- 9V / 100mA (or more) Adapter
- Conditions
- For use in dry locations only between 5°C and 40°C
- Warranty
- Radial 3-year, transferable
