From Radial Engineering

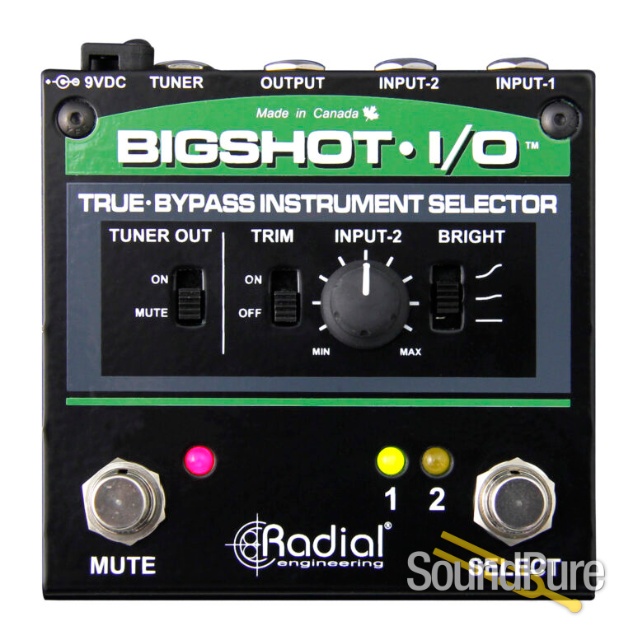

The BigShot i/o is an easy-to-use instrument selector that lets you quickly transition between any two instruments, while balancing the levels between them and feeding the output to your amplifier.
Easy instrument changeovers on stage
The BigShot i/o allows you to switch between instruments on stage without pops through your amp or the need to adjust levels, while featuring 100% true-bypass for the most demanding purist. Input-2 is equipped with a volume control that lets you reduce the input sensitivity of the louder instrument so that the levels are matched when played through your amplifier. When passive instruments are used, a unique three-position Bright switch lets you compensate for instruments that lack shine in the high frequencies. The BigShot i/o is also equipped with a separate tuner output; with a simple foot stomp, the sound going to the amp is muted and diverted to the tuner for quiet on-stage adjustments.
- Audio circuit type: Passive, true bypass
- Frequency response: 20Hz – 20kHz
- Gain: -0.3dB
Features
- Dim Switch, Bright Switch

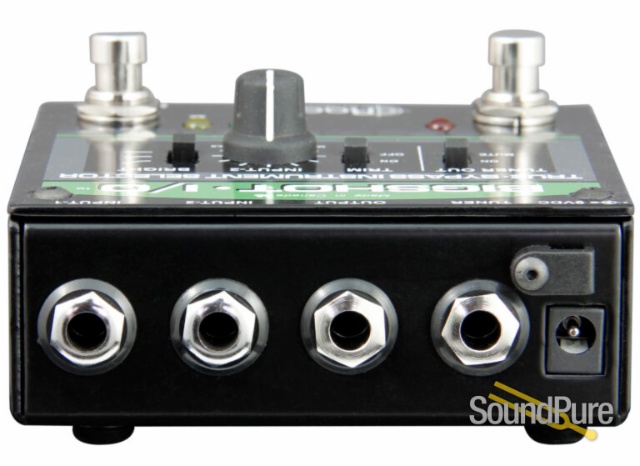

- Input Connectors: ¼" jack for first instrument connection Input-2, ¼" jack with dim and bright controls
- Output Connectors: ¼" jack is switchable between always-on, or engaged by Mute switch
- Extras: Tuner/toggle switch
General
- Construction: 14-gauge steel
- Finish: Durable powder coat
- Size (L x W x D): 3.9" x 3.6" x 2" (99 x 91.4 x 50.8mm)
- Weight: 1.25 lb (0.56 kg)
- Shipping size (L x W x D): 6.25" x 4.25" x 3" (158.7 x 108 x 76.2mm)
- Shipping weight: 1.55 lb (0.70 kg)
- Power: 9VDC, center pole negative
- Conditions: For use in dry locations only between 5°C and 40°C
- Warranty: Radial 3-year, transferable
