From Radial Engineering

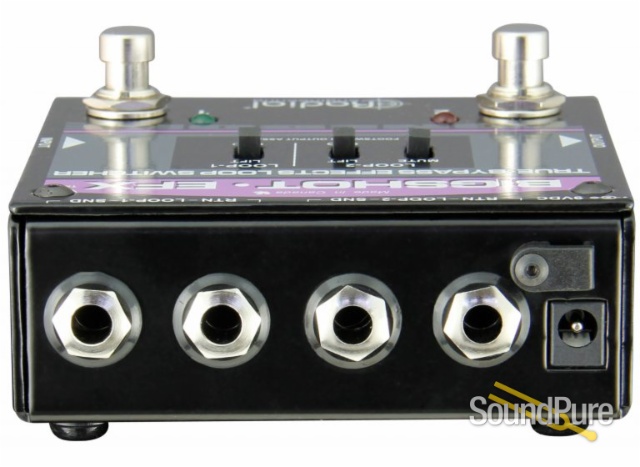

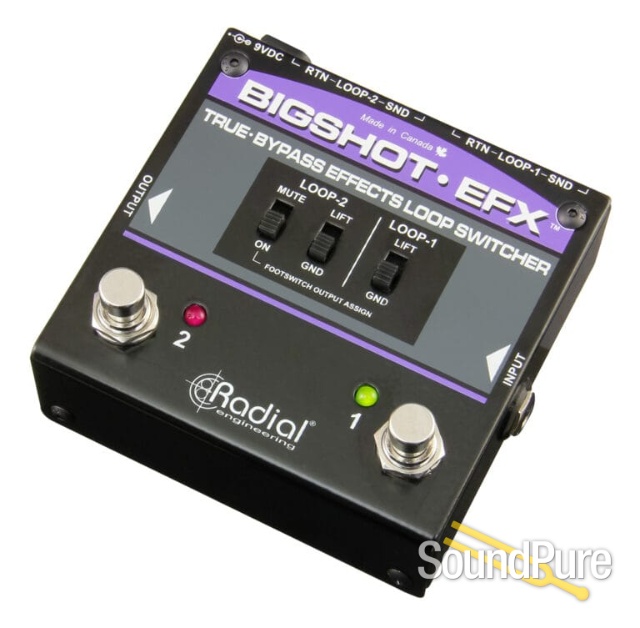

The BigShot EFX™ is a true-bypass effects pedal switcher that lets you set up two separate effects loops and insert them into your pedal chain when needed.
Professional pedal management on stage
The BigShot EFX gives you the ability to take an entire chain of effects pedals in or out of your signal path with a single footswitch, providing you with a streamlined way to manage multiple pedals on stage. Two effects loops are provided and can be individually activated, or run simultaneously with Loop-1 feeding Loop-2 for even more creative options. You can also set up Loop-2 as a mute for silent tuning or instrument changeovers. Since each loop is true-bypass, it allows you to keep noisy or tone-robbing pedals out of the signal path when they are not needed.
- Audio circuit type
- Passive, true-bypass
- Frequency response
- 20Hz – 20kHz
- Gain
- -0.3dB
Features
Ground lift
- Input Connectors
- Two 1/4" inputs
- Output Connectors
- Two 1/4" outputs
- Extras
- Mute turns Footswitch 2 to a mute switch for silent tuning through Loop-2
General
- Construction
- 14-gauge steel
- Finish
- Durable powder coat
- Size (L x W x D)
- 3.9" x 3.6" x 2" (99 x 91.4 x 50.8mm)
- Weight
- 1.25 lb (0.56 kg)
- Shipping size (L x W x D)
- 6.25" x 4.25" x 3" (158.7 x 108 x 76.2mm)
- Shipping weight
- 1.55 lb (0.70 kg)
- Power
- 9VDC, center pole negative
- Conditions
- For use in dry locations only between 5°C and 40°C
- Warranty
- Radial 3-year, transferable
