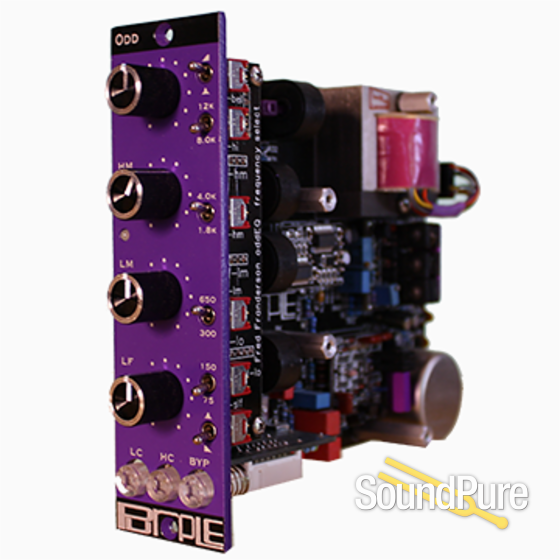

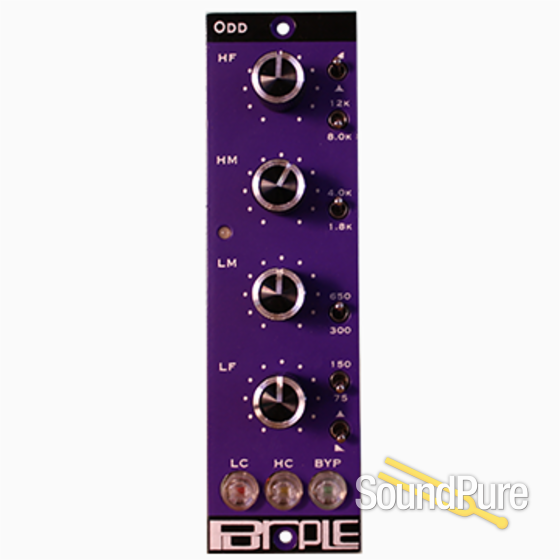

Purple Audio Odd 500-Series EQ  From Purple

500 series Equalizer

Purple Audio

$775.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $68/mo.

Want a lower price?
Call or email us!
888-528-9703
sales@soundpure.com

Manufacturer's Description from Purple

Designed by Ed Anderson for Purple Audio.

A modern update of the classic “swinging inputs” console EQ, with four easy to use bands. Each band uses a high quality inductor and carefully selected caps to give two switchable frequencies. The bands are carefully shaped and spaced to be musical, even at full boost or cut. The highest band can be switched from bell to shelf, to boost frequencies extending well beyond 20kHz. The lowest band can also be switched from bell to shelf, reaching down into the subsonic range.

There are illuminated pushbuttons for additional fixed low (red) and high (yellow) cut filters. A relay true bypass (green) allows for easy comparison with unprocessed source material. With the low and high cut switched out, and all four bands set to 0, the frequency response is +/- 0.25dB from 15Hz to 25kHz, and -3dB at 60kHz.

With specialized input and output transformers, the Odd has plenty of headroom, even at full boost. The entire circuit is discrete, with no electrolytic capacitors in the signal path, and no servo amps. With only two active stages, the current draw is low enough to work in any rack, and leave plenty of juice for other modules. The Odd uses one KDJ3 opamp and one KDJ4 opamp.



Features:

  • High frequency switchable from bell to shelf
  • High frequency 12kHz / 8kHz
  • High-mid frequency 4kHz / 1.8kHz
  • Low-mid frequency 650Hz / 300Hz
  • Low frequency 150Hz / 75Hz
  • Low frequency switchable from bell to shelf
  • Each band boost or cut by 12dB
  • Switchable High cut at 12kHz
  • Switchable Low cut 60Hz
  • Relay True Bypass
  • Tricolor LED level meter
  • Transformer balanced in and out
  • Discrete signal path
  • No electrolytic caps in signal path
  • Current consumption: 60mA
  • Over Current Resettable Fused (prevents any module problem from affecting your rack)
  • ROHS – Lead Free


Odd Pinout:

  • Pin 1: Chassis Ground
  • Pin 2: Output A +
  • Pin 3: NC
  • Pin 4: Output A -
  • Pin 5: Audio Ground
  • Pin 6:NC
  • Pin 7: Input -
  • Pin 8: Input -
  • Pin 9: Input +
  • Pin 10: Input +
  • Pin 11: NC
  • Pin 12: +15 or 16VDC 60ma
  • Pin 13: Audio Ground
  • Pin 14: -15 or 16VDC 60ma
  • Pin 15: NC (+48VDC)
Purple Audio

About Manufacturer

Purple Audio was founded by Andrew Roberts in 1997.

While attending NYU’s music technology program in 1994 Andrew bought, sold and repaired recording equipment from a dorm room on the college campus.

In the fall of 1996, Andrew was introduced to John Klett who invited him to join a new repair shop in midtown Manhattan. This shop, dubbed Tech Mecca, was the new location for Manhattan Audio, a large repair facility and wiring company and Klett’s new midtown home.  Andrew apprenticed under Klett and began repair on high-end audio gear.

By the fall of 1997 Purple had introduced the MC76. Soon after Purple Audio’s inaugural AES show Purple needed more space, the operation was moved to a loft in Long Island City, Queens. This large space provided overflow space for Tech Mecca’s large projects.

Purple Audio spent the late 90s and early 00s shipping the MC76 and getting involved in console and tape machine rebuild projects. Andrew studied analog circuit and logic design, seeing it in practice during field service calls to major studios in the area.  While sales of the MC76 started to drop off as a result of a new competitor’s ad campaign, which in turn brought increased awareness of the MC76 product and user comments proved that the Purple Audio product was clearly superior.  Distribution was finally achieved and Purple Audio began selling direct and through select dealers.

Then began a long process in console design. Andrew designed a couple of large master sections, which were retrofitted into existing consoles. The master sections went through several design revisions before the Super 8 modules were designed. The process resulted in op amps and a mic preamp design that later became the Biz. Eventually Purple delivered 16 channel portable rigs and a 32 channel full-blown console.

In 2006 the bold move was made.  Purple Audio uprooted its operations in New York and shifted focus to a new location in Pennsylvania.   Andrew settled in the quaint little river town of Jim Thorpe Pennsylvania, where he began restoration of a 1850’s Victorian home.  Just a short drive from his new residence Purple’s new location was up and running in a 1000 sq ft. industrial complex in Weissport PA. The shop in New York still exists and is the home of Coral Sound, Exile Studios, Technical Audio, & Eisen Audio.

Upon his move to Weissport, PA in 2006 Andrew was now freed from the distractions of New York, Exile, and repair work. This allowed him to focus on the design work he had anxiously been working toward for years.  With that came the completion of the new Purple Audio products in 2007 : the Action, Cans, Pants, Sweet Ten ready for the AES show with actual production the first few months of 2008.

In 2011 Purple Audio once again upgraded its facilities and purchased a historic fire company in Jim Thorpe PA, called the “Marion Hose”.

Located just blocks away from Andrews residence in Historic Jim Thorpe PA.  The Building was sold to Purple Audio by the Mauch Chunk Historical Society.  An entire year was devoted to the gutting and refitting of the new Purple manufacturing facility.  While respecting the original historic architeture the exterior remains intact and historically correct while the interior reflects a NYC style loft with a hi-tech organic flare.   The second floor is primarily for design and manufacture, and an area designated for an artist lounge, kitchen, bath and views.  More to come on that.
