Lauten Audio LA-320 LDC Tube Microphone V2  From Lauten

Vintage or Modern Tube Mic Sound at The Flip of A Switch

Lauten Audio

$699.00

Retail:  $1,000.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $61/mo.

Manufacturer's Description from Lauten

The LA-320 is a twin-tone tube microphone that allows you to choose between the warmth and body of a vintage tube microphone and the clarity and presence of a modern tube microphone at the flip of a switch. Classic tube microphones were made for a signal chain that you don’t have, so we designed the LA-320 to sound great without it. Centered around a custom-made Lauten Audio capsule and hand-soldered tube circuit path, our unique microphone design gives you the musical color and gentle compression associated with classic signal chains but straight into your audio interface.



KEY APPLICATIONS



  • Vocals
  • Acoustic Guitar
  • Piano
  • Cello
  • Drum Overheads



BREAKOUT DETAILS



TWO TUBE MICS IN ONE

The LA-320’s onboard sound-shaping eliminates the need for mic swaps and wasted time. Choose between the warmth of a classic tube microphone and the clarity of a modern tube microphone at the flip of a switch. Capture the wood of a worn-out acoustic guitar and the air of a pop vocal with the same microphone at the flip of a switch.



CUSTOM-CRAFTED CAPSULE

Unlike classic capsule designs, our hand-tuned 32mm transducer naturally imparts gentle compression and balance to any sound source, making it ideal for use on traditionally troublesome applications. This means getting a great recording in the real world is faster and easier.



FINISHED SOUND WITHOUT THE SIGNAL CHAIN

The LA-320 isn’t flat – it sounds like music. We believe every Lauten Audio microphone should stand on its own and make your life easier. Does the LA-320 sound great with a high-end signal chain? You bet! Does it need one to deliver powerful, present sound out of the box? Not at all.



INSIDE STORY

The LA-320 is hand-soldered with high-resolution, low-distortion polypropylene capacitors and resistors, a dual triode vacuum tube, and a vintage-inspired output transformer. The resulting sound is crisp, clear, and full without the high noise floor and delicacy of vintage microphones.



DESIGNED & TESTED IN SILICON VALLEY, CA

Each LA-320 is lovingly designed and built to last a lifetime by the Lauten Audio family.

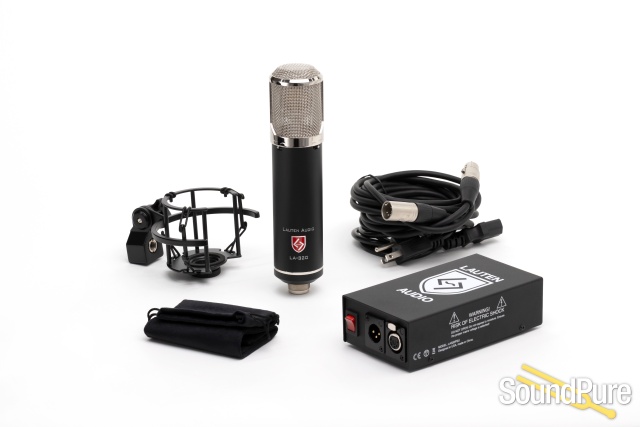

IN THE BOX



  • LA-320
  • Spider Shock Mount
  • Microphone Bag
  • Power Supply
  • IEC Power Cable
  • 5-Pin Cable
  • QuickStart Guide
  • Registration Card
Lauten Audio

About Manufacturer

Based in California, Lauten Audio was founded almost a decade ago by Brian Loudenslager, who saw a need for well thought-out mics with a unique character. Working in collaboration with Grammy nominated engineer and producer Mike Terry and theoretical physicist Dr. Charles Chen, Brian started working on the Horizon, which they wanted to be a unique-sounding work-horse studio microphone. Two years later the Horizon was introduced. 8 years later, Lauten Audio has become known as a leader in original-sounding microphones with unique timbre, and has garnered a loyal following. Lauten audio does not clone classic or vintage microphones, and instead starts with a clean slate to bring you a truly original product.

Specifications

  • Type:Transformer balanced tube condenser
  • Tube: ECC83
  • Capsule: 32mm center
  • terminated pressure gradient
  • Polar Patterns: Cardioid
  • Freq. Response: 20Hz-20KHz
  • High Pass: Flat / 120Hz
  • Low Pass: Flat / 12kHz
  • Dynamic Range: 120dB minimum
  • Max. SPL: 0.5%THD@1000Hz: 130dB
  • Impedance: <200 ohms
  • Self-noise level: < 17dB-A
  • Sensitivity: 14mV/Pa (@ 1kHz 74dB SPL)
  • Connector: 5-pin XLR (PSU to the microphone) and 3-pin XLR (PSU to preamp)
  • Power: Requires included PSU (Switchable 100v to 240v)
  • Box Dimensions: 5” x 12” x 15”
  • Weight: 8.2lbs
  • Mic W/ Shock Weight: 1lb 11oz
