JDK (Arsenal) Audio R22 Stereo Compressor  From JDK Audio

Dual Channel Compressor

JDK Audio (Arsenal by API)

$1,135.25

Retail:  $1,195.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 24 - 48 hours after order processed.
Payments as low as $25/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

Manufacturer's Description from JDK Audio

The JDK Audio R22 dual channel compressor features two channels of API's patented award winning compressor circuit in a rack mount unit with internal power supply. This is the same compressor circuit originally designed into all ATI Paragon mixing consoles. Each channel includes the patented 'THRUST' switch to protect the sensitive high frequency content of the audio signal even under the most vigorous of compression ratios. The perfect companion to your R20 mic-preamp and R24 EQ, the R22 compressor provides comprehensive easy-to-use control of the audio signal with custom VU metering of both output and gain reduction. The two channels can even be linked for use as a stereo compressor with true RMS power summing of the left and right signals.

Features:

  • Patented THRUST circuit
  • Variable Threshold, Ratio, and Make-up Gain controls
  • Switchable metering of output level and gain reduction
  • Above threshold LED indication
  • Switchable Hard or Soft Knee compression
  • Linkable for stereo operation with true RMS power summing

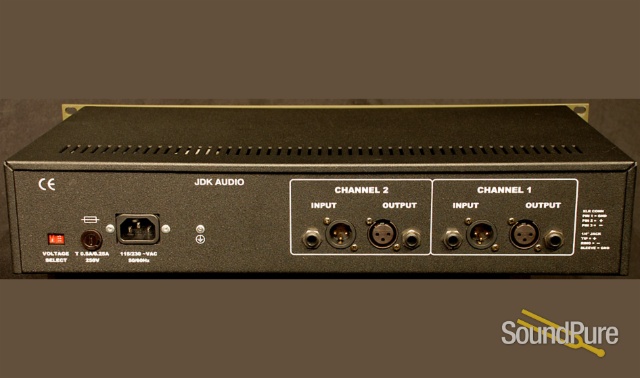

Fully balanced XLR and 1/4" inputs and outputs

JDK Audio (Arsenal by API)

About Manufacturer

JDK Audio is an entirely new brand developed and engineered by API, a company that has been around since the late 1960's. Originally called Arsenal Audio, they have permanently changed the name of this fabulous new range to JDK. And, while API had a stellar range of excellent audio products that are benchmarks of the recording world, we decided to embark on a product line that would allow our engineering team to develop some new ideas that have been floating around our engineering table for years. After all- we're a Technology company - its what drives us - its what inspires us. And some of the new technology available to us is pretty cool stuff - it just doesn't fit anywhere in the API product mix. So JDK audio was born out of desire to expand the creative options we have available at API - no boundaries - no restrictions

Specifications

Inputs: Balanced XLR and 1/4" jack (1/4" normalled priority)

Outputs: Balanced XLR and 1/4" parallel jacks

Power Consumption, Quiescent: 7.81 Watts

Input Impedance: 15K Ohms Balanced

Bandwidth: +/- 0.5 dB, 20 Hz - 50 kHz

THD+N @ 1 kHz, +4 dBu: <0.005%

Maximum Level: +19 dBu

Signal-to-Noise Ratio: -88 dBu (comp in)
                                -92 dBu (bypass)
                                -106 dB

Crosstalk:         <84 dB @ 20 kHz

Stereo Link:     True RMS Power Summing

Meter:   -20 to +3 VU Output Level, 0 to -15 dB Gain Reduction, switchable

Compressor Controls

Threshold Range: -40 dBu to +15 dBu

Ratio Range: 1:1 to 10:1

Makeup Gain Range: 0 dB to +20 dB

Hard or Soft Knee switchable

Flat or Thrust side chain filter switchable

Attack Time: Program and Control Adaptive, 10mSec to 40mSec

Release Time: Program and Control Adaptive, 30mSec to 400mSec

Current: 93 mA, 10.8 VoltAmps

Dimensions

Fits: 2U EIA 19" Rack

Size: 19" X 3.5" X 12" Deep

Size (Boxed for Shipping): 21" X 9" X 15"

Actual Weight: 10.23 lbs

Shipping Weight: 13.74 lbs

(Specifications subject to change without notice)

Downloads

Action

Name

Description

R22 Manual
