IGS Audio NEOX 500-Series Mic Pre/Compressor  From IGS

The NEOX offers a very fast, punchy preamp AND an incredibly responsive VCA compressor in one 500-series slot! Say hello to your new favorite electric guitar and drum preamp in 500 series.

IGS Audio

$645.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Usually ships 6-10 business days after order.
Payments as low as $56/mo.

Want a lower price?
Call or email us!
888-528-9703
sales@soundpure.com

IGS Neox 500

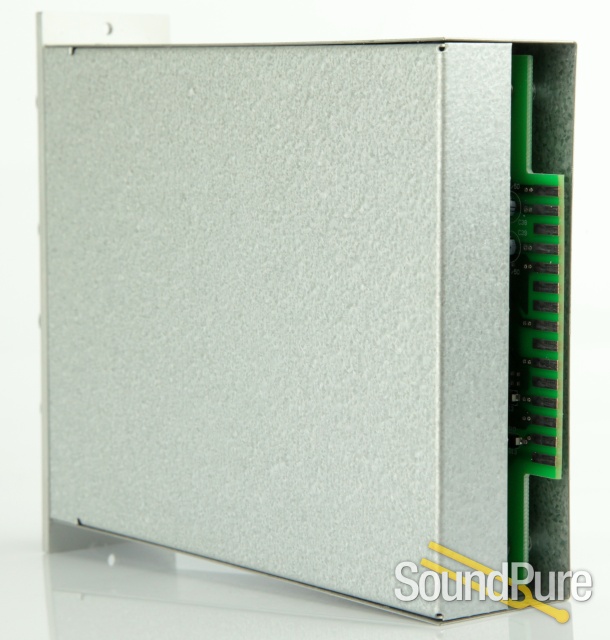

IGS Audio NEOX 500 is a microphone preamplifier and compressor combo fitted into a single 500-series module, that can work with any API 500 Series compatible rack. It was created using simple, transformerless design, providing low noise signal path, excellent dynamic response, and maintenance free usage for years.

  • Signal Chain
    • IGS Audio NEOX 500-Series Mic Pre/Compressor

Manufacturer's Description from IGS

IGS Audio NEOX 500 is a microphone preamplifier and compressor combo fitted into a single 500-series module, that can work with any API 500 Series compatible rack. It was created using advanced transformerless design, providing low noise signal path, excellent dynamic response, and maintenance free usage for years. Despite the extended functionality (for a single 500-series unit) it still offers the ease of use, through the well laid out front panel.

The preamp section features 60dB of adjustable gain boost, phantom power, phase flip and 70 Hz high pass filter. The compressor section is based on the VCA principle, using highly specialized IC, supported by an external circuity, that controls the attack and release times. The envelope of the release time consist of two stages – the amount of gain reduction lowers by 80% within the first 150ms and by further 20% within the next 450ms. This unique feature helps the NEOX 500 to behave like an optical compressor. User has an access to the THRESHOLD level knob, RATIO (1:1 to 100:1 – soft compression to hard limiting), OUTPUT level and the bypass switch.

Comprehensive metering is also available on the front panel. 5-Led VU meter showing the module output level and 5-Led Gain Reduction meter displaying the amount of signal reduction achieved by the VCA compressor.


IGS Audio

About Manufacturer

IGS Audio is now one the most desired studio equipment brands in Poland and it is continuously expanding internationally. The original IGS Audio products qualify as pretendants to no.1. Clones of other brands produced by Igs Audio are accurate and excellent.

IGS Audio is all about happiness in success. IGS Audio offers 3 years warranty for all products.

IGS Studio has been operational since 1997. The IGS Audio brand was created in 2003.

Specifications

  • API 500 standard module,
  • Input impedance: 10k Ohm,
  • Output impedance: 50 Ohm,
  • Maximum input level: +4 dBu,
  • Maximum output level: +20 dBu (into 600 ohm load),
  • Total Harmonic Distortion: 0,009% (1 kHz),
  • Frequency response: 20 Hz to 20 kHz (±0,1 dB),
  • Preamplifier gain: 16 to 60 dB (44 dB of smooth adjustment range),
  • Maximum gain reduction: 24 dB,
  • Ratio range: 1:1 to 100:1,
  • Make-up gain range: 22 dB,
  • Attack time: 5 ms,
  • Release time: 150 ms (80%) + 450 ms (20%),
  • HPF: 70 Hz (-3dB, 6dB/oct),
  • Signal to noise ratio: >93 dBA,
  • Dynamic range: >93 dBA,
  • Power consumption: 2,9 W (180 mA per slot),
  • Dimensions: 132x37x158mm


Downloads

Action

Name

Description

Owner's Manual

IGS Audio Neox 500 Owner's Manual
