From Genelec
The AD9200A 8-Channel Analog to Digital Converter from Genelec is a rackmount converter that translates an analog audio input signal into a digital output signal. This allows you to use the 7200 series DSP subwoofers with analog signal sources.

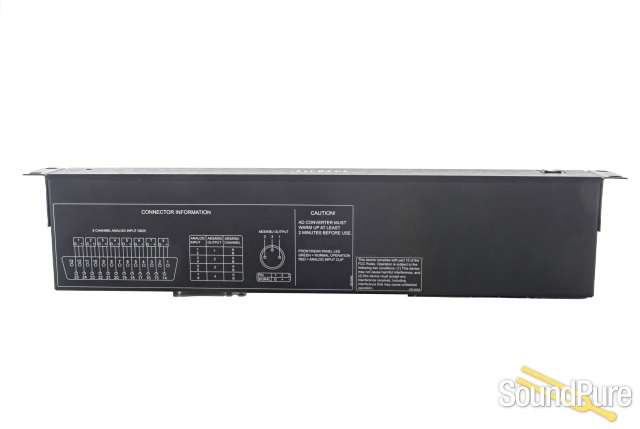

The unit has a 25-pin DB25 connector that accepts up to 8 channels of analog audio. The connector is wired with a standard Tascam/ProTools pinout for wide compatibility. The converter has 4 XLR output connectors, each of which carries 2 channels of AES/EBU digital audio. The digital audio is in AES3 format with a 24-bit word length and a 192kHz sample rate to deliver professional-quality results, consistent with the audio from Genelec's 8200 series DSP products. The converter operates via an external 12VDC power supply.
- Converts an analog audio input signal into a digital output signal. This allows you to use the 7200 series DSP subwoofers with analog signal sources
- The 1RU chassis fits into any standard 19" equipment rack
- The 25-pin DB25 input connector accepts up to 8 channels of analog audio. The connector is wired with a standard Tascam/ProTools pinout for wide compatibility
- There are 4 XLR output connectors, each of which carries 2 channels of AES/EBU digital audio. The digital audio is in AES3 format with a 24-bit word length and a 192kHz sample rate to deliver professional-quality results, consistent with the audio from Genelec's 8200 series DSP products
- Operates via an external 12VDC power supply
