Flock Audio PATCH XT
Also in this recording Flock Audio PATCH XT
Flock Audio CEO & Founder Darren Nakonechny shows a brief overview of the up-coming Flock Audio PATCH XT System's Hardware from front to back.
From Flock Audio
The PATCH LT System was designed with the up & coming producer or budget studio in mind. Using the same Flock Audio Patented Matrix Technology as our Flagship Model "PATCH", LT allows any producer or studio to add the worlds most advanced digitally controlled, analog routing system into their studio or post production suite without compromise.
Features
♦ 32 Point Connections (16 Inputs / 16 Outputs)
♦ DB-25/D-SUB Tascam Standard Pinout Format Connectors
♦ 16 Independent Channels of 48V Phantom Power

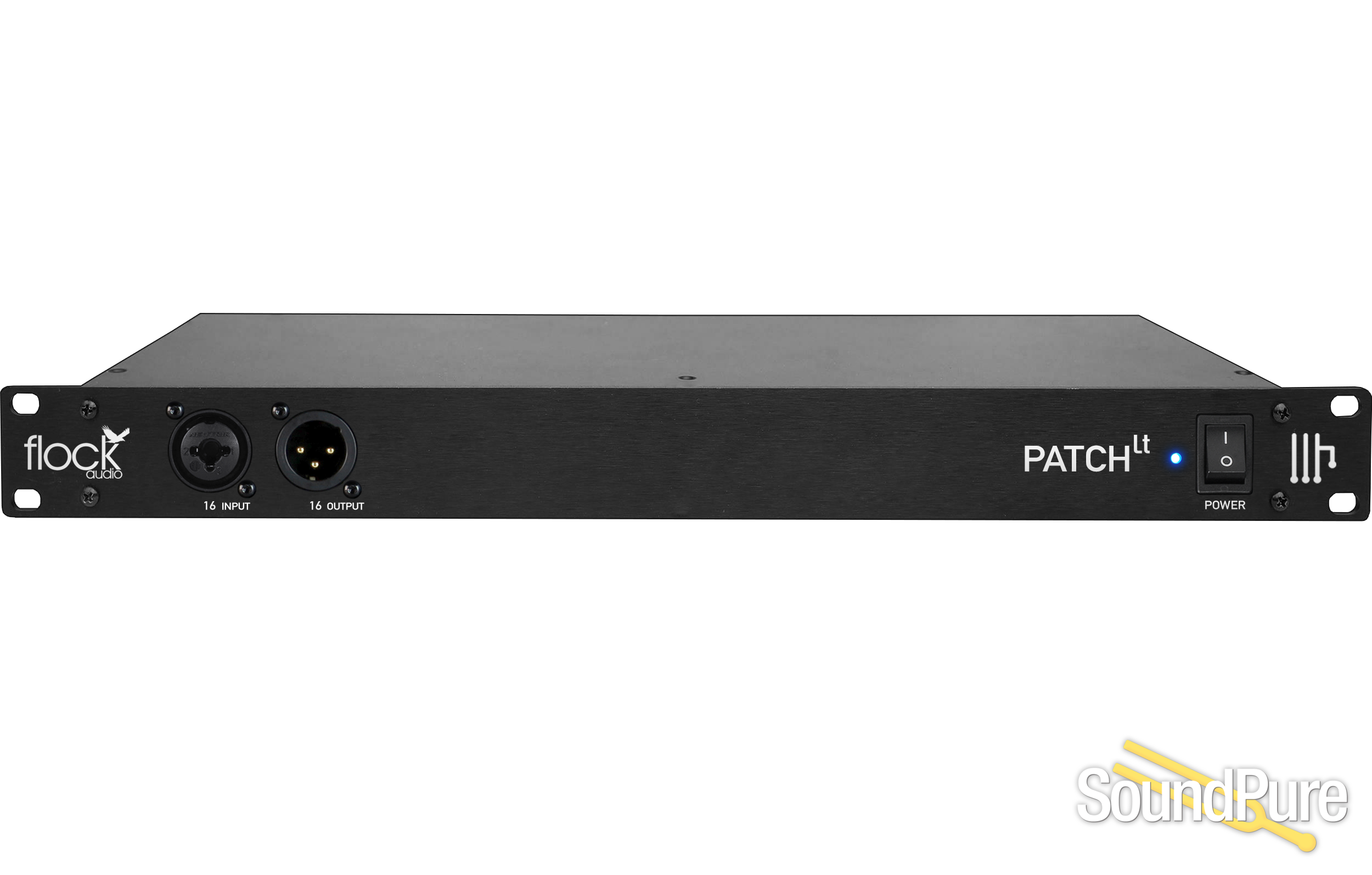

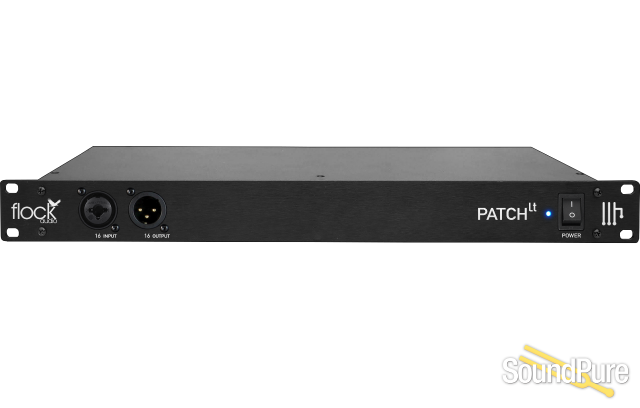

♦ Front Panel - 1 Combo TRS/XLR Input & 1 XLR Output

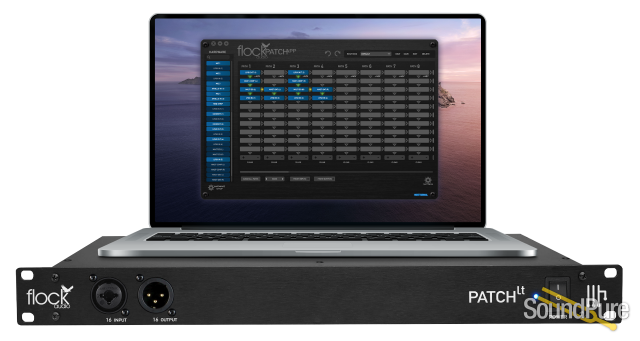

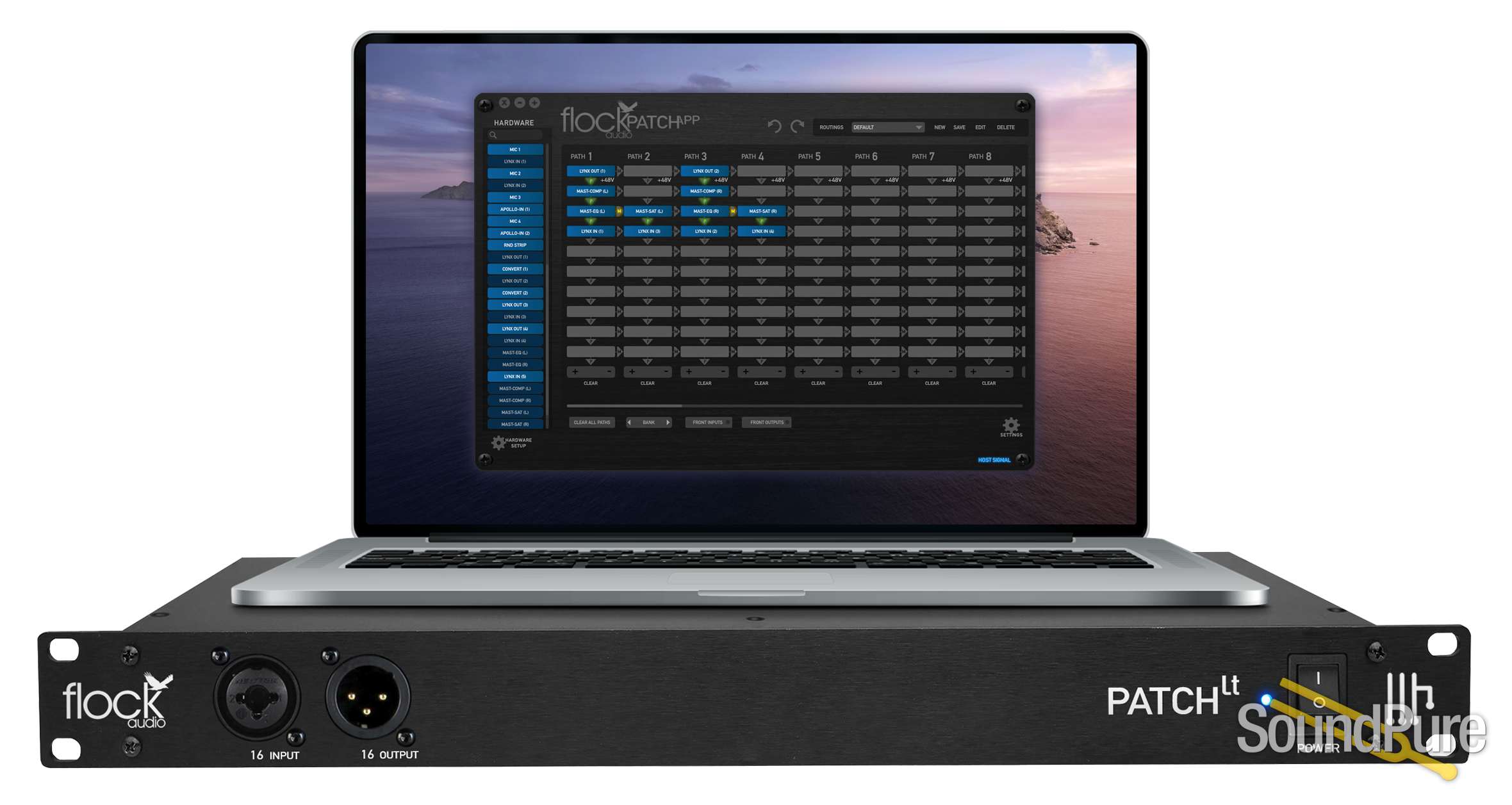

♦ PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon)
♦ Create, Store & Recall Routings in Seconds
♦ Create Complex Multing Combinations w/ No Impedance Issues
♦ No AD/DA Conversion, 100% Transparent Analog Signal Path
♦ Patented Flock Audio Matrix Technology (Same as PATCH)
♦ Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
In the Box:
PATCH - (1U Hardware Rack Unit) Dimensions: 19" (W) x 1.75" (H) x 8" (D)
USB 2.0 - (10 ft) Host Control Cable (USB-A to USB-B)
Power Supply - 24VDC (110V or 220V) Power Supply
Power IEC Cable - (Shipped with IEC Plug based upon customer region)
6 Step Quick Start Setup Guide
Hardware Index Setup Template
Details
- Computer Connectivity
- USB 2.0
- Compatibility
- OSX 10.7 Lion & Newer / Windows 7 & Newer
- Software
- PATCH APP v2.0 (Online Download) - *iOS iPad Coming Soon*
- Chassis
- 1U Rackmount (8" Deep)
- Patch Point Connections
- 32 Total - 16 Inputs / 16 Outputs (Expandable with all PATCH Models)
- 48v Phantom Power
- 16 Channels Independently Controllable
- Front Connectors
- 1x Combo TRS/XLR Inputs & 1x XLR Outputs
- D/A or A/D Conversion
- No AD/DA Conversion, 100% Analog, Sonically Transparent Audio Path
- Routing System
- Patended Flock Audio Matrix Technology
- Analog Connections

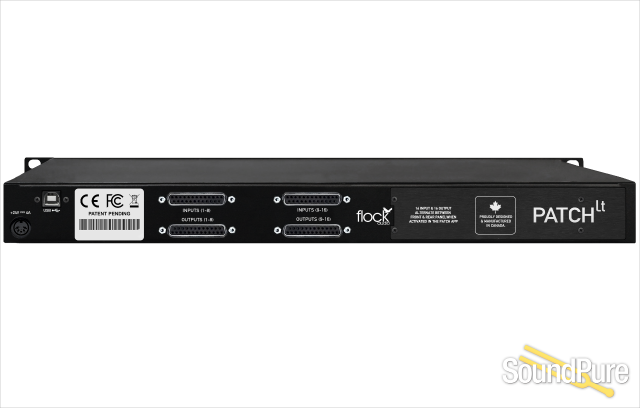

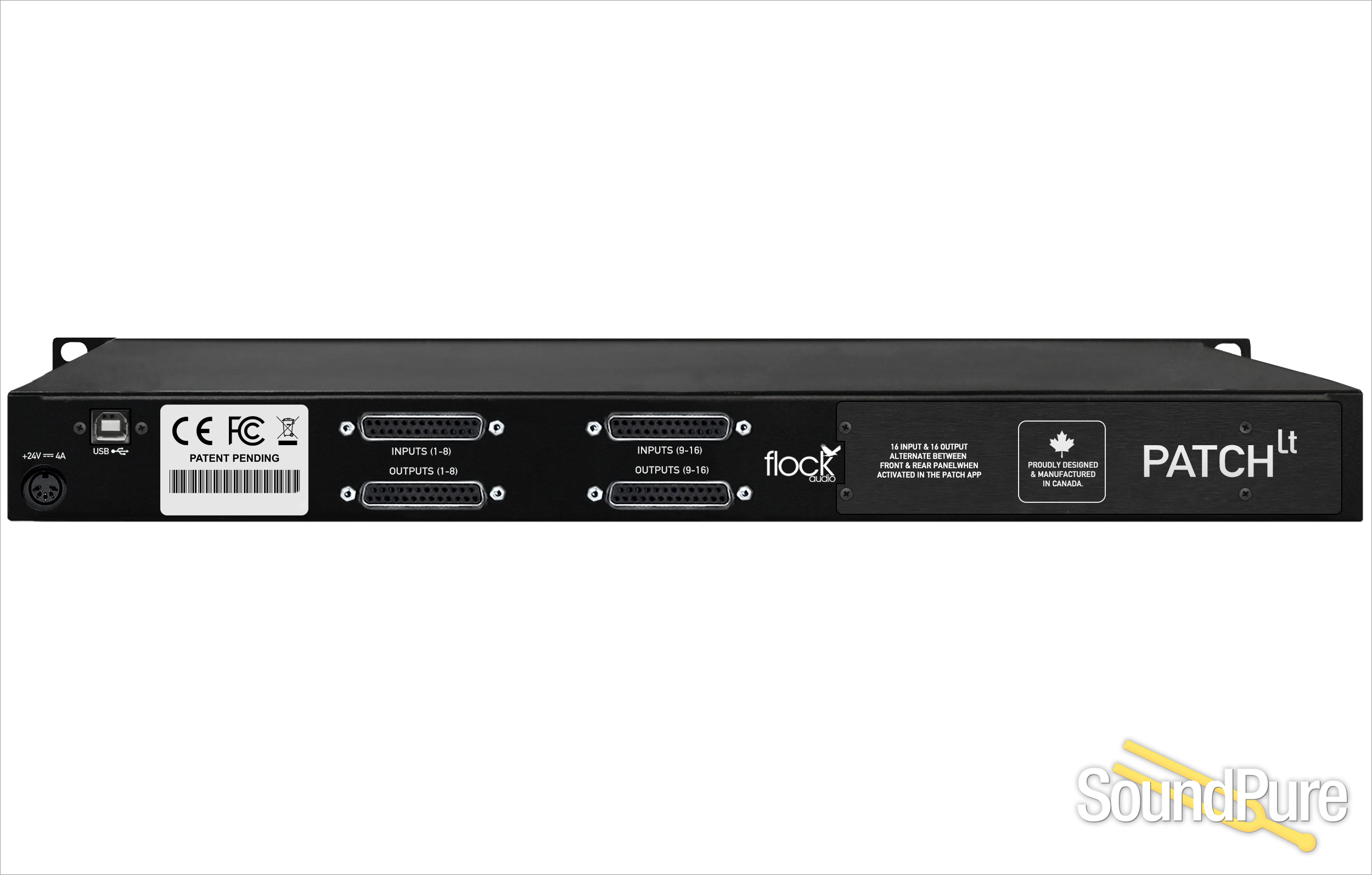

- DB-25/D-SUB Female Connectors (Standard Tascam Wiring Pinout)
- Power Supply
- External 24 VDC Power Supply w/ 5 Pin Threaded Locking Connector
- Warranty
- 1 Year Total System + Included Cables Manufacturers Warranty
- Unit Dimensions
- 1U - 1.75”(H) x 19” (L) x 8” (D) - 15 lbs
Manuals & documents
- Connecting PATCH with Traditional Patchbay Diagram Configuring PATCH with a traditional patchbay Download
- Multi-Unit Setup Diagram Connecting multiple PATCH models for expanded I/O Download
- PATCH & LIAISON SETUP DIAGRAM Mixing and Mastering Setup Download
- PATCH LT - HARDWARE SETUP TEMPLATE You can use this template to write in the physical connections while you plan or set up your system. Download
- Quick Setup Diagram Setting up your PATCH model for the first time Download
- Single Patch Connection Diagram Connecting PATCH Diagram Download
