From Eventide
Your Secret Sauce

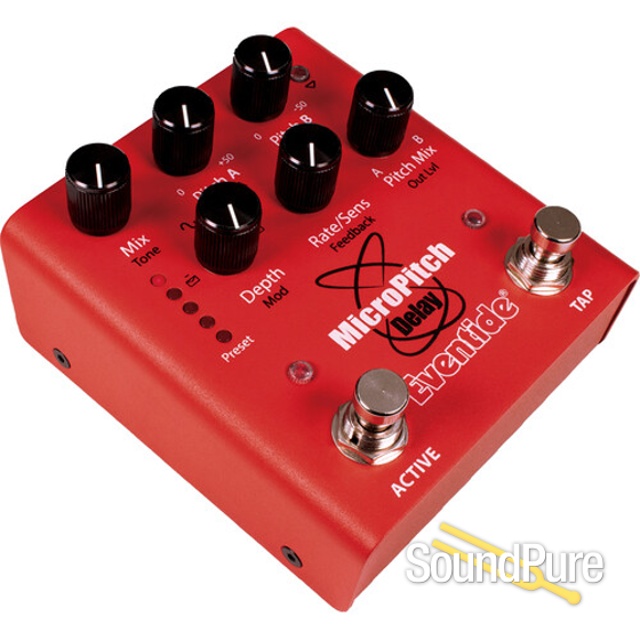

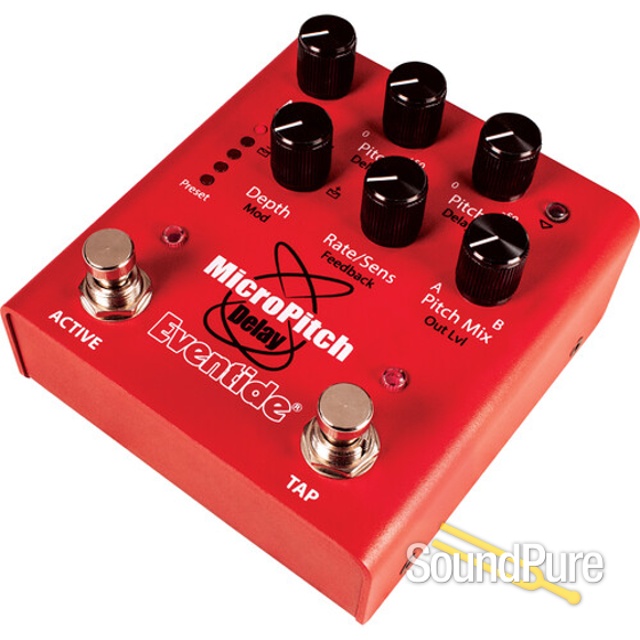

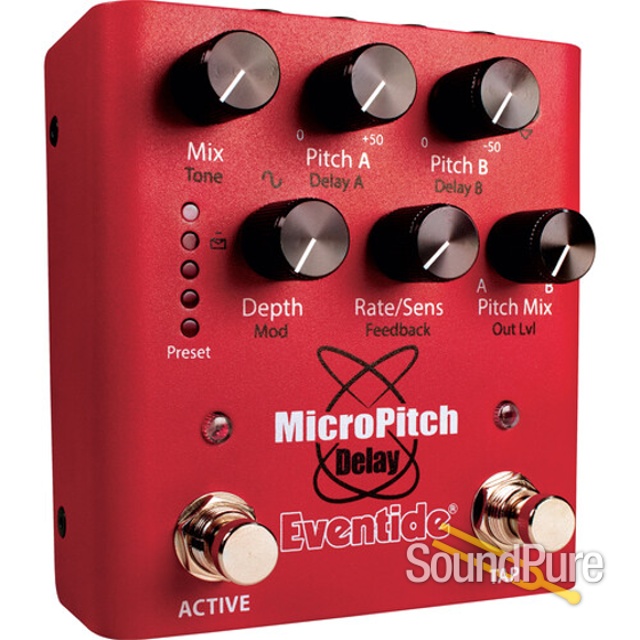

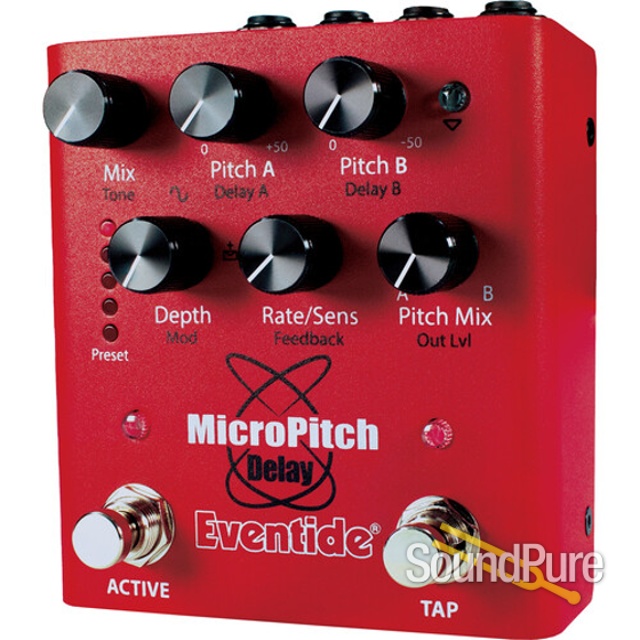

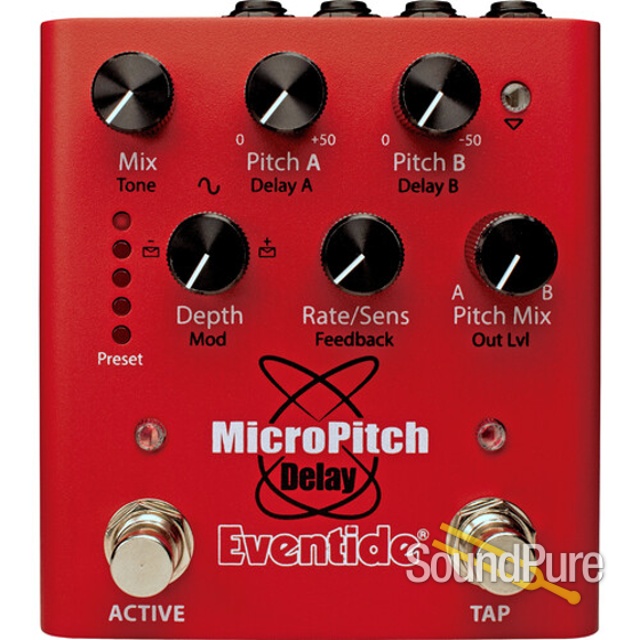

Savor the secret sauce simmered into countless hit records with the MicroPitch Delay effects pedal. By utilizing subtle pitch shifts to create a rich stereo spread, MicroPitch Delay makes anything you cook up sonically delectable. This pedal is the key ingredient for serving up flavorful tones: Instantly harness soaring leads that jump out of the mix, add distinct lushness to a compelling clean passage and get your fill of vibey modulation that’s sure to sweeten any pot with the push of a button. Sample a bite of our newly baked up Positive and Negative Envelope modulation sources and you’ll be sure to come back for seconds; and major and minor thirds. MicroPitch Delay adds unparalleled dimension to any source; it’s not just a guitar pedal — Use it to thicken vocals, keyboards, drums, strings, brass, winds and more.
Features
-
Experience the latest incarnation of an iconic effect that originated with the legendary H910 and H949 Harmonizers, and later popularized with the H3000.
-
Dual pitch-shifted delay with fine resolution de-tuning and modulation on tap
-
Achieve subtle tone fattening, lush stereo widening, rich detuned delays, thick modulation, and tempo-synced special effects.
-
New positive envelope and negative envelope modulation sources
-
Five presets loaded at your feet with dozens more available with Eventide Device Manager (EDM) software.
-
Dual-action Active Footswitch is latching or momentary.
-
Rear panel Guitar/Line Level switch for matching levels with guitar, synths, FX loop or DAW interface
-
Map any combination of parameters to an Expression Pedal.
-
Use a single Aux switch to engage FLEX which doubles the pitches or a triple Aux switch for easy preset changing (up/down/load).
-
MIDI capability over TRS (use with a MIDI to TRS cable or converter box) or USB
-
Multiple Bypass options: Buffered, Relay, DSP+FX or Kill dry
-
Catch-up mode helps dial in your sound when toggling between presets/parameters
-
Eventide Device Manager PC or Mac application for software updates, system settings and creating/saving presets

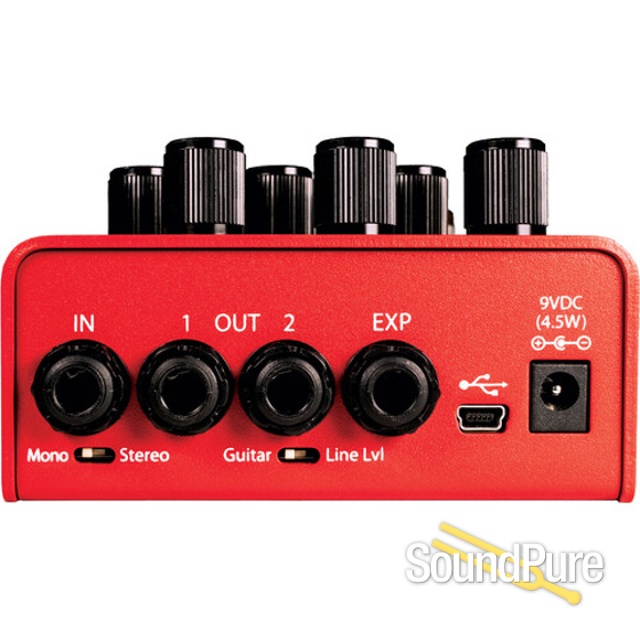

- Connectors
-
- Input
- 1/4″ TRS / Mono = Tip, Stereo = Tip & Ring
- Out 1
- 1/4″ TS Mono / Mono Output
- Out 2
- 1/4″ TS Mono / Stereo Output
- EXP
- 1/4″ TRS / Expression pedal, Aux Switch or MIDI I/O
- Mono/Stereo Switch
- Sets Input to Mono (Tip) or Stereo (Tip + Ring)
- Guitar/Line Level Switch
- Optimizes internal gain structure
- Mini USB
- Software updates, MIDI I/O
- DC Input Jack
- 5.5mm / 2.1mm plug / Center Negative (-)
- Analogue I/O
-
- Input Impedance
- 700k ohms Mono, 990k ohms Stereo
- Max Input, Guitar
- +8dBu
- Max Input, Line
- +14dBu
- Output Impedance
- 220 ohms
- Recommended Load Impedance
- 10k ohms
- Specifications
-
- Power
- Dimensions (Product)
- 4″ W x 4.25″ D x 1.68″ H / 102 mm x 108 mm x 43 mm
- Weight (Product)
- 1.06 lb / 0.48 kg
- Dimensions (Package)
- 7.7″ W x 4.75″ D x 2.8″ H / 178 mm x 121 mm x 71 mm
- Weight (Package)
- 1.68 lb / .77 kg
