From Dangerous Music

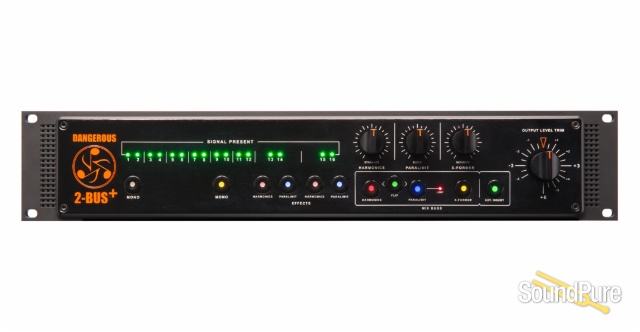

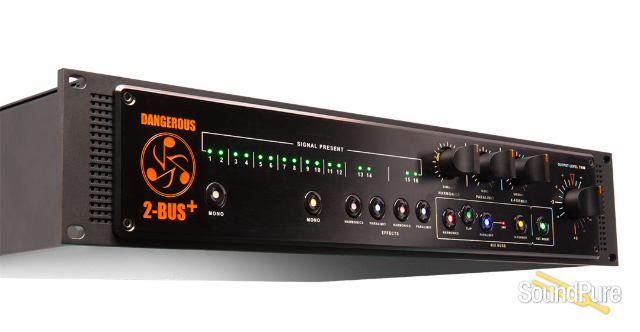

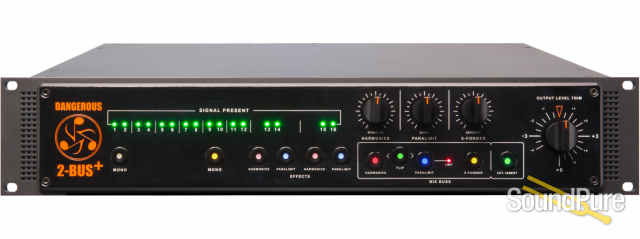

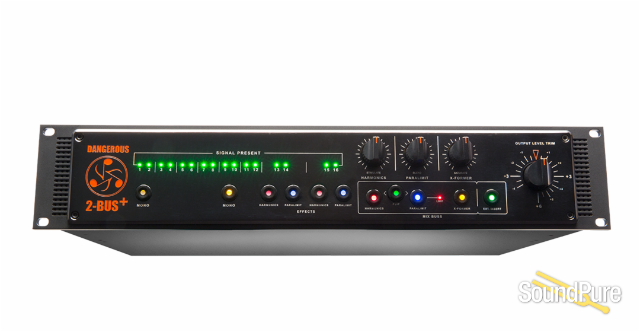

Dangerous Music invented the stand-alone analog summing mixer with the ground-breaking 2-BUS back in 1999, and now we’re redefining mixing yet again with the brand new 2-BUS+. With a redesigned analog summing circuit that exceeds previous specifications, the 2-BUS+ delivers unsurpassed imaging, dimensionality, punch and headroom. While the 2-BUS+ active summing sounds incredible on its own, it now includes three innovative custom color circuits that provide a vast array of flexibly routed tonal options. Harmonics is a euphoric odd- and even-order distortion generator; Paralimit is a hard-hitting FET-style limiter; and X-Former is a pair of Cinemag output transformers with an exclusive core-overdrive circuit. With it’s elegantly straightforward buttons and knobs, the 2-BUS+ puts endless combinations of robust analog sound at your fingertips. Meticulously developed by our hands-on team and brilliantly designed by the legendary Chris Muth, the 2-BUS+ embodies our dedication to sacrificing nothing in order to deliver the very best analog products available.

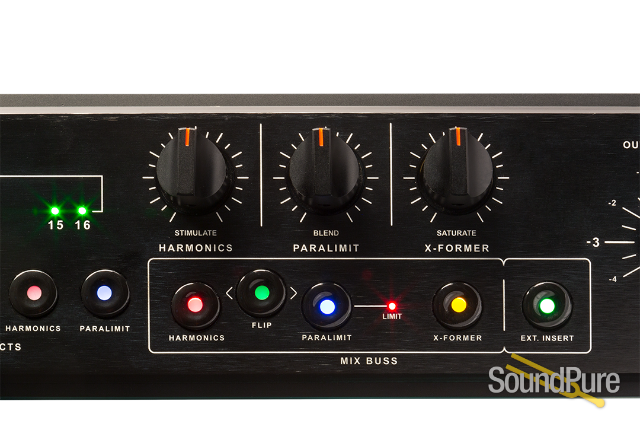

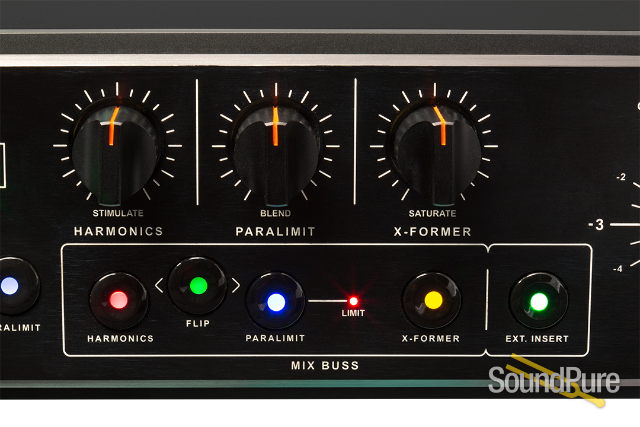

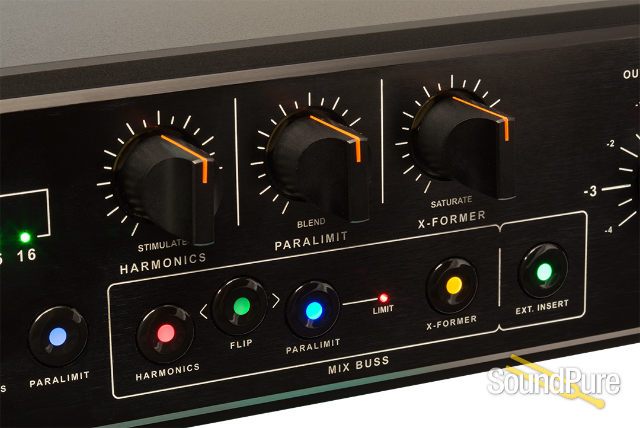

When it comes to adding analog color to your mixes, the design team at Dangerous has developed three totally original all-analog circuits: Harmonics,Paralimit and X-Former. Because these circuits are physically built into the 2-BUS+, you get a versatile selection of analog colors while never leaving the lush, open analog mixing environment.
Harmonics
Add the euphoric sound of an analog circuit on the edge of distortion to your whole mix, or to individual channel pairs. Carefully tuned to generate the perfect mixture of odd- and even-order harmonics, this effect runs parallel with the unprocessed signal so you can dial in just the right amount of tone. The top end subtly simmers, the bass gently growls, and the whole sonic image warms up in ways that only a real analog circuit can offer.
Paralimit
This is a FET Limiter set to stun. An original Chris Muth design inspired by the famous 1176 Limiting Amplifier “all buttons in” trick, you get an infinite ratio setting flooded with analog top-end. With its blend knob and assignment buttons,Paralimitgives you instant parallel compression, in stereo, in the analog domain, on the full mix or on a stereo stem – a flexible set-up that otherwise requires complex patching, careful level matching and significant amounts of analog outboard gear.
X-former
Last in line are a pair of customized Cinemag transformers with Chris Muth’s totally unique approach to driving the core. Switch them in for the solid, punchy sound that makes older analog consoles so loved, then turn up the X-Former knob to drive the core of the transformer in a way that’s totally unique to the 2-BUS+. X-former is all about dialing in just the right amount of classic analog console color whenever it’s called for.
Features
♦ 16 channels of the world’s best active analog summing, that even surpasses the original
♦ Three unique analog color circuits: Harmonics, Paralimit and X-Former
♦ Effortless routing and blending of analog color circuits via elegant user interface
♦ Switchable stereo analog insert for easy outboard gear integration
♦ Massive sounds, sacrificing no detail
♦ Crystal clear sonic imaging and three-dimensionality
♦ Endless headroom for modern digital signal levels
♦ Stepped output gain control for exact recalls

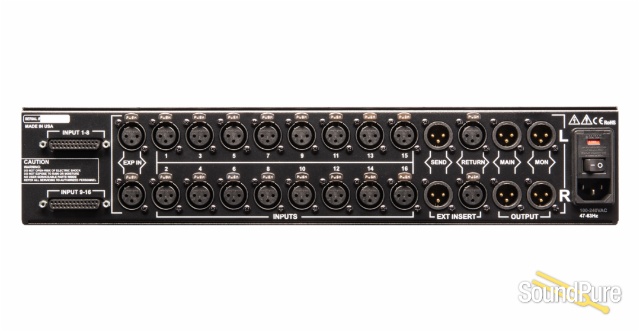

♦ Both XLR and D-Sub input connectivity
♦ Audiophile-grade components throughout
♦ Hand-assembled in the USA
Max Input Level > +28 dBu
THD+N @+4dBu: 1KHz, unweighted, 22Hz to 22kHz < 0.0048%
THD+N @+22dBu: 1KHz, unweighted, 22Hz to 22kHz < 0.0026%
IMD @ +4dBu: < 0.0038%
IMD @ +22dBu: < 0.0021%
Crosstalk rejection: > 108dBu @ 1KHz
Noise at Unity Gain: 22Hz to 22KHz: < -86dBu
Noise at Nominal Mix Setting: 22Hz to 22KHz: < -91dBu
Frequency Response: Flat within 0.1dB from 10Hz -50kHz
Input Impedance: 25K Ohms Balanced
Output Impedance: 50 Ohms Balanced
Replacement Fuses: AMERICAS: 90-120VAC 2 Amp Slo-Blo fuse. EUROPE: 200-260VAC 1 Amp Slo-Blo fuse
Note: Dangerous Music, Inc. publishes actual measured specifications, not theoretical numbers derived from data sheets published by chip manufacturers.
