Sound Pure's Take
Like all things from the mind of Dave Hill, the Ibis has all the standard features you could ever need PLUS the ability to add a little magic. The Ibis starts out as an incredibly detailed 4-band fully parametric EQ with a clean and musical tone. Everything from a wider Q for a more wide-stroke manipulations to very narrow, laser-focused carving, the Ibis delivers what you want for tracking, mix buss and mastering.
Where things get interesting: you have the ability to add variable color to one frequency band, or ALL bands. Want to take some harshness out of a vocal? Add the color in the upper-mids to ease off some edge. Want to add thick texture to the low-end of your EDM mix? Throw some color on the low-band. The ability of this EQ to control the color on any band, all bands, or run it clean, opens up a tremendous amount of flexibility for handfuls of applications and nearly any genre.
From Crane Song
(Description of standard unit below. This listing is the fully stepped mastering version).

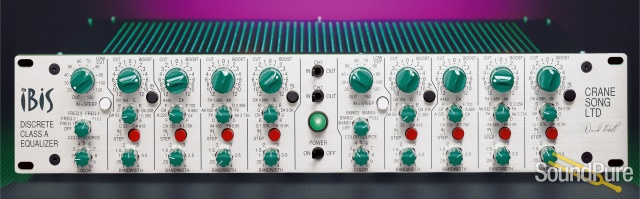

IBIS is an analog equalizer that boldly takes equalization to a new level of musicality. Each of its four bands features switch-selectable frequencies centered on and covering musical-step intervals from 32-Hz "C" to 22.35-kHz "F." Its four overlapping bands are labeled with note names and frequency allowing for the first time a "translation" between musician-speak and engineer-jargon. The bandwidth control has similar notation with adjustment from 0.2 octave to 4 octaves per band and a boost / cut range of 12 dB.
The low-cut filter is switch selectable from 20-Hz to 150-Hz with slopes of either 12-dB or 24-dB per octave. Like most Crane Song products, IBIS utilizes discrete class-A circuitry and features a truly unique and adjustable "color" function that can be applied to either the entire audio path or to any individual frequency band.
- Input
- Floating, balanced. Maximum input is +25 dBm. The connectors are XLR.
- Output
- Floating, balanced. Maximum output is +25 dBm. The connectors are XLR.
- Input and Output Connections
- Pin 2 is Sig + , Pin 3 is Sig- , Pin 1 is GND
- Power
- 100, 120, 230,240 volt; 50/60 Hz; 55 watts MDL .6A Fuse for 100V and 120V MDL .3A Fuse for 230V and 240V
- Noise
- Measured with the eq set flat and the bandwith controls at max -85dbm
- Clipping
- +25 dbm
- Distortion
- With the eq set flat measured at +20 dbm 0.001%
- Pilot Lamp
- # 327
- Shipping Weight
- 19 lbs. (8.6 kg)
- Depth Behind Panel
- 12.5 inches (31.75 cm) plus cabling
- Panel Height
- 2 rack spaces
- Frequencies
- There are 24 frequencies per band for a total of 96 frequencies with the bands overlapping. They are stepped on both the mastering and standard units.
- Boost-Cut
- The standard equalizer has a range to plus or minus 12 db on each band. The Mastering version has a range of plus or minus 6 db This is stepped 0.5 db steps to 5 db and a 1 db step to 6db on the mastering version.
- Bandwith
- Bandwidth in octaves is measured at full boost. The maximum is 4 octaves and a minimum is 0.2 octaves. This is a Q range from 0.15 to 17. On the mastering unit this is stepped with 12 steps
