From Black Lion Audio
The analog to digital converter (ADC) is a vital component in any recording or broadcast studio.
Limitations of the ADC can compromise the performance of the whole system. Inter-modulation
distortion (often referred to as IM or IMD), harmonic distortion (THD), and frequency or phase
response anomalies, may manifest themselves as an overall deterioration in the perceived sound
quality of the system. Fortunately, your choice of a Black Lion Audio ADC will help eliminate
these problems, offering you unmatched product performance and reliability.
For years Black Lion Audio has researched the root causes of audio signal degradation during the
conversion process, and we strive diligently to offer our findings in the finest quality converters
available.

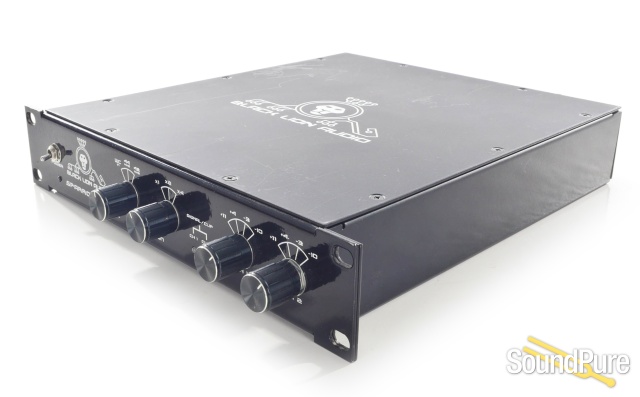

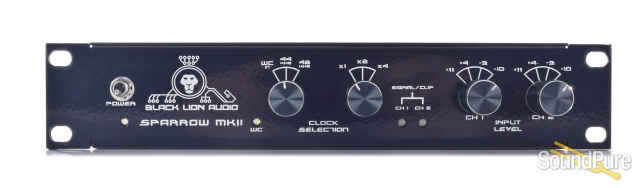

The BLA Sparrow MKII ADC is a stereo analog to digital converter offering four levels of input trim
adjustment. Signal present/clip LEDs allow proper input trim adjustment for a wide variety of

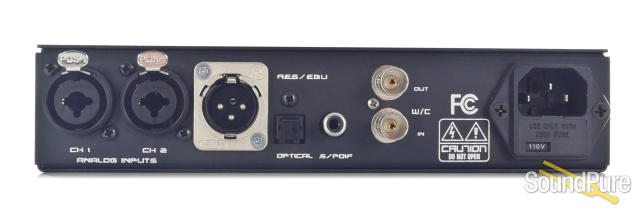

sources. Digital audio outputs are in industry standard S/PDIF and AES/EBU formats. A word
clock input and output are offered for synchronization to other audio sources and destinations in
the studio.
Serial Number: 1834
THD: < 0.001% (20kHz BW, 20-20kHz, @-10dBFS)
IMD: < 0.002% SMPTE (1:1) 60Hz + 2k~20kHz typical
Crosstalk : < 100dB (@20kHz all gain settings)
Clipping: > +24dBu (gain full CCW)
Clock Input level : 2.4Vpp ~ 5.5Vpp
Clock Output: Square Wave, @5Vpp, 75Ohms Output Impedance
Frequency Response: (@ 192kHz Sample Rate) 19Hz ~ 87kHz
Size: 10.25” x 8” x 1.75”
Weight: 5lbs
Shipping Weight: 6.5lbs
Power Consumption: 14W
Recommended operating temperature: 0 ~ 40°C
Storage Temperature: -25 ~ 50°C
Input Impedance: 10k Ohms
Output Noise: -120dBFS (-122dBFS for the “White Sparrow”) typical
Meter Type: Peak Reading
