Item selected is discontinued (details below). Related products available now:

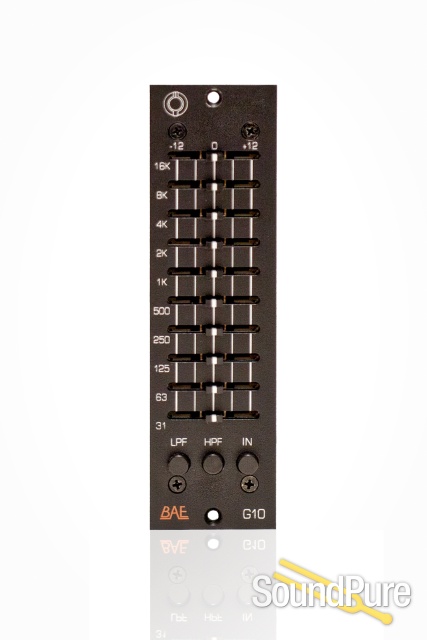

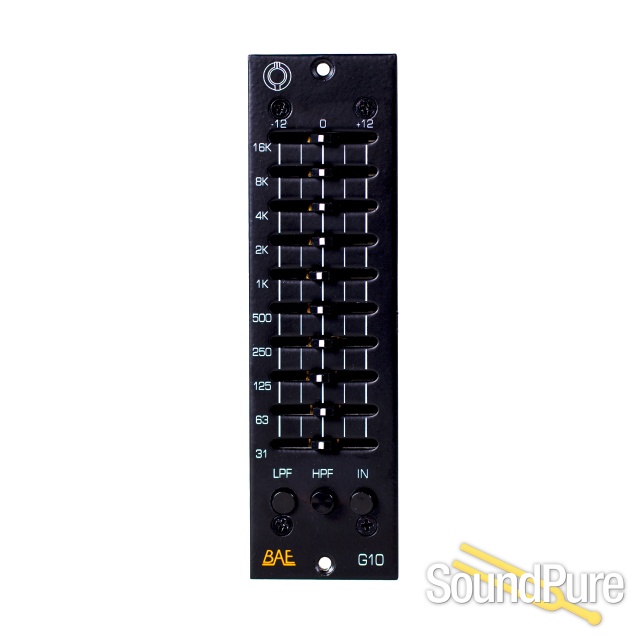

BAE G10 500 series Graphic EQ  From BAE

This is THE classic 10 band graphic EQ with added high and low pass filters. Hand built in California and brought to you by BAE!

BAE

Manufacturer's Description from BAE

The G10 10-Band Equalizer with Balanced Input and Output and Hi/Low-Pass Filters Is the Ultimate Hands-On Sound Shaping Tool for Tracking, Mixing, or Mastering

The G10 combines a punchy, transformer-based signal path with the versatile 10-band graphic EQ configuration and a 2520 style op-amp — making it ideal for tweaking drum or guitar sounds, or even processing an entire mix.

With 10 carefully selected bands offering up to 12 dB of boost or cut on tap, the G10 offers a level of tone sculpting that can help any audio sit perfectly in the mix. The easy-to-use slider-based interface helps users intuitively visualize the EQ curves they are applying. Switchable high-pass and low-pass filters, tuned at 80 Hz and 12 kHz respectively, help make the G10 a truly complete sound shaping solution.

The BAE Audio G10 implements an op-amp like those used in well-loved ‘70s American boards. Unlike some other 10-band equalizers presently on the market, the G10 is fully transformer balanced on the input and output. The G10 also features a CineMag transformer balanced in and out that imbues any audio passing through it with a unique tonal character.

  • Complies with 500 Series Specification for mechanical and electrical interface
  • +/- 12dB Boost/Cut @ 31Hz, 63Hz,125Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz, 16KHz
  • Individually Selectable LPF @ 12KHz, and HPF @ 80Hz (approx. 6 and 10 dB per octave, respectively)
  • EQ In/Out Select Switch (bypasses EQ and Filters)
  • Fully enclosed ventilated steel enclosure
  • CineMag transformer balanced in/out
  • Top quality components used throughout
BAE

About Manufacturer

BAE are manufacturers of high end microphone preamp/equalizers faithful to vintage designs of the seventies and before. With a penchant for high quality transformers like Carnhill (St lves) and Jensen, everything is as close to the vintage philosophy as possible. Not only that but we insist everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.

Specifications

Noise:
Better than -90dB (EQ IN, 1KHz @ 0dBu, A-weighted)

THD+N:
0.0036% (EQ IN, 1KHz @ 0dBu, A-weighted)

Input Signal Before Clip:
+28dBu (1KHz)

Power Supply:
+/- 16VDC @ 45mA per Rail

Weight
1.75 LBS
