BAE 1073 Preamp/EQ Rackmount without PSU

Rack for BAE 1073 module, power supply not included

$3,235.00 or about $135/mo with Affirm Prequalify →

Usually ships 6–10 business days after order.

Talk to an Expert 888-528-9703

Have a question about this item? Email us →

Free 3-Year Parts & Labor Warranty (details)
Talk to an Expert — Sound Pure engineers, not phone-bank reps
Sound Pure Financing — 0% APR options via Affirm

From BAE

The BAE 1073 is as authentic as you can get to the original, featuring the same St Ives (Carnhill) transformers as the vintage modules, Elma switches and Canford wire.

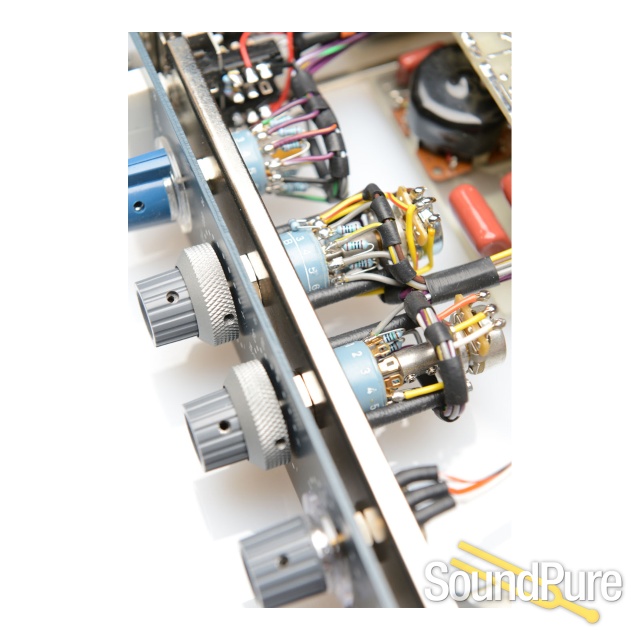

The BAE 1073 looks identical to the original vintage module and will happily retrofit in vintage Neve 80 Series consoles because the entire product is engineered in exactly the same way as the originals: the same chassis construction, connectors, printed circuit board layouts, hand-wired looms, and circuitry.

High Frequency: +/-16dB fixed frequency shelving at 12kHz
Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
Mid Range: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz

Frequency Response

10Hz to -3dB at 55kHz

3 Band Equaliser

HF: +/-16dB fixed frequency shelving at 12kHz

LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz

MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz

High Pass Filter

50Hz, 80Hz, 160Hz & 300Hz

Mic Input Impedance

≈1200/300 ohms

Line Input Impedance

10k ohms

DI Input Impedance

≈150k ohms

Output Impedance

35 ohms

Common Mode Rejection Ratio

100dB min @ 60Hz

Maximum Output Level

+27.4 dBu @ 600Ω

Power Requirements

115/230 VAC, 28W

Gain dB

0 to 80 dB

Equivalent Input Noise

-110 dBu; Unweighted 300kHz Bandwidth

Weight (Single/Dual)

6 LBS / 2.72 KG

10 LBS / 4.54 KG

Dimensions in Inches (Module/Rackmount)

45 mm W x 8.75 inches H x 10.5 inches D

19W x 1.75L x 9D
