From Audinate

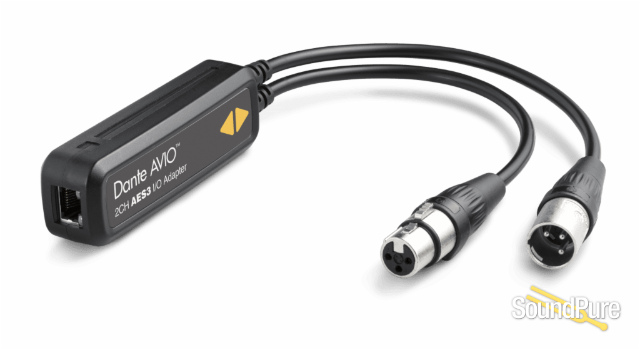

The Dante AVIO AES3/EBU Adapter supports 2 x 2 channels, with highquality XLR input and output connectorsand built-in asynchronous sample rate conversion. Use the AES3 Dante AVIO Adapters to add Dante networking to amplifiers, speaker processors, mixing consoles, video systems and more. Cost effective, compact and built for the road, the Dante AVIO family of adapters bring the modern network connectivity that every audio pro needs in their toolbox.
PLUG & PLAY
The Dante AVIO AES3 adapter is a complete, high performance Dante device, delivering all the automation and ease of use that have made Dante the most popular audio networking solution worldwide. The Dante AVIO AES3 adapter is automatically discovered and ready to use when connected, and no separate power supplies are required – just use a common PoE (Power over Ethernet) switch and any Dante AVIO adapter is ready to go. Network all your AES3 / EBUequipped audio gear easily and cost-effectively with Dante AVIO
AES3
Interface with SDI video systems using AES3 audio.
Put your AES3-compatible amplifiers and powered
speakers on your Dante audio network.
Connect AES3-compatible DSPs to a Dante network
Connect AES3-compatible microphone preamplifiers
to a Dante network
FEATURES
Plug & play operation
Built for the road
Sample rates up to 96 kHz
16, 24 and 32-bit audio support
Synchronous sample rate conversion
Excellent dynamic range, SNR and THD performance
Configurable gain / attenuation
Dante Audio over IP and AES67 RTP transport formats
Power over Ethernet (PoE) support
Dante Domain Manager ready
BUILT FOR THE ROAD
We’ve made all Dante AVIO adapters road-ready and tour-tough. Sonically welded ABS enclosures and quality hardware are used throughout, while cable assemblies are stress-tested to ensure reliable operation under grueling conditions. Toss them in your toolbox, show after show.
ALL DANTE
Dante AVIO adapters are all fully functional Dante interfaces, with all the features you’d expect from Dante audio networking. Each one delivers bit-perfect audio reproduction, super-low latency and sample-accurate synchronization across the entire network. All Dante devices automatically discover one another, and the entire system is managed by our easy-to-use Dante Controller software on any connected PC or Mac. Most importantly, every Dante device can connect to every other Dante device – no questions asked. All Dante AVIO adapters are fully compatible with Dante Domain Manager (DDM) for IT-level security and management, while AES67 is supported for connection to non-Dante networks.
COST-EFFECTIVE
We’ve worked hard to make the Dante AVIO family of products a cost-effective addition to any system or piece of gear, so that everyone can enjoy the benefits of Dante. Audio networking has never been easier to or more affordable, no matter how you choose to use it.
Audio channels 2 in, 2 out
Signal to Noise Ratio > 135dB
Connectors RJ45, 1 XLR-M, 1 XLR-F
Power Class 1 802.3af PoE
Asynchronous Sample Rate Conversion Yes
Sample Rates 44.1, 48, 96 kHz
Bit Depth 24
Dante Device Latency 1, 2, or 5ms (configurable using Dante Controller)
Impedance 110 Ohm balanced
Network Transport Dante Audio over IP, AES67 RTP
Part Number ADP-AES3-AU-2X2
